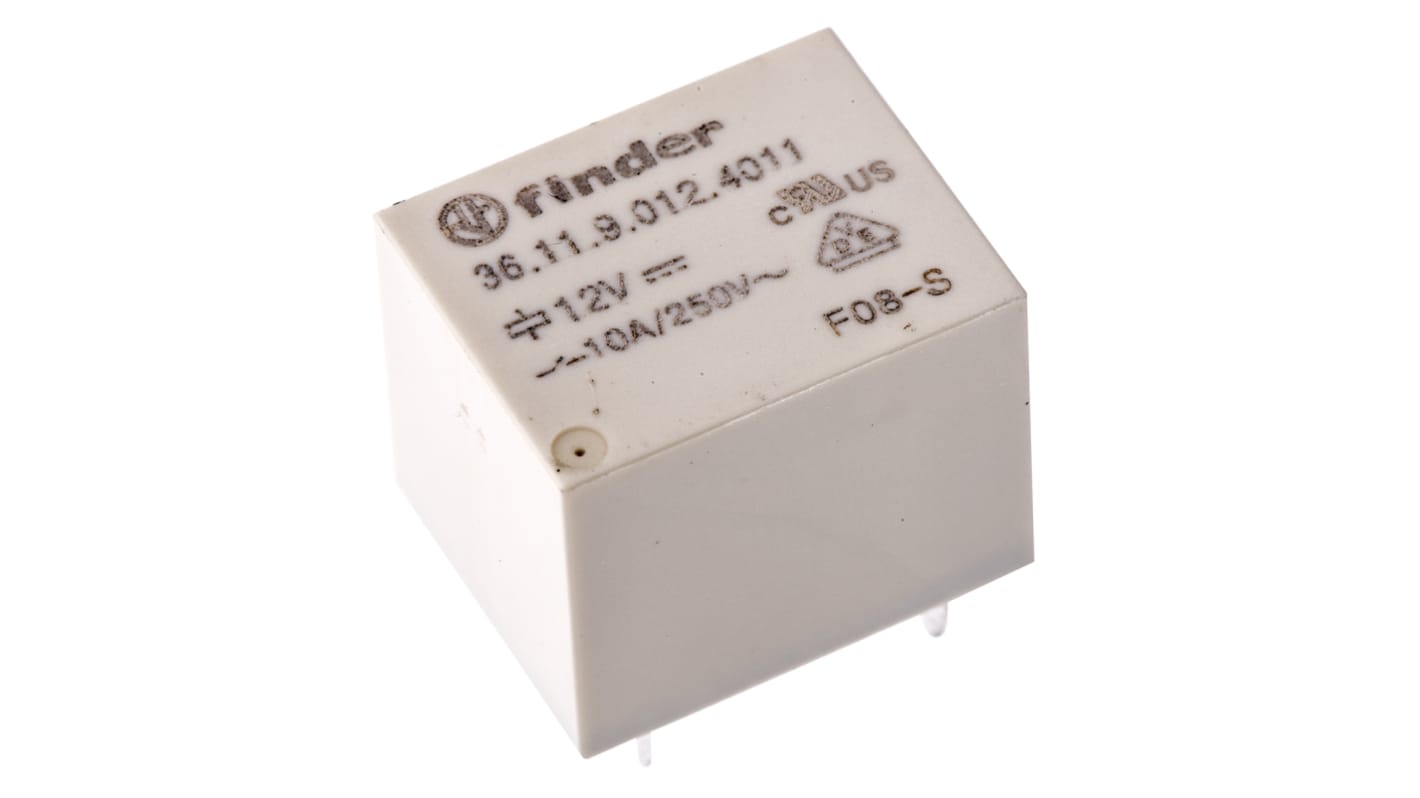

Finder PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPDT
- RS Stock No.:
- 793-3777P
- Mfr. Part No.:
- 36.11.9.012.4011
- Brand:
- Finder
Bulk discount available
Subtotal 10 units (supplied in a tube)*
£23.90
(exc. VAT)
£28.70
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 219 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 24 | £2.39 |
| 25 - 49 | £2.26 |
| 50 - 99 | £2.18 |
| 100 + | £2.02 |
*price indicative
- RS Stock No.:
- 793-3777P
- Mfr. Part No.:
- 36.11.9.012.4011
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 12V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 10A | |
| Number of Poles | 2 | |
| Series | 36 Series | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 48V dc | |
| Length | 19mm | |
| Coil Resistance | 400Ω | |
| Coil Power | 360mW | |
| Life | 50 x 10³ Operations | |
| Height | 15mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | +85°C | |
| Depth | 15.5mm | |
| Isolation Coil To Contact | 3kV | |
| Maximum Switching Power DC | 360mW | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 12V dc | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 10A | ||
Number of Poles 2 | ||
Series 36 Series | ||
Latching No | ||
Terminal Type Through Hole | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 48V dc | ||
Length 19mm | ||
Coil Resistance 400Ω | ||
Coil Power 360mW | ||
Life 50 x 10³ Operations | ||
Height 15mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature +85°C | ||
Depth 15.5mm | ||
Isolation Coil To Contact 3kV | ||
Maximum Switching Power DC 360mW | ||
Application Power | ||
Finder 36 series Power Relay, 12V DC Coil Voltage, 10A Switching Current - 36.11.9.012.4011
This power relay is designed for PCB mounting, featuring a compact structure that enhances efficiency in various applications. With a coil voltage of 12V DC, it operates with a maximum switching current of 10A. The relay’s dimensions are 19mm in length, 15.5mm in depth, and 15mm in height, making it suitable for tight installations within electronic devices.
Features & Benefits
• Utilises a single SPDT configuration offering versatility
• High voltage capability with maximum switching voltage at 250V AC
• Designed for a wide operating temperature range of -40 °C to +85 °C
• Low coil resistance of 400 Ω ensures efficient operation
• Built with a silver alloy contact material for durability
• Estimated lifecycle of 50,000 operations under normal load
• High voltage capability with maximum switching voltage at 250V AC
• Designed for a wide operating temperature range of -40 °C to +85 °C
• Low coil resistance of 400 Ω ensures efficient operation
• Built with a silver alloy contact material for durability
• Estimated lifecycle of 50,000 operations under normal load
Applications
• Ideal for controlling burners, boilers, and furnaces
• Commonly used in Jacuzzis and hot tubs for automation
• Suitable for washing machines requiring precise switching
• Integrates seamlessly into Hi-Fi systems for relay-driven circuits
• Utilised in electronic kits and circuit boards for automation solutions
• Commonly used in Jacuzzis and hot tubs for automation
• Suitable for washing machines requiring precise switching
• Integrates seamlessly into Hi-Fi systems for relay-driven circuits
• Utilised in electronic kits and circuit boards for automation solutions
What are the maximum and minimum operating temperatures for this relay?
The relay can operate effectively in temperatures ranging from -40 °C to +85 °C, allowing for use in a variety of environments.
How does the contact configuration affect its functionality?
The SPDT (Single Pole Double Throw) configuration allows for versatile control options, enabling switching between multiple circuits with a single relay.
What is the significance of the coil resistance in relay performance?
A coil resistance of 400 Ω indicates efficient power consumption, which is critical for maintaining lower energy usage while ensuring reliable activation of the relay.
Can this relay handle high current applications?
Yes, it is rated for a maximum switching current of 10A, making it suitable for various high-current applications while maintaining safety and performance.
