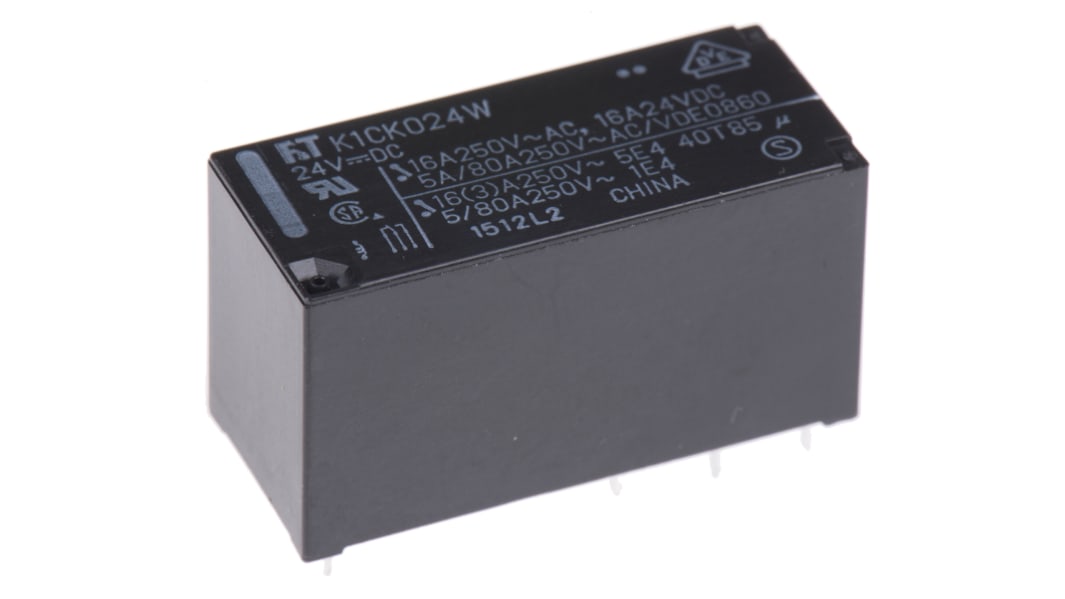

Fujitsu PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 790-3344
- Mfr. Part No.:
- FTR-K1CK024W
- Brand:
- Fujitsu
128 In stock - FREE next working day delivery available
56 available from Europe for delivery within 1 working day(s).
Added
Price Each
£2.50
(exc. VAT)
£3.00
(inc. VAT)
| Units | Per unit |
| 1 - 19 | £2.50 |
| 20 - 49 | £2.37 |
| 50 - 99 | £2.23 |
| 100 + | £2.07 |
- RS Stock No.:
- 790-3344
- Mfr. Part No.:
- FTR-K1CK024W
- Brand:
- Fujitsu
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
FTR-K1 Series Power Relay
FTR-H1 Miniature power relay from Fujitsu.
Gold plated silver alloy contacts
Contact Rating 16 A @ 250 V ac / 30 V dc
Contact Rating 16 A @ 250 V ac / 30 V dc
Standards
UL, CSA
Fujitsu
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 16A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | PCB Pin |
| Maximum Switching Voltage AC | 440V ac |
| Maximum Switching Voltage DC | 300V dc |
| Length | 29mm |
| Coil Resistance | 1440Ω |
| Coil Power | 400mW |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Alloy |
| Life | 30 x 10³ Operations, 50 x 10³ Operations |
| Height | 15.7mm |
| Depth | 12.7mm |
| Isolation Coil To Contact | 10kV |
| Maximum Switching Power DC | 384 W |
| Maximum Switching Power AC | 4 kVA |
| Application | Power |
