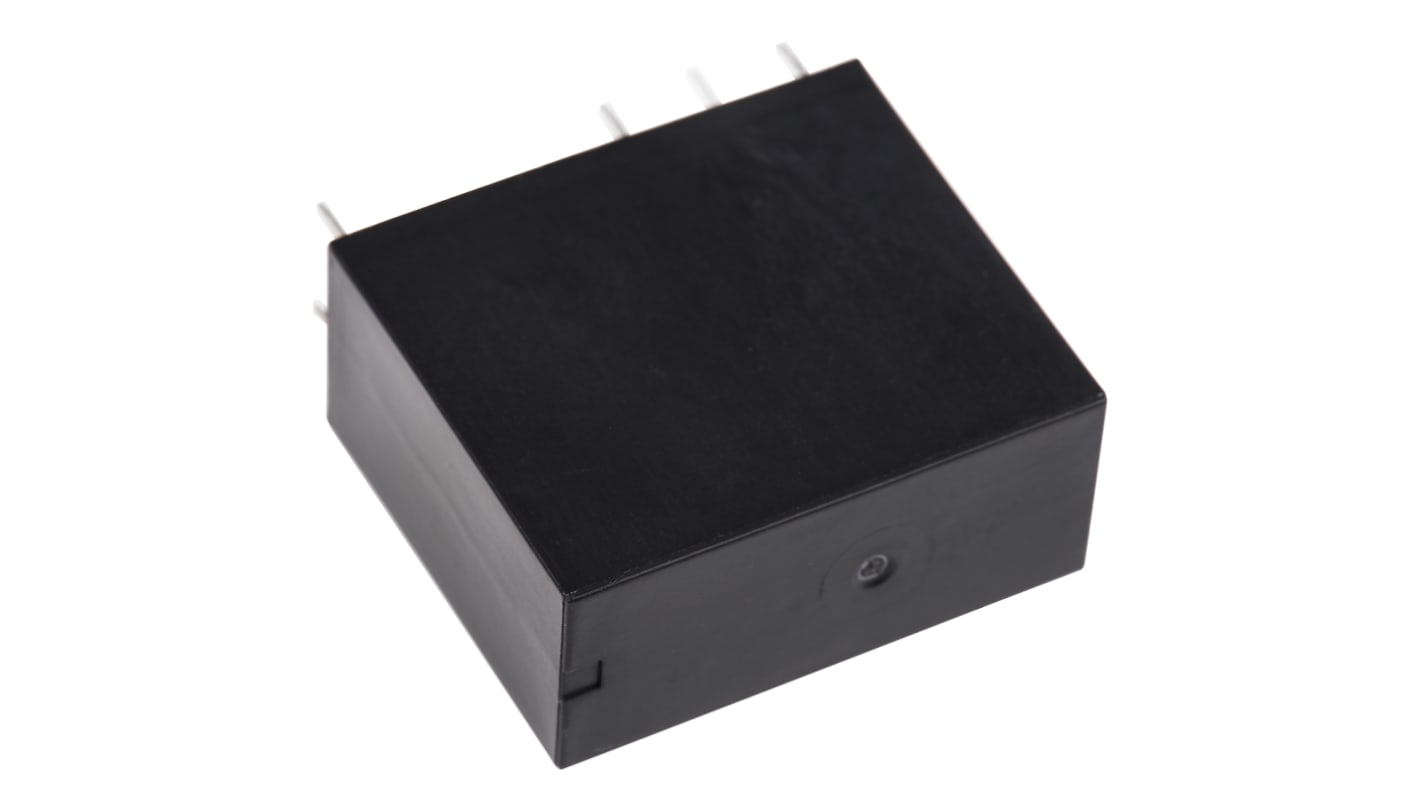

Omron PCB Mount Power Relay, 24V dc Coil, 4A Switching Current, DPDT
- RS Stock No.:
- 686-7060P
- Mfr. Part No.:
- G2R-24 DC24
- Brand:
- Omron
Bulk discount available
Subtotal 25 units (supplied in a tray)*
£103.75
(exc. VAT)
£124.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 100 unit(s) shipping from 06 October 2025
- Plus 28 unit(s) shipping from 06 October 2025
- Plus 100 unit(s) shipping from 17 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 - 49 | £4.15 |
| 50 - 99 | £3.71 |
| 100 - 249 | £3.22 |
| 250 + | £2.78 |
*price indicative
- RS Stock No.:
- 686-7060P
- Mfr. Part No.:
- G2R-24 DC24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 4A | |
| Number of Poles | 2 | |
| Series | G2R | |
| Latching | No | |
| Terminal Type | Through Hole | |
| Length | 29mm | |
| Coil Resistance | 1100Ω | |
| Contact Material | Silver | |
| Maximum Operating Temperature | +70°C | |
| Depth | 13.5mm | |
| Height | 25.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power DC | 120 W | |
| Maximum Switching Power AC | 1 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Switching Current 4A | ||
Number of Poles 2 | ||
Series G2R | ||
Latching No | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 1100Ω | ||
Contact Material Silver | ||
Maximum Operating Temperature +70°C | ||
Depth 13.5mm | ||
Height 25.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power DC 120 W | ||
Maximum Switching Power AC 1 kVA | ||
Application Power | ||
- COO (Country of Origin):
- ID
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
