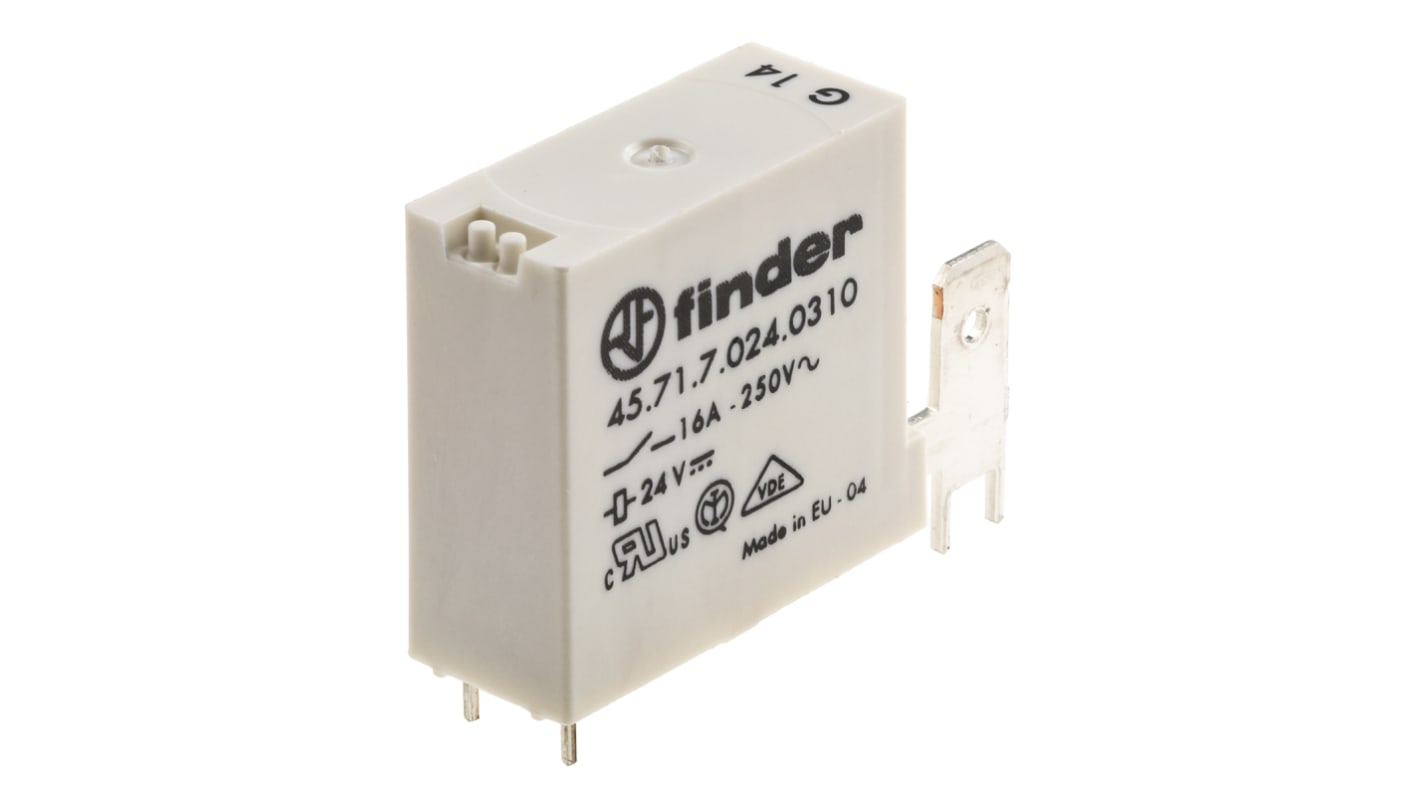

Finder PCB Mount Power Relay, 24V dc Coil, 16A Switching Current, SPST

Finder's 45 series of miniature PCB relays are designed to suit photovoltaic (PV) inverters, domestic appliances and other equipment needing reinforced insulation, high ambient temperature and full disconnection contacts. The 45 series of miniature PCB relays have SPST-NO contacts that are rated up to 16A.
With an extended 3mm contact gap, stock number 749-5130 meets the requirements of the EN60730-1 standard for household use and is rated for operation at an ambient temperature up to 105ºC. All Finder's miniature 45 series PCB relays have high sensitivity DC coils rated at 360mW and have been designed with an 8mm clearance and creepage distance, ensuring safe separation of supply and output, and reinforced insulation between coil and contacts, meeting the requirements of EN60335-1 (VDE0700).
Choose between the 45.31 series (stock number 749-5130) which has PCB terminals or the 45.71 series (stock numbers 494-6348 and 494-6360) which have PCB and 0.25 inch Faston style terminals.

Contact gap ≥3 mm according to EN60730-1 (stock number 749-5130 only)
Reinforced insulation between coil and contacts according to EN60335-1 (VDE 0700), with safe separation and 8mm clearance and creepage distance
6kV (1.2/50 μs) isolation, coil to contact
Dielectric strength 4000Vac, coil to contact
Flux proof construction

Stock numbers 494-6348 and 494-6360 have an ambient temperature range of -40°C to +125°C, stock number 749-5130 range is -40°C to +105°C.
Stock numbers 494-6348 and 494-6360 feature 6.3mm Faston/Quick Connect style tab terminals, for a suitable mating connector see stock number 669-2374 typically.

Stock numbers 494-6348 and 494-6360 cULus; VDE, IMQ, GOST, ANCE. Stock number 749-5130 IMQ only.

This power relay is a versatile SPST component designed for efficient electrical switching in various applications. With a coil voltage of 24V DC, it boasts compact dimensions of 40.7mm in length, 12.5mm in depth, and 28.5mm in height, making it ideal for PCB mounting. The unit supports a switching current of 16A, ensuring excellent performance across diverse environments.

• Supports a maximum switching voltage of 250V AC and 60V DC
• Capable of handling a maximum switching power of 750VA
• Constructed with silver alloy contacts for enhanced conductivity
• Insulation between coil and contacts rated at 6kV for safety
• Endures extreme temperatures from -40°C to +125°C
• Designed for a mechanical life of up to 100,000 cycles

• Used in control circuits for electronic equipment
• Suitable for heating devices such as burners and boilers
• Ideal for operation in Jacuzzis and hot tubs
• Employed in the control systems of film projectors and ovens
• Utilised in electrical circuit boards for reliable performance

The component operates effectively within a temperature range of -40°C to +125°C, making it adaptable to various environments.

The 6kV isolation rating between coil and contacts provides significant protection, reducing the risk of electrical faults and enhancing circuit safety.

This relay is capable of switching as much as 16A, allowing it to manage substantial loads in industrial and electronic applications.

Yes, it features a sensitive DC coil, ideal for precise control in delicate electronic circuits, ensuring minimal power consumption.

The PCB mount design and through-hole configuration make it suitable for a range of installations, particularly in compact electronic assemblies.
