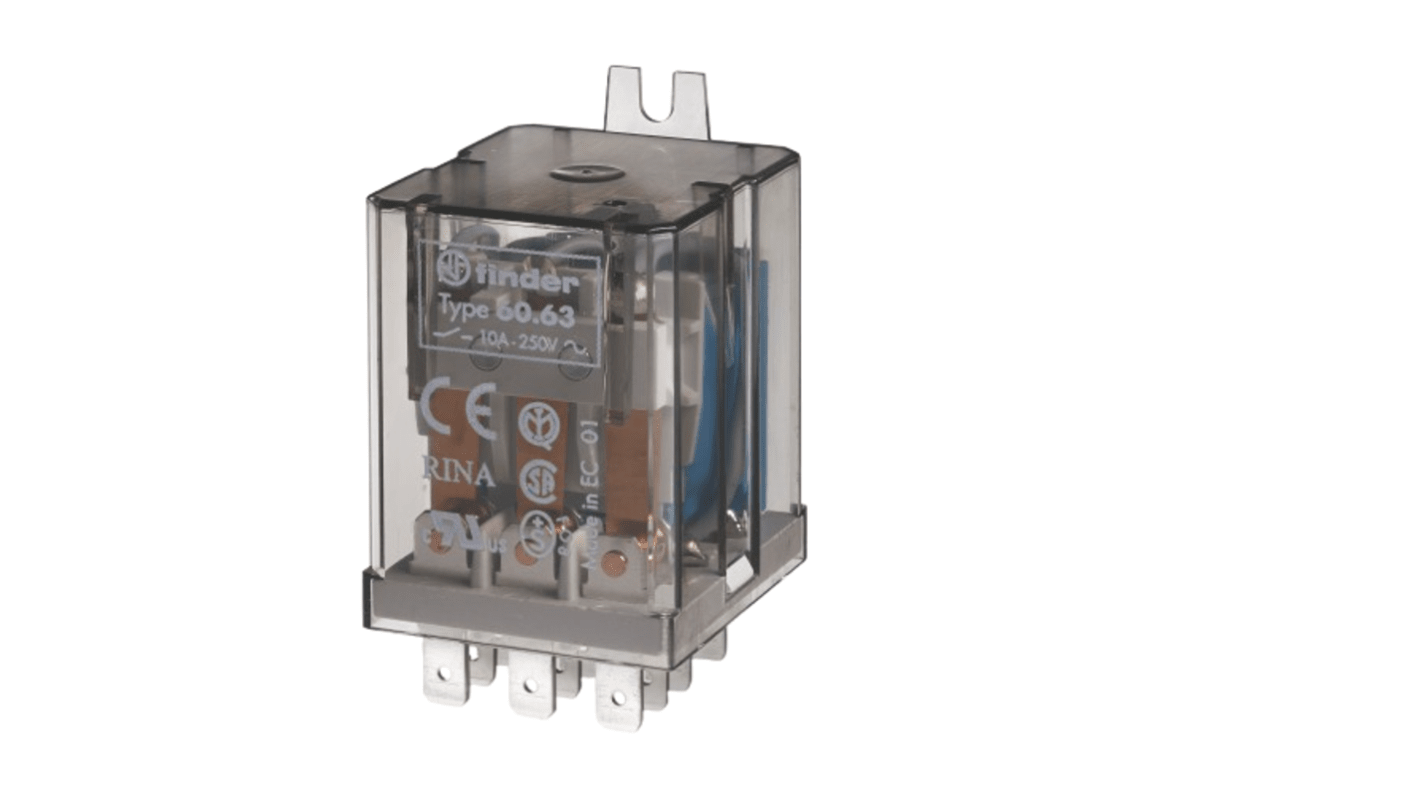

Finder Flange Relay, 230V ac Coil, 10A Switching Current
- RS Stock No.:
- 257-7400
- Mfr. Part No.:
- 606382300000
- Brand:
- Finder
Subtotal (1 unit)*
£20.89
(exc. VAT)
£25.07
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 29 unit(s) shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £20.89 |
*price indicative
- RS Stock No.:
- 257-7400
- Mfr. Part No.:
- 606382300000
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Product Type | Relay | |
| Mount Type | Flange | |
| Series | 60 | |
| Terminal Type | Screw | |
| Switching Current | 10A | |
| Switching AC Voltage | 400V ac | |
| Switching DC Voltage | 220V dc | |
| Minimum Operating Temperature | -40°C | |
| Switching Power | 1.5kVA | |
| Coil Resistance | 19.8kΩ | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | EN 61000-4-5, EN61810-1 | |
| Coil Power | 2.2VA | |
| Contact Material | Silver Nickel Alloy | |
| Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Product Type Relay | ||
Mount Type Flange | ||
Series 60 | ||
Terminal Type Screw | ||
Switching Current 10A | ||
Switching AC Voltage 400V ac | ||
Switching DC Voltage 220V dc | ||
Minimum Operating Temperature -40°C | ||
Switching Power 1.5kVA | ||
Coil Resistance 19.8kΩ | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals EN 61000-4-5, EN61810-1 | ||
Coil Power 2.2VA | ||
Contact Material Silver Nickel Alloy | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
Finder Series 60 Relay, 230V AC Coil Voltage, 3PDT Contact Configuration - 606382300000
This high voltage relay is designed for diverse applications in industrial settings. The 10A switching relay operates at a coil voltage of 230V AC with a contact configuration of 3PDT units. Ideal for tasks requiring reliable performance, it operates efficiently within a temperature range of -40°C to +70°C.
Features & Benefits
• Single coil design enhances simplicity and reliability
• AgNi contact material ensures long operational life
• Flange mount feature facilitates easy installation
• Maximum switching capacity of 20A handles various loads
• 200,000 cycles of life guarantee longevity
Applications
• Used in control panels for automation
• Used in hoists and cranes for safety and efficiency
• Applicable in wood-processing machinery for operational control
• Suitable for controlling burners and boilers in heating systems
• Utilised in tunnel and road lighting for reliable service
What environmental conditions can be tolerated by this relay?
It can operate efficiently in ambient temperatures ranging from -40°C to +70°C, making it suitable for extreme environments commonly found in industrial applications.
How does the AgNi contact material benefit functionality?
AgNi contacts provide excellent conductivity and resistance to welding, significantly enhancing the relay's durability and performance in switching operations.
What is the significance of the 3PDT contact configuration in this relay?
The 3PDT configuration allows for versatile switching, accommodating multiple circuits, which is essential for complex control systems in industrial environments.
Can this relay handle varying load types?
Yes, it is designed to manage both AC and DC loads, making it versatile for different electrical configurations and applications.
