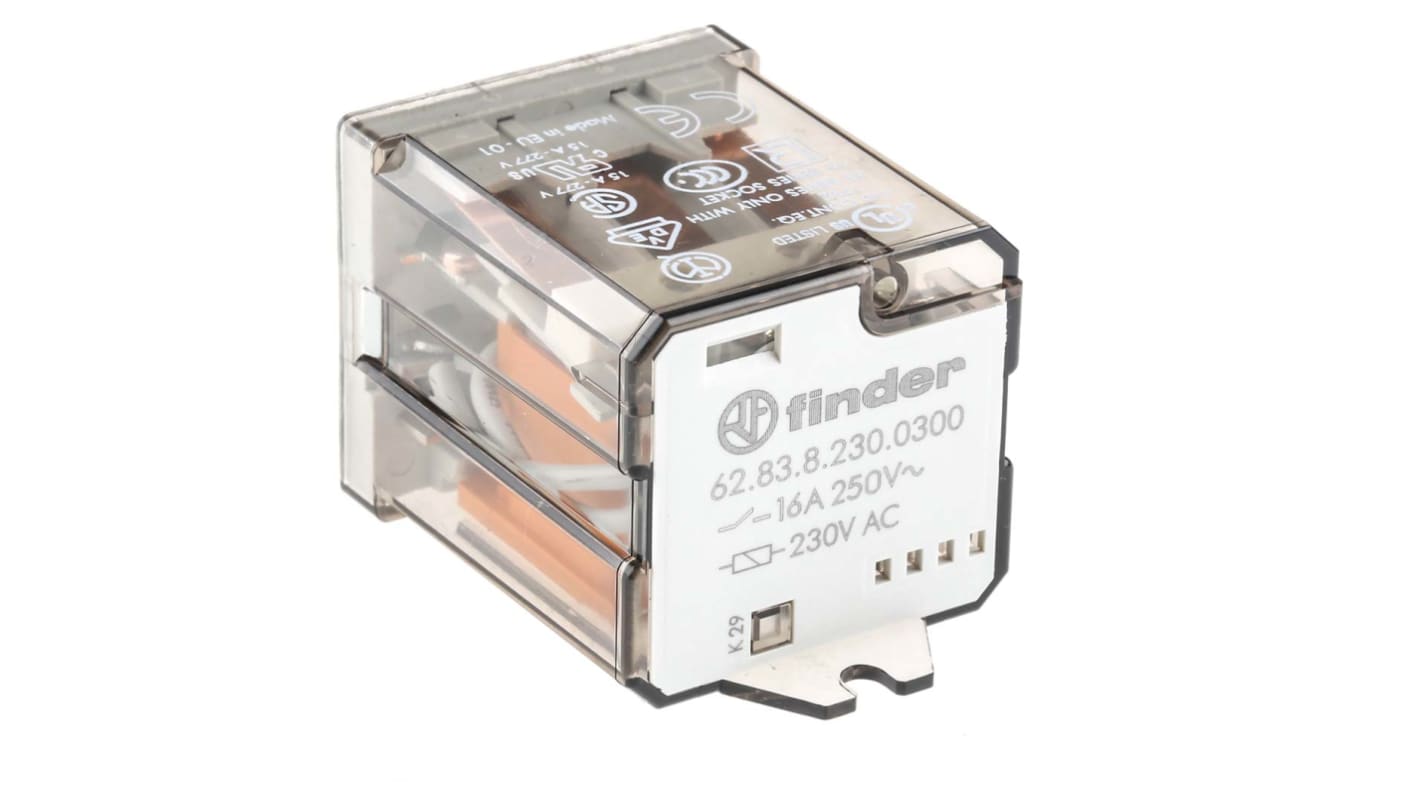

Finder Flange Mount Power Relay, 230V ac Coil, 16A Switching Current, 3PDT
- RS Stock No.:
- 245-2526
- Mfr. Part No.:
- 62.83.8.230.0300
- Brand:
- Finder
Bulk discount available
Subtotal (1 unit)*
£17.07
(exc. VAT)
£20.48
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 1 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £17.07 |
| 5 - 9 | £16.54 |
| 10 + | £15.87 |
*price indicative
- RS Stock No.:
- 245-2526
- Mfr. Part No.:
- 62.83.8.230.0300
- Brand:
- Finder
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Finder | |
| Coil Voltage | 230V ac | |
| Contact Configuration | 3PDT | |
| Mounting Type | Flange Mount | |
| Switching Current | 16A | |
| Number of Poles | 3 | |
| Latching | No | |
| Terminal Type | Quick Connect | |
| Maximum Switching Voltage AC | 250V ac | |
| Length | 68mm | |
| Coil Resistance | 7.25 kO | |
| Coil Power | 3W | |
| Depth | 38.2mm | |
| Series | 62 Series | |
| Standards Met | CE, EAC | |
| Minimum Operating Temperature | -40°C | |
| Life | 100000 Cycles | |
| Height | 35.8mm | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 6kV | |
| Contact Material | Silver Alloy | |
| Maximum Switching Power AC | 4 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Finder | ||
Coil Voltage 230V ac | ||
Contact Configuration 3PDT | ||
Mounting Type Flange Mount | ||
Switching Current 16A | ||
Number of Poles 3 | ||
Latching No | ||
Terminal Type Quick Connect | ||
Maximum Switching Voltage AC 250V ac | ||
Length 68mm | ||
Coil Resistance 7.25 kO | ||
Coil Power 3W | ||
Depth 38.2mm | ||
Series 62 Series | ||
Standards Met CE, EAC | ||
Minimum Operating Temperature -40°C | ||
Life 100000 Cycles | ||
Height 35.8mm | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 6kV | ||
Contact Material Silver Alloy | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- IT
Finder Series 62 Power Relay, 3P-NO Contact Configuration, 230V AC Coil Voltage - 62.83.8.230.0300
This power relay delivers reliable switching capabilities for industrial applications. With a coil voltage of 230 V AC, it is integral for controlling power within electrical systems. Configured as a 3P-NO relay, it is suitable for a range of environments, making it a practical option for professionals in the automation and electrical sectors.
Features & Benefits
• Quick connect terminals for swift, easy installation
• Compact design that maximises limited spaces
• Silver alloy contact materials for good conductivity
• High voltage switching capability for enhanced operational safety
• Reinforced insulation promoting durability and reliability
• Rated for 16A, making it fit for heavy-duty applications
• Compact design that maximises limited spaces
• Silver alloy contact materials for good conductivity
• High voltage switching capability for enhanced operational safety
• Reinforced insulation promoting durability and reliability
• Rated for 16A, making it fit for heavy-duty applications
Applications
• Control of industrial motors in manufacturing systems
• Management of electric power within control panels
• Road and tunnel lighting to improve visibility
• Operation of industrial furnaces and ovens
• Use in circuit breakers and switches as safety mechanisms
• Management of electric power within control panels
• Road and tunnel lighting to improve visibility
• Operation of industrial furnaces and ovens
• Use in circuit breakers and switches as safety mechanisms
Can it be used in outdoor applications?
It is not specifically designed for outdoor use
ensure it is protected from environmental elements.
How can I ensure compatibility with my existing systems?
Verify the voltage and current specifications to ensure alignment with system requirements.
Is there a specific installation method recommended?
Refer to the provided installation manual for best practices.
What maintenance steps should be taken?
Regularly inspect connections and clean contacts for optimal performance.
Can this relay handle inductive loads?
Yes, it is rated for both resistive and inductive loads within specified limits.
Approvals
UL; CSA; VDE
