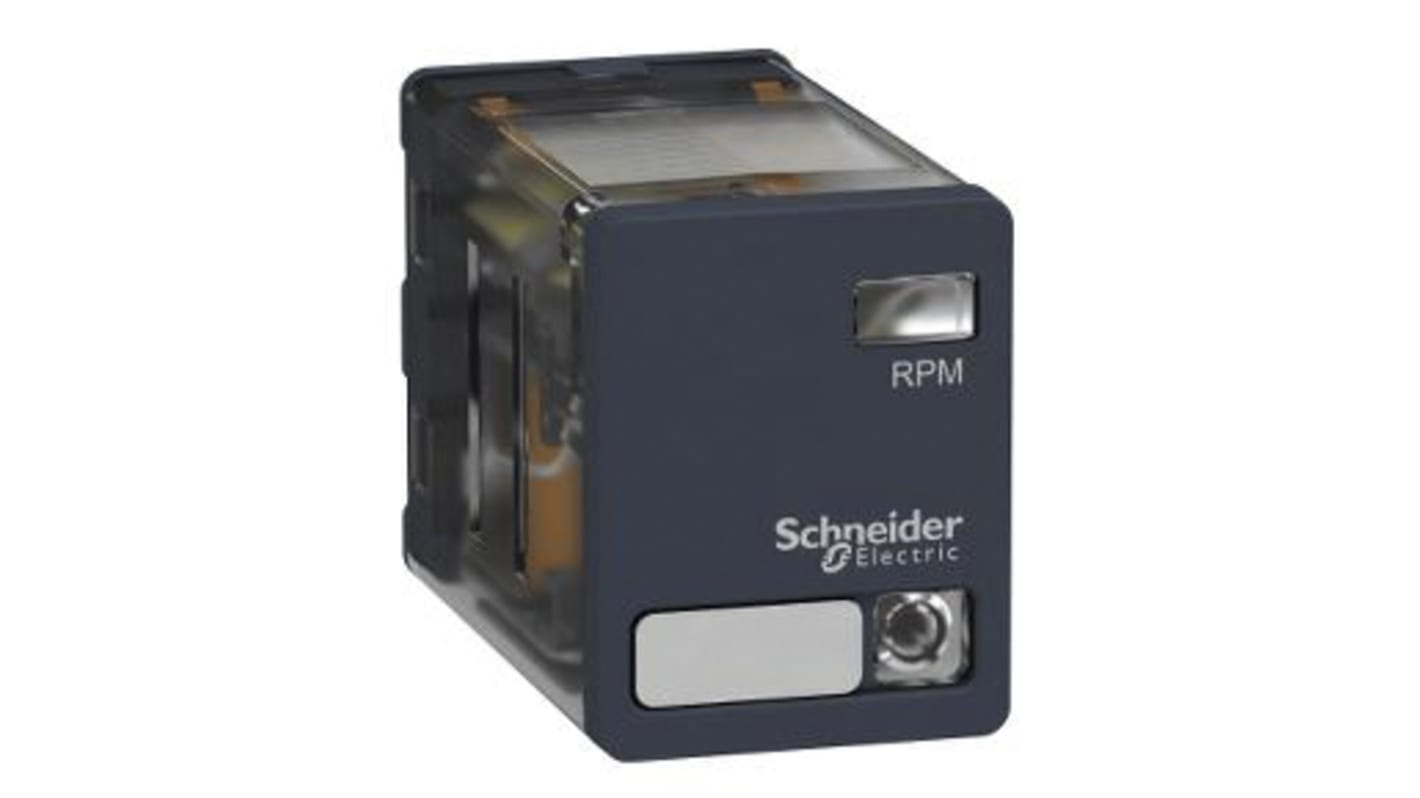

Schneider Electric Power Relay, 230V ac Coil, 15 A @ 250 V ac, 15 A @ 28 V dc Switching Current, DPDT
- RS Stock No.:
- 179-7318
- Mfr. Part No.:
- RPM23P7
- Brand:
- Schneider Electric
Discontinued
- RS Stock No.:
- 179-7318
- Mfr. Part No.:
- RPM23P7
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 230V ac | |
| Contact Configuration | DPDT | |
| Switching Current | 15 A @ 250 V ac, 15 A @ 28 V dc | |
| Number of Poles | 2 | |
| Latching | No | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 28V dc | |
| Maximum Switching Current AC | 15 A | |
| Maximum Switching Current DC | 15 A | |
| Length | 21mm | |
| Coil Power | 1.1W | |
| Depth | 39mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +55°C | |
| Series | RPM | |
| Contact Material | Silver Alloy | |
| Height | 27mm | |
| Life | 100000 cycles | |
| Maximum Switching Power AC | 3.75 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 230V ac | ||
Contact Configuration DPDT | ||
Switching Current 15 A @ 250 V ac, 15 A @ 28 V dc | ||
Number of Poles 2 | ||
Latching No | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 28V dc | ||
Maximum Switching Current AC 15 A | ||
Maximum Switching Current DC 15 A | ||
Length 21mm | ||
Coil Power 1.1W | ||
Depth 39mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +55°C | ||
Series RPM | ||
Contact Material Silver Alloy | ||
Height 27mm | ||
Life 100000 cycles | ||
Maximum Switching Power AC 3.75 kVA | ||
Application Power | ||
A complete range of electromechanical relays including interface, miniature, and power relays from 1 CO to 4 CO contacts, up to 30 A.
