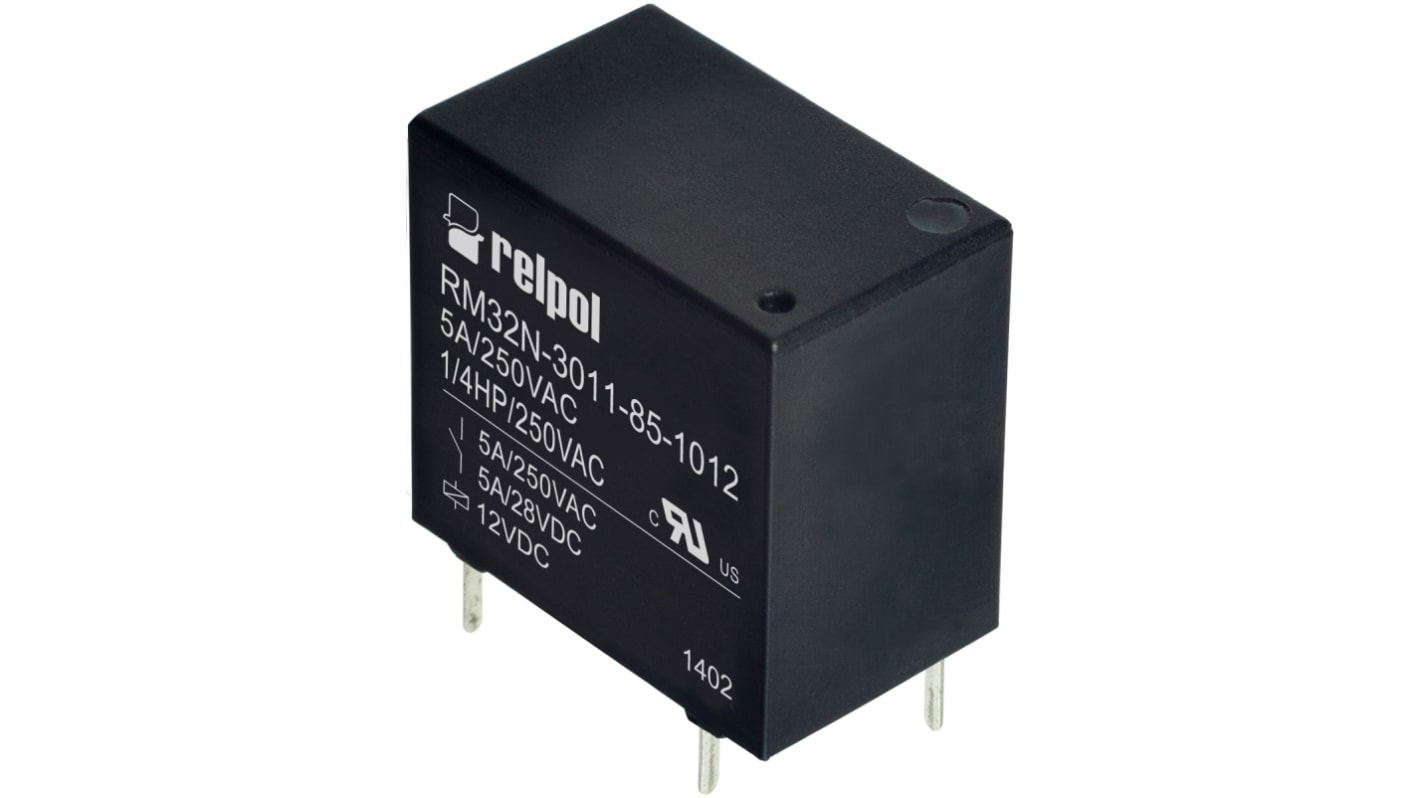

Relpol PCB Mount Non-Latching Relay, 12V dc Coil, 5A Switching Current
- RS Stock No.:
- 134-8392
- Mfr. Part No.:
- RM32N-3011-85-1012
- Brand:
- Relpol
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 134-8392
- Mfr. Part No.:
- RM32N-3011-85-1012
- Brand:
- Relpol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Relpol | |
| Coil Voltage | 12V dc | |
| Mounting Type | PCB Mount | |
| Switching Current | 5A | |
| Number of Poles | 1 | |
| Terminal Type | PCB Pin | |
| Maximum Switching Voltage AC | 277V | |
| Maximum Switching Voltage DC | 28V | |
| Length | 18.8mm | |
| Coil Resistance | 320 Ω | |
| Coil Power | 450mW | |
| Life | 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Isolation Coil To Contact | 2.5kV ac | |
| Maximum Operating Temperature | +70°C | |
| Height | 15.3mm | |
| Contact Material | Silver Alloy | |
| Depth | 10.6mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Switching Power DC | 186 W | |
| Maximum Switching Power AC | 1.25 kVA | |
| Application | Automation Systems, Electrical Equipment, Household Electrical Appliance, Instrument & Meter, Lighting Controls, Remote Control Facilities, Telecommunications Equipment | |
Select all | ||
|---|---|---|
Brand Relpol | ||
Coil Voltage 12V dc | ||
Mounting Type PCB Mount | ||
Switching Current 5A | ||
Number of Poles 1 | ||
Terminal Type PCB Pin | ||
Maximum Switching Voltage AC 277V | ||
Maximum Switching Voltage DC 28V | ||
Length 18.8mm | ||
Coil Resistance 320 Ω | ||
Coil Power 450mW | ||
Life 100000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Isolation Coil To Contact 2.5kV ac | ||
Maximum Operating Temperature +70°C | ||
Height 15.3mm | ||
Contact Material Silver Alloy | ||
Depth 10.6mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Switching Power DC 186 W | ||
Maximum Switching Power AC 1.25 kVA | ||
Application Automation Systems, Electrical Equipment, Household Electrical Appliance, Instrument & Meter, Lighting Controls, Remote Control Facilities, Telecommunications Equipment | ||
- COO (Country of Origin):
- PL
Relpol RM32N Series Miniature Relays
Relpol RM32N series miniature relays for general purpose applications. The RM32N relays are designed for PCB mounting and are suitable for a wide range of applications such as automobile, machine and electronic equipment.
Features and Benefits
DC coils
High load up to 10 A @ 125 V ac
Compact size
High shock and vibration resistance
