- RS Stock No.:
- 536-883
- Mfr. Part No.:
- MKS2PIAC230
- Brand:
- Omron
47 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£10.35
(exc. VAT)
£12.42
(inc. VAT)
Units | Per unit |
1 - 4 | £10.35 |
5 - 9 | £10.04 |
10 + | £9.60 |
- RS Stock No.:
- 536-883
- Mfr. Part No.:
- MKS2PIAC230
- Brand:
- Omron
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
General Purpose Relays, MKS Series
All units have a Mechanical indicator and lockable test button (with nameplate)
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C
Units with a "-5" in the Manufacturer Part Number have non-standard connections, refer to datasheet
Contact rating: 10A at 30Vdc/250Vac
Contact material: AgSnIn
Operating temperature: -40 → +60 °C
Note
When Relays are mounted on the PF083A-E or PF113A-E, the maximum carrying current is 9 A
Approvals
UL, TUV (IEC), CSA

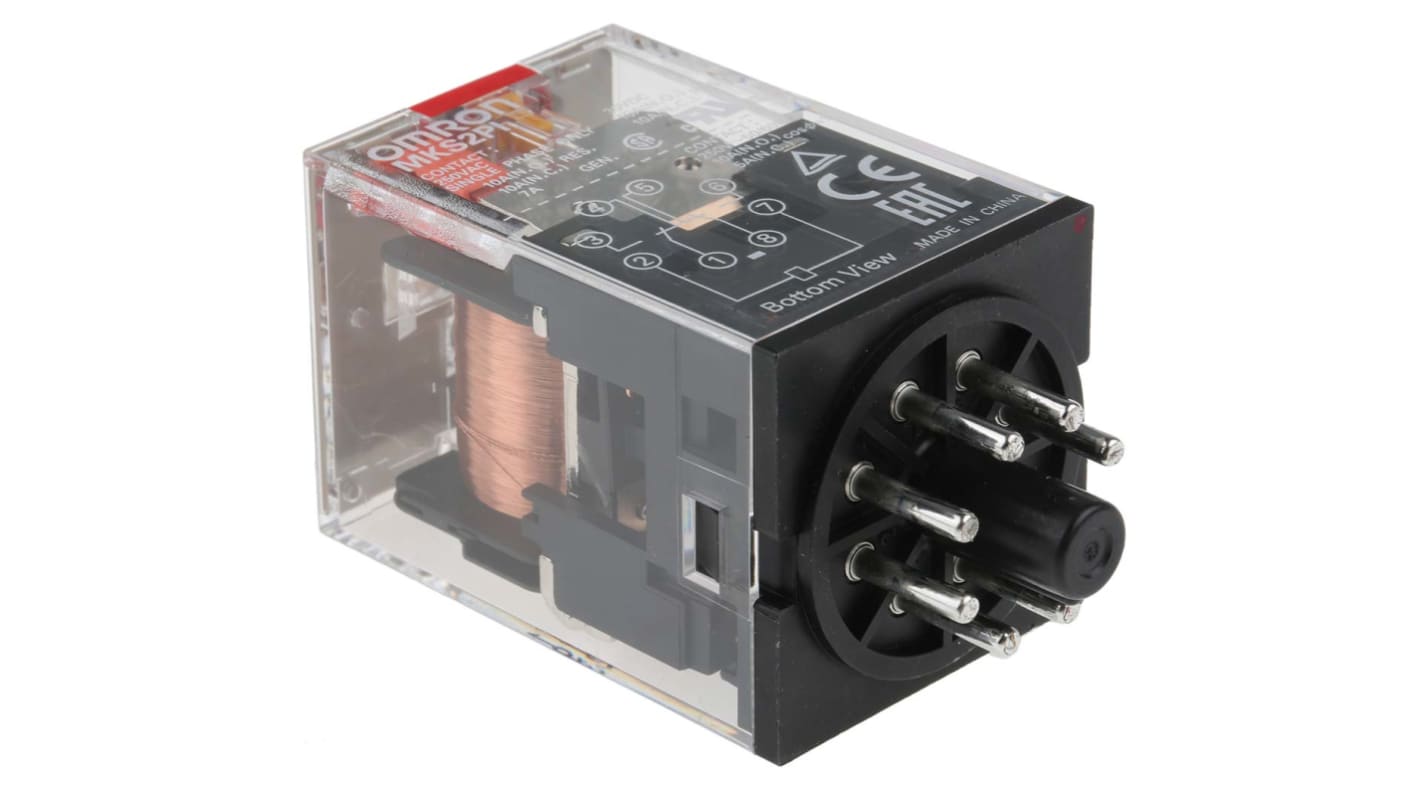

Omron MKS Series Power Relay, DPDT, Plug-In Mount - MKS2PIAC230
This power relay from Omron is a versatile product suitable for a range of applications in automation, electronics, and electrical industries. It offers reliable performance with its high-quality components and design. With DPDT configuration and a coil resistance of 4250 Ω, this power relay is ideal for various general-purpose uses. It provides efficient switching power with a maximum of 2.5 kVA for AC and 300 W for DC applications.
Features & Benefits
• DPDT configuration for flexible switching operations
• Silver alloy contacts ensure durability and reliable performance
• Coil voltage of 230 V AC for consistent power supply
• Compact design with dimensions of 53.3mm x 34.5mm x 34.5mm
• Silver alloy contacts ensure durability and reliable performance
• Coil voltage of 230 V AC for consistent power supply
• Compact design with dimensions of 53.3mm x 34.5mm x 34.5mm
Applications
• Ideal for relay sequence circuits
• Suitable for use in automation equipment
• Can be used in electrical control systems
• Suitable for use in automation equipment
• Can be used in electrical control systems
Can it be used in conjunction with sequence circuits?
Yes, this power relay is designed for use in relay sequence circuits.
Will it operate efficiently in automation equipment?
Yes, the relay is suitable for use in automation and control systems.
Is this relay compatible with general-purpose electrical systems?
Yes, the power relay is designed for general-purpose applications.
Specifications
Attribute | Value |
---|---|
Coil Voltage | 230V ac |
Contact Configuration | DPDT |
Mounting Type | Plug In |
Switching Current | 10A |
Number of Poles | 2 |
Latching | No |
Terminal Type | Plug In |
Maximum Switching Voltage AC | 250V ac |
Maximum Switching Voltage DC | 250V dc |
Length | 34.5mm |
Coil Resistance | 4250Ω |
Contact Material | Silver Alloy |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +60°C |
Series | MKS |
Height | 53.3mm |
Depth | 34.5mm |
Maximum Switching Power AC | 2.5 kVA |
Maximum Switching Power DC | 300 W |
Application | General Purpose |
