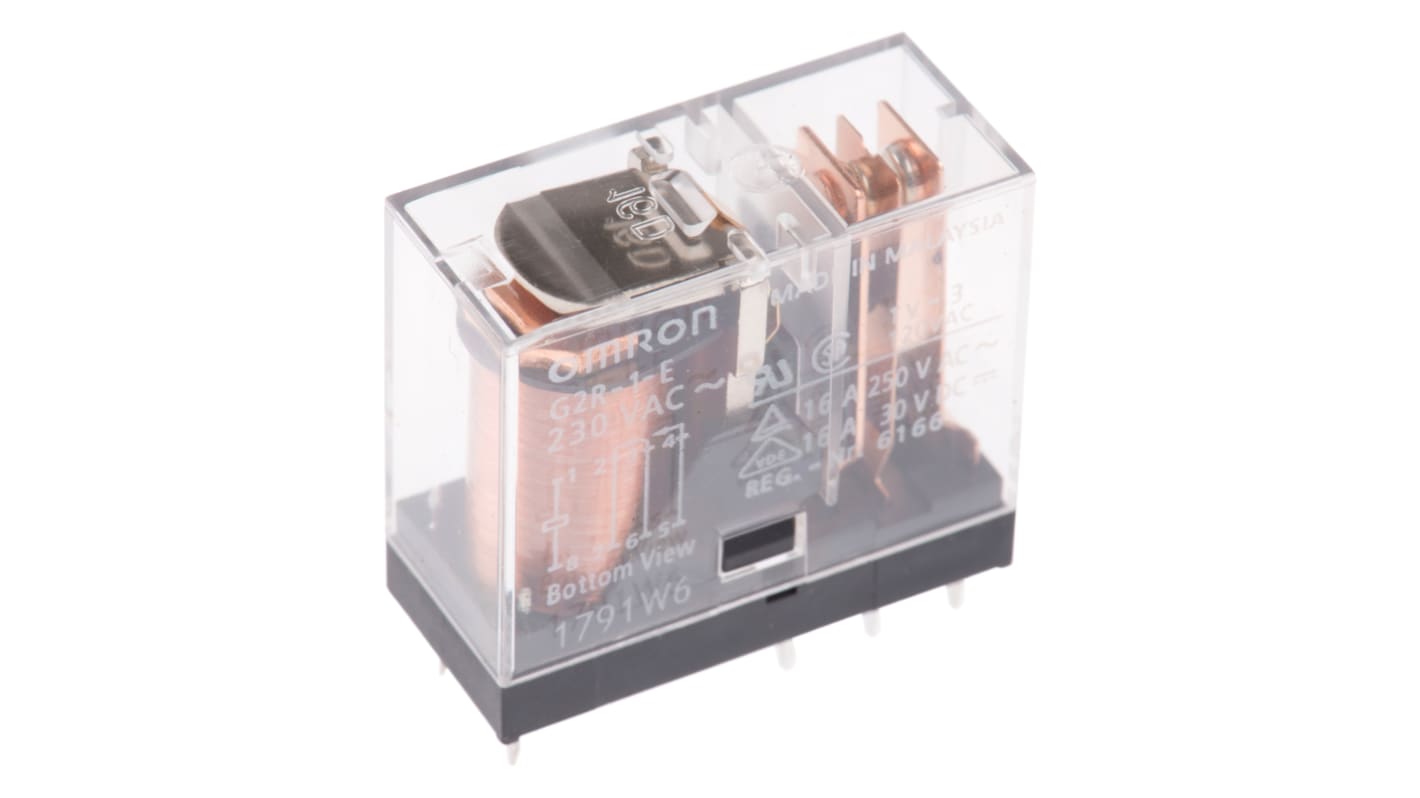

Omron PCB Mount Power Relay, 230V ac Coil, 16A Switching Current, SPDT
- RS Stock No.:
- 369-321
- Mfr. Part No.:
- G2R-1-E AC230
- Brand:
- Omron
Bulk discount available
Subtotal (1 unit)*
£8.19
(exc. VAT)
£9.83
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 100 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £8.19 |
| 25 - 49 | £6.58 |
| 50 - 99 | £6.16 |
| 100 - 249 | £5.79 |
| 250 + | £5.33 |
*price indicative
- RS Stock No.:
- 369-321
- Mfr. Part No.:
- G2R-1-E AC230
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Coil Voltage | 230V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | PCB Mount | |
| Switching Current | 16A | |
| Number of Poles | 1 | |
| Latching | No | |
| Series | G2R | |
| Terminal Type | Through Hole | |
| Length | 29mm | |
| Coil Resistance | 26850Ω | |
| Maximum Operating Temperature | +70°C | |
| Depth | 13mm | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver | |
| Height | 25.5mm | |
| Maximum Switching Power DC | 480 W | |
| Maximum Switching Power AC | 4 kVA | |
| Application | Power | |
Select all | ||
|---|---|---|
Brand Omron | ||
Coil Voltage 230V ac | ||
Contact Configuration SPDT | ||
Mounting Type PCB Mount | ||
Switching Current 16A | ||
Number of Poles 1 | ||
Latching No | ||
Series G2R | ||
Terminal Type Through Hole | ||
Length 29mm | ||
Coil Resistance 26850Ω | ||
Maximum Operating Temperature +70°C | ||
Depth 13mm | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver | ||
Height 25.5mm | ||
Maximum Switching Power DC 480 W | ||
Maximum Switching Power AC 4 kVA | ||
Application Power | ||
- COO (Country of Origin):
- ID
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
