Chauvin Arnoux P01120594, Flexible current sensor
- RS Stock No.:
- 219-2222
- Mfr. Part No.:
- P01120594
- Brand:
- Chauvin Arnoux
Subtotal (1 unit)*
£239.02
(exc. VAT)
£286.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 9 unit(s) shipping from 01 October 2025
- Plus 6 unit(s) shipping from 22 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £239.02 |
*price indicative
- RS Stock No.:
- 219-2222
- Mfr. Part No.:
- P01120594
- Brand:
- Chauvin Arnoux
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Chauvin Arnoux | |
Accessory Type | Flexible current sensor | |
For Use With | CA8220, CA8331, CA8333, CA8336, CA8436, PEL102, PEL103, PEL104, PEL106 | |
Select all | ||
---|---|---|
Brand Chauvin Arnoux | ||
Accessory Type Flexible current sensor | ||
For Use With CA8220, CA8331, CA8333, CA8336, CA8436, PEL102, PEL103, PEL104, PEL106 | ||
- COO (Country of Origin):
- FR

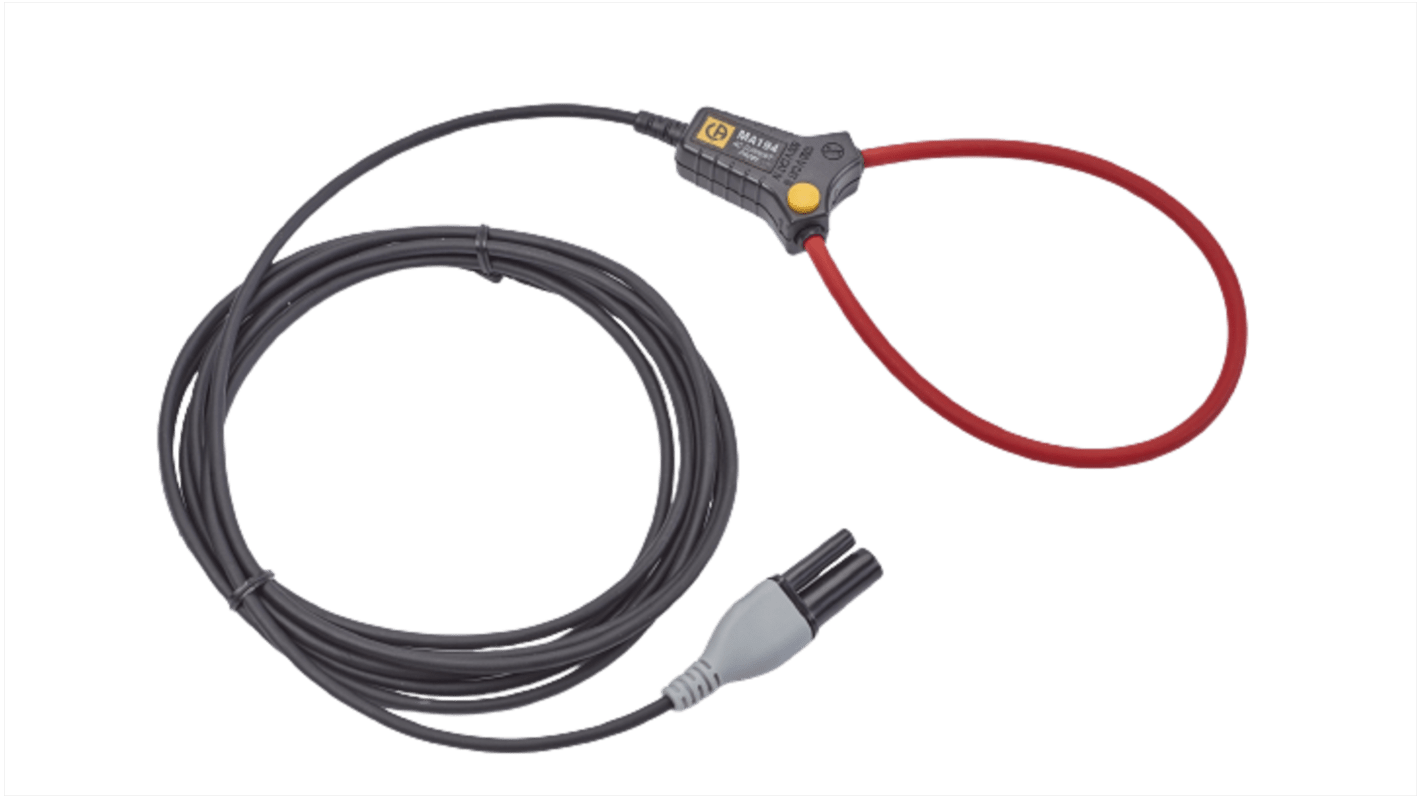

MiniFlex® MA194, clamping Ø 300mm
Flexible current sensor used to measure the current flowing in a cable without opening the circuit. Insulate the user from dangerous voltages in the circuit.
Measurement range * 100 mA - 10 000 A 100 mA - 10 000 A 100 mA - 10 000 A
Clamping diameter 300 mm
Dimensions (L x W x H) approx. 370 x 320 x 18 mm
Lead 3 m long
Weight approx. 160 g
Clamping diameter 300 mm
Dimensions (L x W x H) approx. 370 x 320 x 18 mm
Lead 3 m long
Weight approx. 160 g
Compatible and use with :
PEL102, PEL103, PEL104, PEL106, CA8220, CA8331, CA8333, CA8336, CA8436
