STMicroelectronics Motor Controller for STGP10H60DF
- RS Stock No.:
- 875-0826
- Mfr. Part No.:
- STEVAL-IHM023V3
- Brand:
- STMicroelectronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 875-0826
- Mfr. Part No.:
- STEVAL-IHM023V3
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Power Management Function | Motor Controller | |
| Kit Classification | Evaluation Board | |
| Featured Device | STGP10H60DF | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Power Management Function Motor Controller | ||
Kit Classification Evaluation Board | ||
Featured Device STGP10H60DF | ||

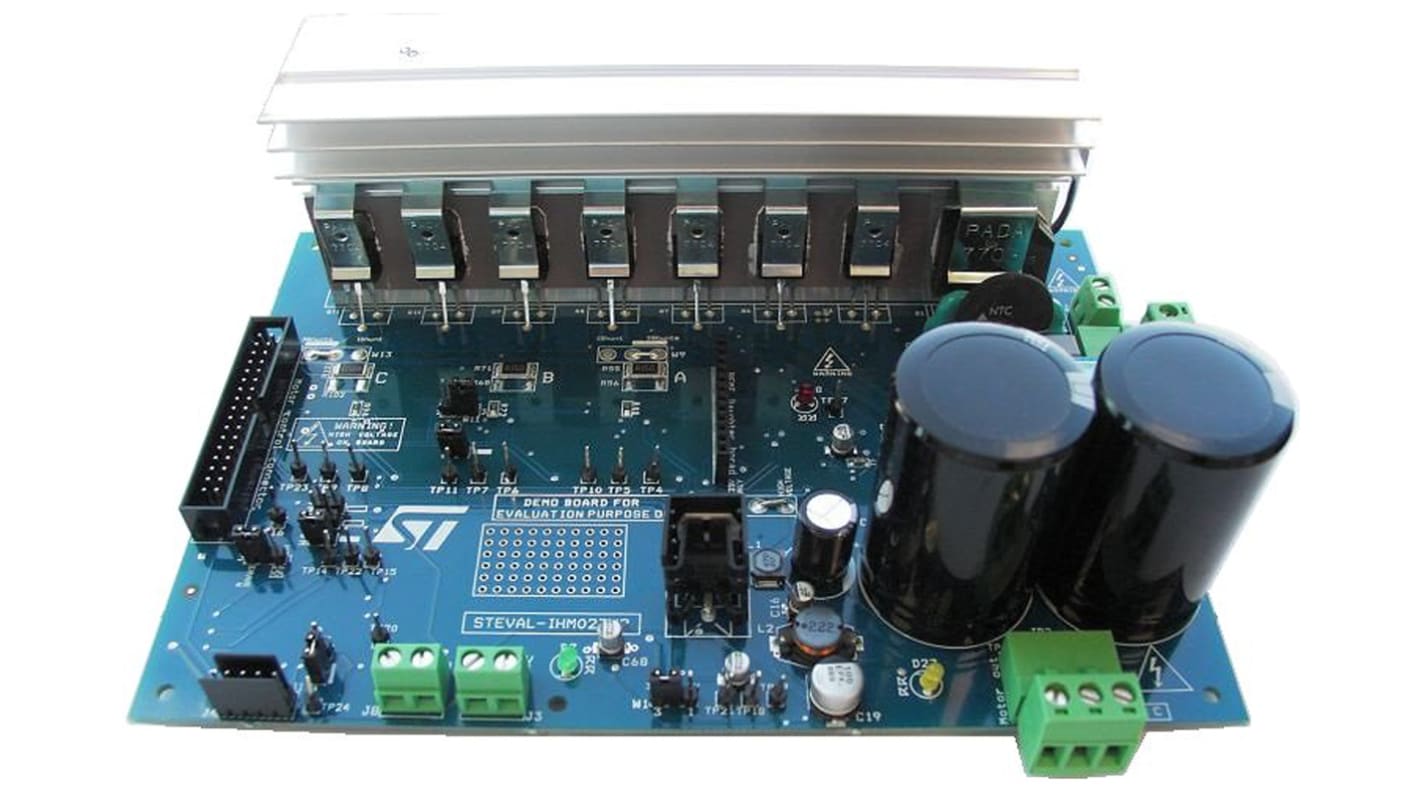

1kW 3-Phase Motor Control Evaluation Board (L6390 Drivers and STGP10H60DF IGBT)
The STEVAL-IHM023V3 Evaluation Board is an AC-DC inverter that generates a three-phase waveform for driving two- or three-phase motors such as induction motors or Permanent-Magnet Synchronous Motor (PMSM) motors up to 1000W.
Minimum input voltage: 125VDC or 90VAC
Maximum input voltage: 400VDC or 285VAC
Input voltage range with applied input voltage doubler from 65VAC to 145VAC
Voltage range for low-voltage motor control applications from 18VDC to 35VDC
Regenerative brake control
Input inrush limitation with bypass relay
+15V auxiliary power supply based on step-down converter with VIPer16
Fully populated board design with test points and isolated plastic cover for safety
Tachometer input
Hall/encoder inputs
Board Dimensions: 127 x 180 mm
Maximum input voltage: 400VDC or 285VAC
Input voltage range with applied input voltage doubler from 65VAC to 145VAC
Voltage range for low-voltage motor control applications from 18VDC to 35VDC
Regenerative brake control
Input inrush limitation with bypass relay
+15V auxiliary power supply based on step-down converter with VIPer16
Fully populated board design with test points and isolated plastic cover for safety
Tachometer input
Hall/encoder inputs
Board Dimensions: 127 x 180 mm
Motor Controllers & Drivers, STMicroelectronics
