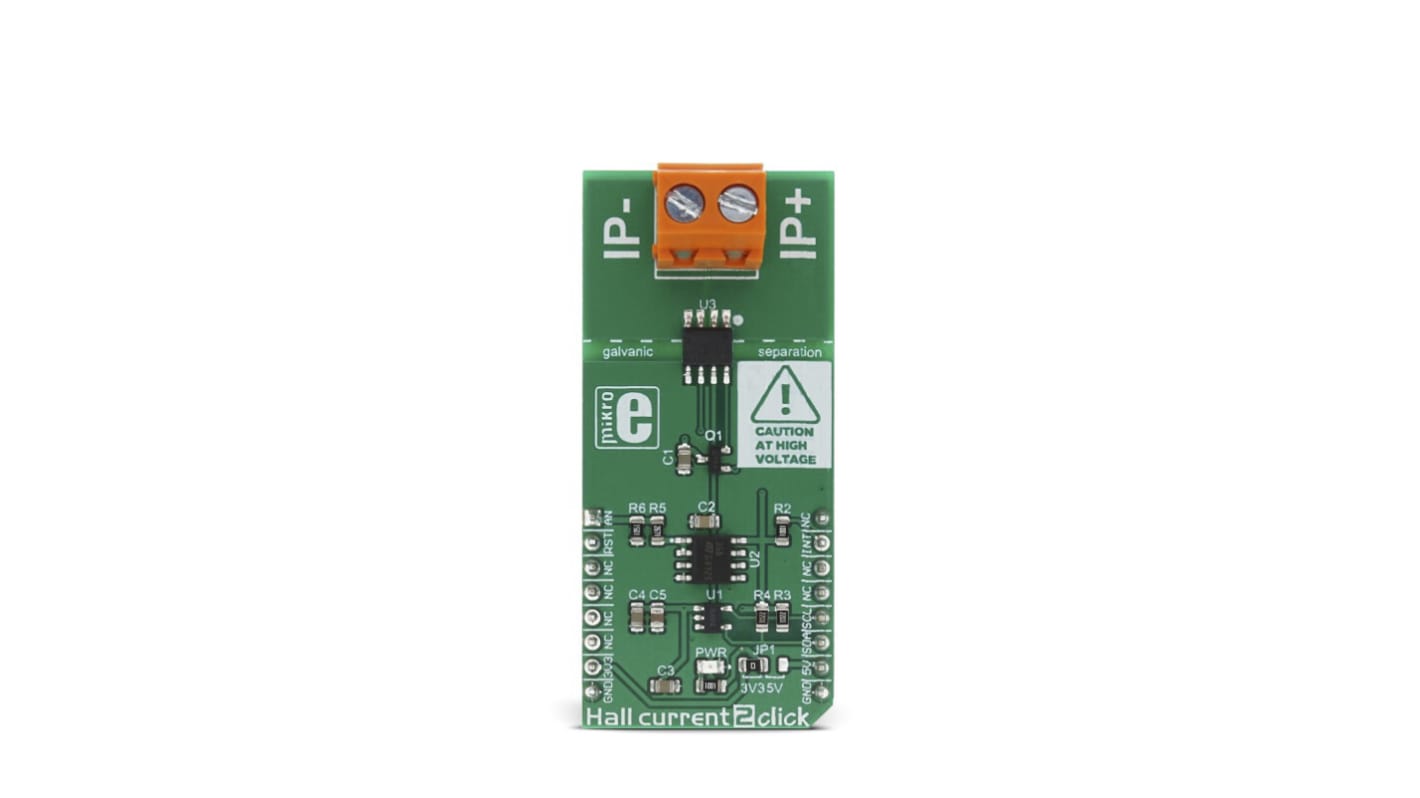

Development Kit Hall Current 2 Click for use with Audio applications, Telecommunication Applications, White Goods
- RS Stock No.:
- 184-0876
- Mfr. Part No.:
- MIKROE-2987
- Brand:
- MikroElektronika
9 In stock - FREE next working day delivery available
Added
Price Each
£14.50
(exc. VAT)
£17.40
(inc. VAT)
Units | Per unit |
1 - 4 | £14.50 |
5 - 9 | £13.96 |
10 + | £13.45 |
- RS Stock No.:
- 184-0876
- Mfr. Part No.:
- MIKROE-2987
- Brand:
- MikroElektronika
Technical Reference
Legislation and Compliance
Product Details
No external sense resistor required, single package solution
Reduced power loss:
0.6 mΩ internal conductor resistance on EX package
1.2 mΩ internal conductor resistance on LC package
Economical low- and high-side current sensing
Output voltage proportional to AC or DC currents
±12.5 A and ±25 A full-scale sensing ranges on LC package
±15.5 A and ±31 A full-scale sensing ranges on EX package
Overcurrent ¯F¯A¯U¯L¯T¯ trips and latches at 100% of full-scale current
Low-noise analogue signal path
100 kHz bandwidth
Small footprint, low-profile SOIC8 and QFN packages
3 to 5.5 V single supply operation
Integrated electrostatic shield for output stability
Factory-trimmed for accuracy
Extremely stable output offset voltage
Zero magnetic hysteresis
Ratiometric output from supply voltage
Reduced power loss:
0.6 mΩ internal conductor resistance on EX package
1.2 mΩ internal conductor resistance on LC package
Economical low- and high-side current sensing
Output voltage proportional to AC or DC currents
±12.5 A and ±25 A full-scale sensing ranges on LC package
±15.5 A and ±31 A full-scale sensing ranges on EX package
Overcurrent ¯F¯A¯U¯L¯T¯ trips and latches at 100% of full-scale current
Low-noise analogue signal path
100 kHz bandwidth
Small footprint, low-profile SOIC8 and QFN packages
3 to 5.5 V single supply operation
Integrated electrostatic shield for output stability
Factory-trimmed for accuracy
Extremely stable output offset voltage
Zero magnetic hysteresis
Ratiometric output from supply voltage
Specifications
Attribute | Value |
---|---|
Kit Name | Hall Current 2 Click Board |
