MikroElektronika Buck-Boost 2 Click DC-DC Regulator for LTC3115-2 for Firewire Connectors, Lead-Acid Battery Cells,
- RS Stock No.:
- 174-5873
- Mfr. Part No.:
- MIKROE-2963
- Brand:
- MikroElektronika
5 In stock - FREE next working day delivery available
Added
Price Each
£25.31
(exc. VAT)
£30.37
(inc. VAT)
Units | Per unit |
1 - 4 | £25.31 |
5 - 9 | £24.64 |
10 - 24 | £24.01 |
25 + | £23.41 |
- RS Stock No.:
- 174-5873
- Mfr. Part No.:
- MIKROE-2963
- Brand:
- MikroElektronika
Technical Reference
Legislation and Compliance
Product Details

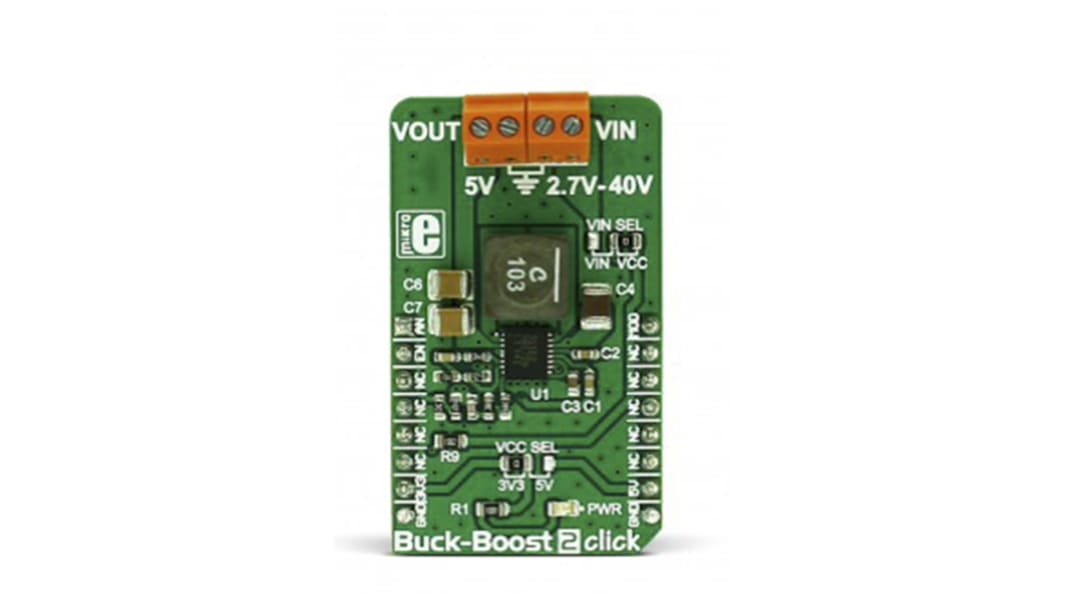

MikroElektronika Buck-Boost 2 click board
The MikroElektronika Buck-Boost 2 click board is an advanced DC-DC step-down/step-up regulator (buck/boost) click 2 board, which can provide regulated 5V on its output, regardless of the input voltage. The input voltage can range from 2.7V up to 40V. The click board™ provides ultra-low noise and ripple-free regulated output with transparent switching from buck to boost mode depending on the input voltage, which produces no discontinuities or switching artefacts such as transients or sub-harmonic switching. Selectable switching mode allows optimal power consumption and high power efficiency for both, lighter and heavier loads.
Features and Benefits
Analog and General-purpose Input Output (GPIO) interface
On-board 40V/2A synchronous buck-boost LTC3115-2 DC-DC converter
Output current rating for Boost mode is 0.6A and Buck mode is 1.6A
Selectable switching mode for optimal efficiency
Smooth transition between step-down and step-up modes
Sync input allows synchronization with an external clock
On-board 40V/2A synchronous buck-boost LTC3115-2 DC-DC converter
Output current rating for Boost mode is 0.6A and Buck mode is 1.6A
Selectable switching mode for optimal efficiency
Smooth transition between step-down and step-up modes
Sync input allows synchronization with an external clock
Applications
Firewire connectors
Lead-acid battery cells
Wall adapters
Lead-acid battery cells
Wall adapters
Specifications
Attribute | Value |
---|---|
Power Management Function | DC-DC Regulator |
For Use With | Firewire Connectors, Lead-Acid Battery Cells, Wall Adapters |
Featured Device | LTC3115-2 |
Kit Name | Buck-Boost 2 Click |
