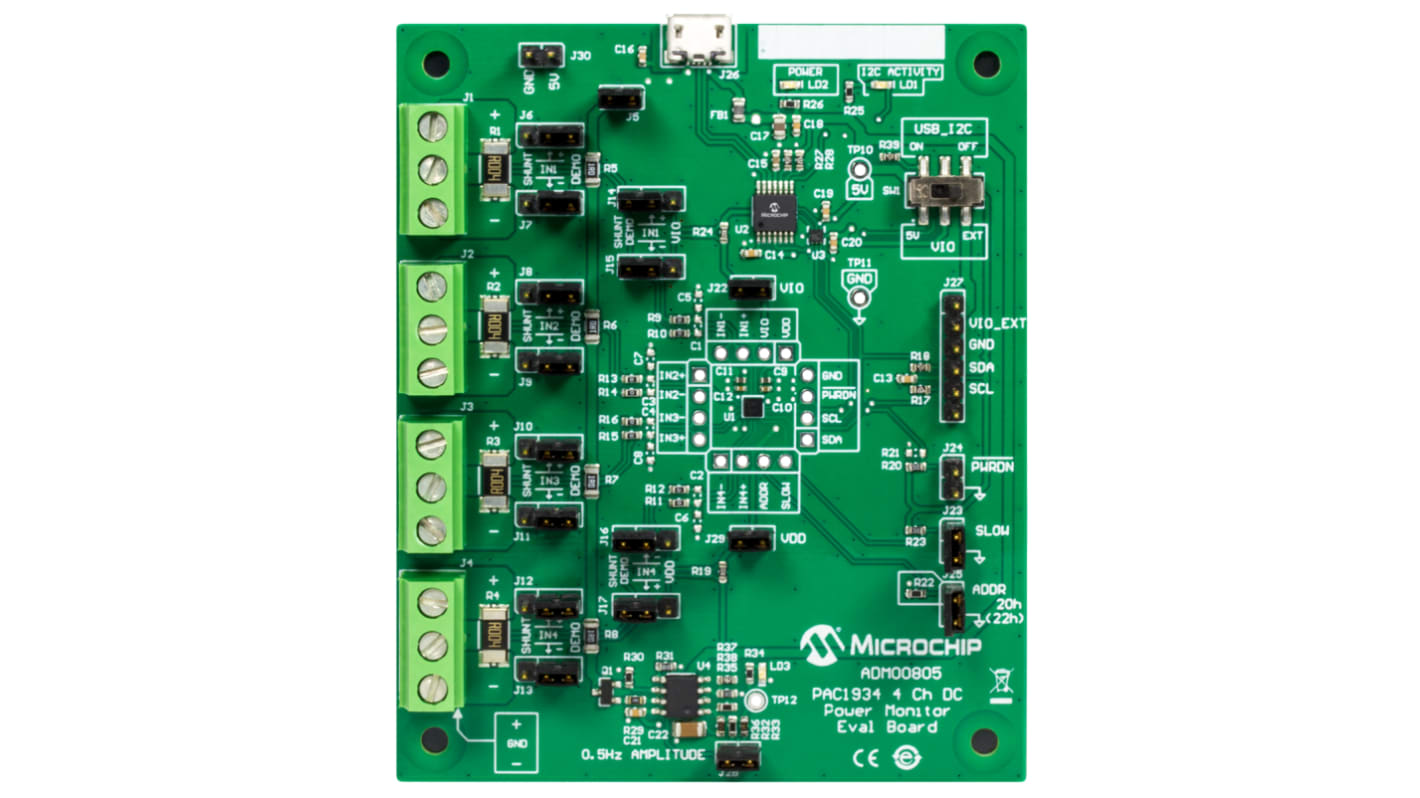

Microchip 4 Channel DC Power Monitor Evaluation Board Energy Metering, Power Monitoring for PAC1934 for USB or I2C
- RS Stock No.:
- 165-5120
- Mfr. Part No.:
- ADM00805
- Brand:
- Microchip
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 165-5120
- Mfr. Part No.:
- ADM00805
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Power Management Function | Energy Metering, Power Monitoring | |
| For Use With | USB or I2C Direct Connection | |
| Kit Classification | Evaluation Board | |
| Featured Device | PAC1934 | |
| Kit Name | 4 Channel DC Power Monitor Evaluation Board | |
Select all | ||
|---|---|---|
Brand Microchip | ||
Power Management Function Energy Metering, Power Monitoring | ||
For Use With USB or I2C Direct Connection | ||
Kit Classification Evaluation Board | ||
Featured Device PAC1934 | ||
Kit Name 4 Channel DC Power Monitor Evaluation Board | ||
This board enables easy connection of the PAC1934 to power sources and loads for power monitoring and energy metering. On-board current sense resistors for high side current sensing. It has USB connection to PC for power and data, or you may use I2C direct connection to your digital controller. On board square wave current generator for demo purposes. GUI available, detailed User's Guide.
USB or I2C direct connection
Easy connection to power sources and loads
Onboard sense resistors and current square wave generator.
Easy connection to power sources and loads
Onboard sense resistors and current square wave generator.
