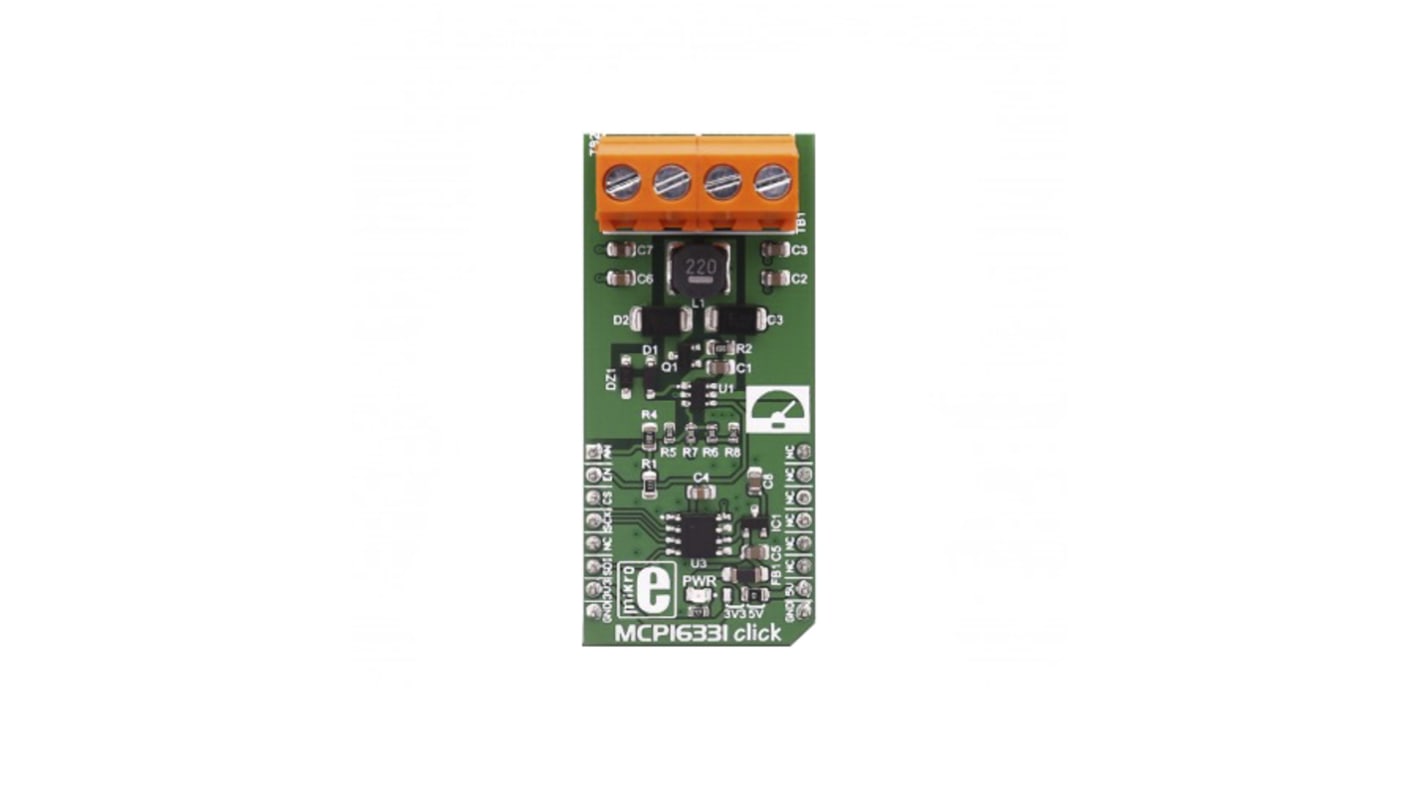

MikroElektronika MCP16331 Click Voltage Regulator Add On Board MIKROE-2762

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

MCP16331 click functions as a non-inverting buck-boost voltage regulator, a type of switching mode power supply topology that combines the principles of the Buck converter (step-down) and the Boost converter (step-up) in a single circuit. The Buck converter produces a DC output in a range from 0V to just less than the input voltage. The Boost converter produces an output voltage ranging from the same voltage as the input to a level much higher than the input. The MCP16331 click itself produces constant DC voltage on the output rails, which can be set in the code.

Specifications
Attribute Value
Kit Classification Add On Board
Kit Name MCP16331 Click
7 In stock - FREE next working day delivery available
Price Each
£ 17.03
(exc. VAT)
£ 20.44
(inc. VAT)
Units
Per unit
1 - 4
£17.03
5 - 9
£16.57
10 - 24
£16.13
25 - 49
£15.72
50 +
£15.33
