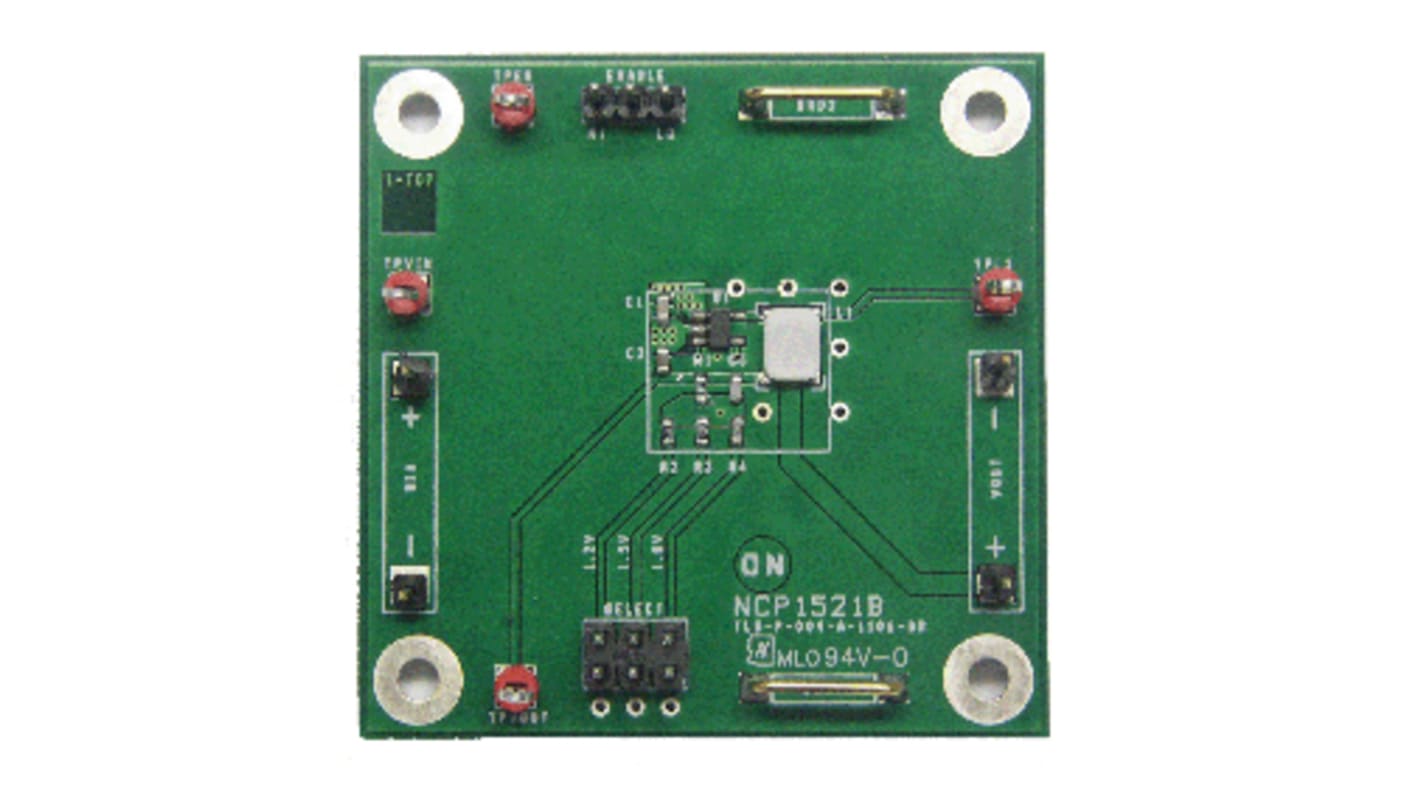

onsemi Step Down Converter Evaluation Board DC-DC Converter for NCP1521BSNT1G for Step Down Converter
- RS Stock No.:
- 161-0791
- Mfr. Part No.:
- NCP1521BEVB
- Brand:
- ON Semiconductor
Discontinued
- RS Stock No.:
- 161-0791
- Mfr. Part No.:
- NCP1521BEVB
- Brand:
- ON Semiconductor
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ON Semiconductor | |
| Power Management Function | DC-DC Converter | |
| For Use With | Step Down Converter | |
| Kit Classification | Evaluation Board | |
| Featured Device | NCP1521BSNT1G | |
| Kit Name | Step Down Converter Evaluation Board | |
| Select all | ||
|---|---|---|
Brand ON Semiconductor | ||
Power Management Function DC-DC Converter | ||
For Use With Step Down Converter | ||
Kit Classification Evaluation Board | ||
Featured Device NCP1521BSNT1G | ||
Kit Name Step Down Converter Evaluation Board | ||
The NCP1521B step-down PWM DC-DC converter is optimized for portable applications powered from one cell Li-ion or three cell Alkaline/NiCd/NiMH batteries. The part is available in adjustable output voltage versions ranging from 0.9 V to 3.3 V. It uses synchronous rectification to increase efficiency and reduce external part count. The device also has a built-in 1.5 MHz (nominal) oscillator which reduces component size by allowing smaller inductors and capacitors. Automatic switching PWM/PFM mode offers improved system efficiency. Additional features include integrated soft-start, cycle-by-cycle current limiting and thermal shutdown protection. The NCP1521B is available in space saving, low profile TSOP5 and UDFN6 packages.
