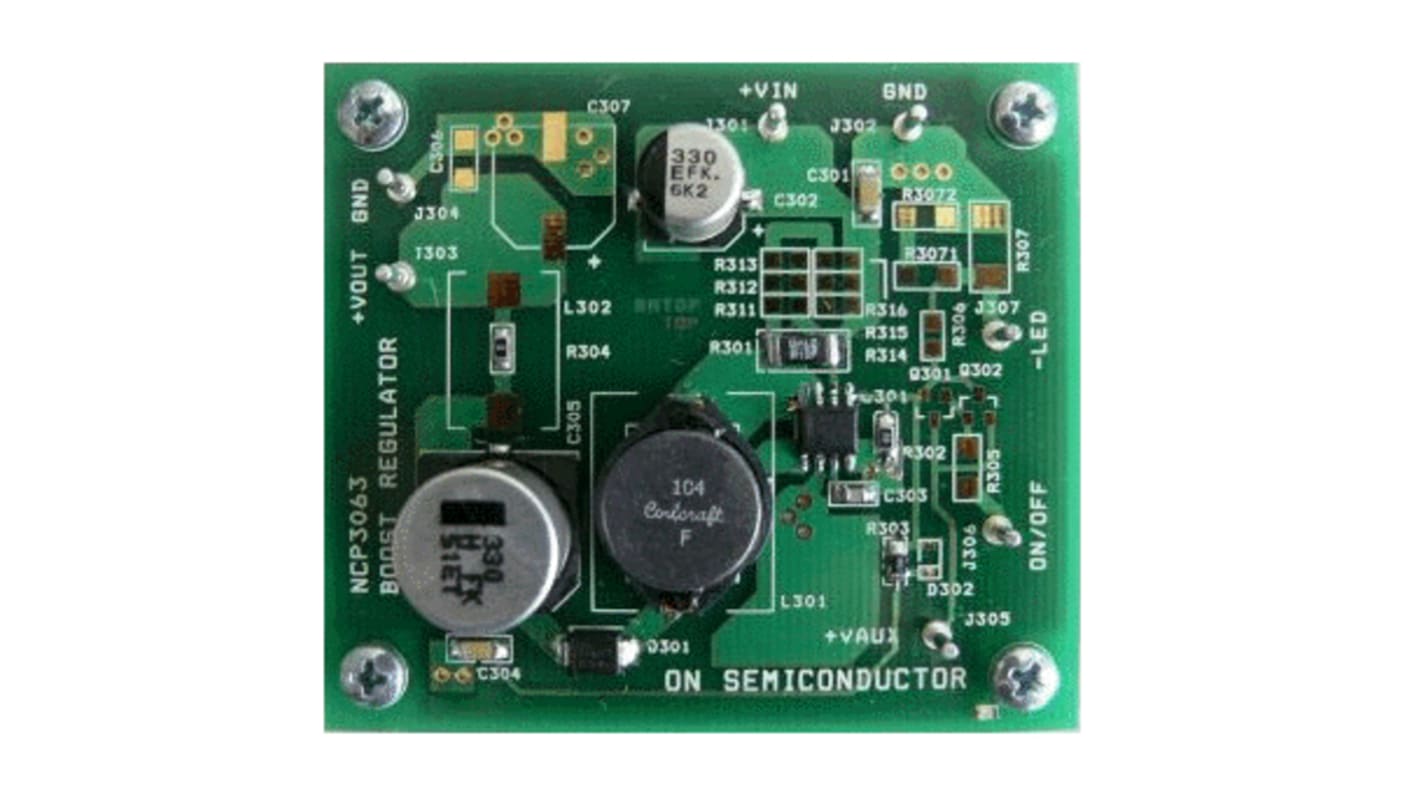

onsemi Surface Mount Boost Regulator Evaluation Board Boost Regulator for NCP3063DR2G for Surface Mount Boost Regulator

View this category
Discontinued
RS Stock No.:
161-0710
Mfr. Part No.:
NCP3063SMDBSTEVB
Brand:
ON Semiconductor
Find similar products by selecting one or more attributes.
Select all

Brand

ON Semiconductor

Power Management Function

Boost Regulator

For Use With

Surface Mount Boost Regulator

Kit Classification

Evaluation Board

Featured Device

NCP3063DR2G

Kit Name

Surface Mount Boost Regulator Evaluation Board

The NCP3063 Series is a performance enhancement to the popular MC33063 and MC34063 monolithic DC_DC converters. These devices consist of an internal temperature compensated reference, comparator, controlled duty cycle oscillator with an active current limit circuit, driver and high output current switch. This controller was specifically designed to be incorporated in step-down, step-up, or voltage inverting applications with a minimum number of external components. The NCP3063 Boost Evaluation Board is a 250 kHz maximum switching frequency board with a 12 V input (9V - 15V). The output is 24V with a load current from 50 mA to 350 mA with the efficiency higher than 85% (at 150 kHz). The board is well suited for general purpose step-up applications as well as LED lighting applications.

250 kHz maximum switching frequency
9V to 15V input voltage range
Efficiency greater than 85% at 150 kHz
