onsemi Current Control Forward/Reverse DC Motor Driver Evaluation Board Motor Driver for STK681-332-E for Current
- RS Stock No.:
- 161-0659
- Mfr. Part No.:
- STK681-332GEVB
- Brand:
- onsemi
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 161-0659
- Mfr. Part No.:
- STK681-332GEVB
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Power Management Function | Motor Driver | |
| For Use With | Current Control Forward and Reverse DC motor | |
| Kit Classification | Evaluation Board | |
| Featured Device | STK681-332-E | |
| Kit Name | Current Control Forward/Reverse DC Motor Driver Evaluation Board | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Power Management Function Motor Driver | ||
For Use With Current Control Forward and Reverse DC motor | ||
Kit Classification Evaluation Board | ||
Featured Device STK681-332-E | ||
Kit Name Current Control Forward/Reverse DC Motor Driver Evaluation Board | ||

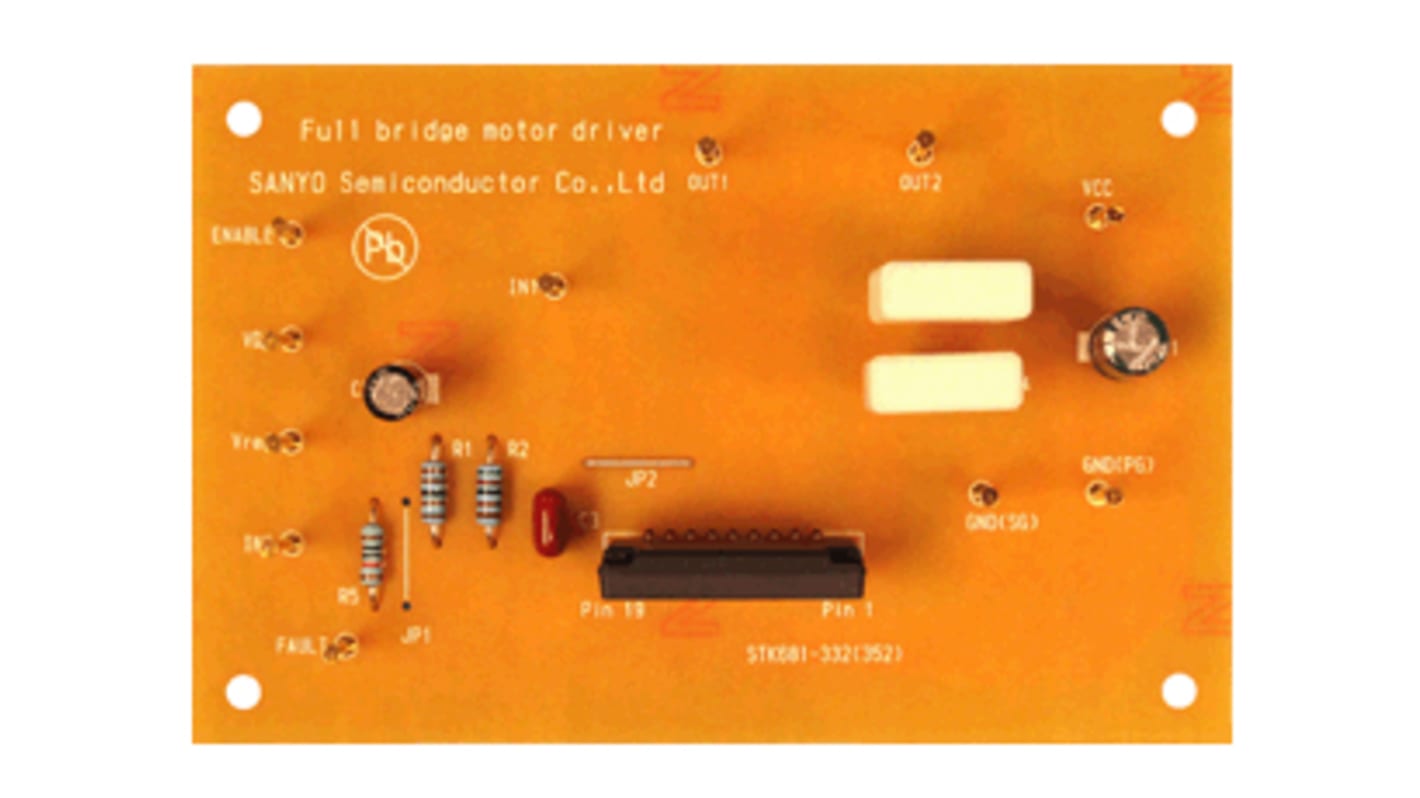

STK681-332-E is a hybrid IC for use in current control forward/reverse DC motor driver for brush motors. It allows forward, reverse, and brake operations in accordance with the external input signal. The peak startup output current is 8.5A and the peak brake output current is 12A. Connecting an external current detection resistor allows over-current detection and peak current control in the PWM operation mode. And STK681-332-E has various protective functions built-in. They include function against over-current, overheating and short to ground and short to supply. And it obviate the need to design for the dead time in order to turn off the upper and lower drive devices when switching between the forward and reverse operation mode.
