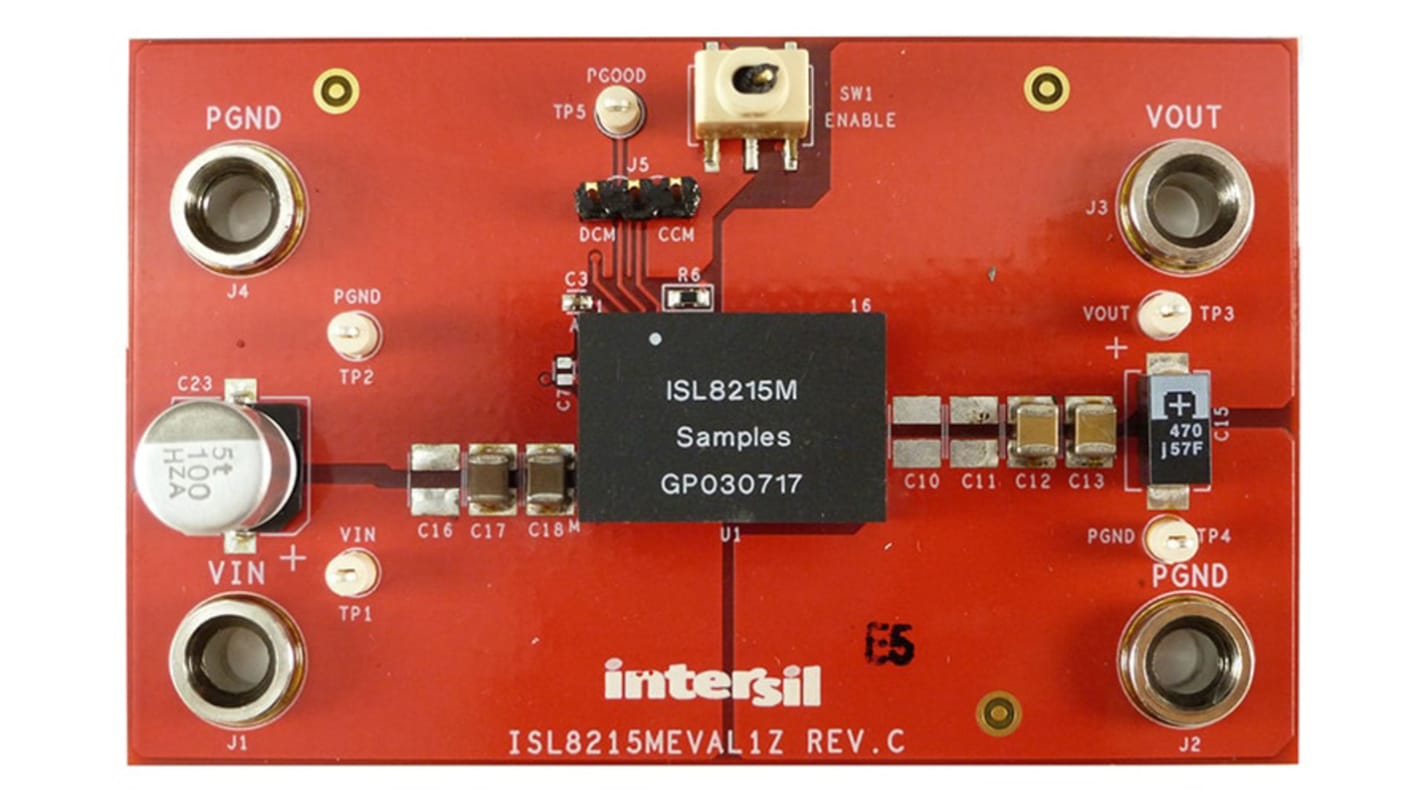

Intersil Single-Channel DC/DC Step-Down Power Module Evaluation Board DC-DC Controller for ISL8215M for Synchronous

View this category
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
158-5321
Mfr. Part No.:
ISL8215MEVAL1Z
Brand:
Intersil
Find similar products by selecting one or more attributes.
Select all

Brand

Intersil

Power Management Function

DC-DC Controller

For Use With

Synchronous Step-Down Power Supply

Kit Classification

Evaluation Board

Featured Device

ISL8215M

Kit Name

Single-Channel DC/DC Step-Down Power Module Evaluation Board

The ISL8215M power module is a single-channel, synchronous step-down, non-isolated complete power supply, capable of delivering up to 15A of continuous current. Operating from a single 7V to 42V wide input power rail and integrating the controller, power inductor, and MOSFETs, the ISL8215M requires only a few external components to operate and is optimized for space constrained applications. Based on a valley current mode PWM control scheme, the ISL8215M provides fast transient response and excellent loop stability.

15A single-channel complete power supply
Integrates controller, MOSFETs, and inductor
7V to 42V wide input voltage range
0.6V to 12V wide output voltage range
40ns on-time low duty cycle conversion capable
±1.5% accuracy over line, load, and temperature
Up to 96.5% efficiency
