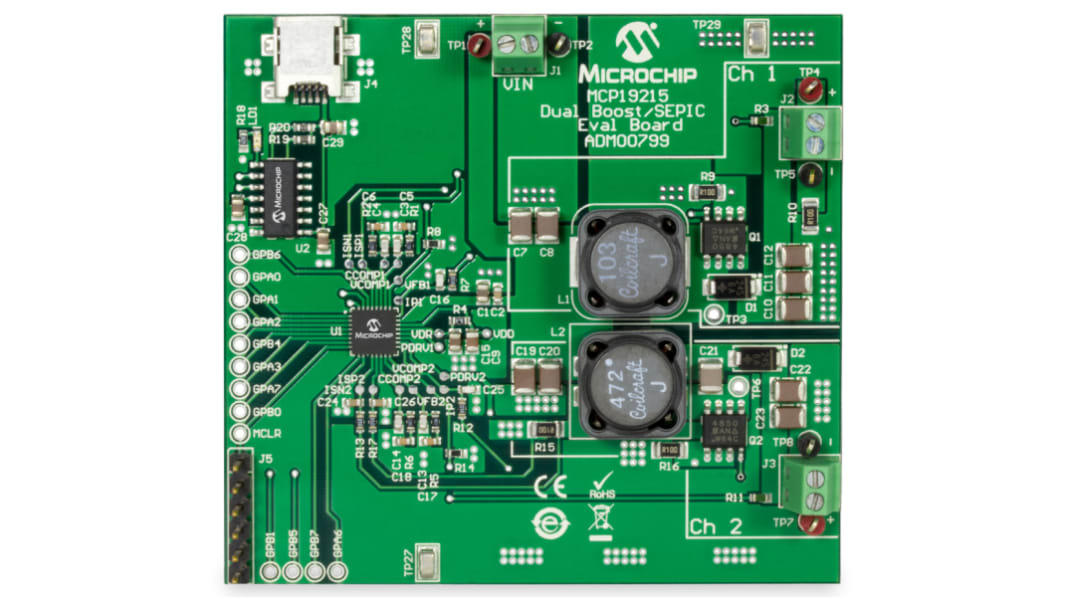

Microchip Dual Boost/SEPIC Evaluation Board Boost Controller for MCP19215 for Battery Charger, Bidirectional

View this category

Subtotal (1 unit)*

£131.32

(exc. VAT)

£157.58

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£131.32

*price indicative

RS Stock No.:
146-3386
Mfr. Part No.:
ADM00799
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Management Function

Boost Controller

For Use With

Battery Charger, Bidirectional Converters, LED Lighting Systems

Kit Classification

Evaluation Board

Featured Device

MCP19215

Kit Name

Dual Boost/SEPIC Evaluation Board

The MCP19215 Dual Channel Controller Evaluation Board demonstrates how the MCP19215 device operates in Boost and SEPIC topologies over a wide input voltage and load range. Nearly all operational and control system parameters are programmable by utilizing the integrated PIC controller.

Input voltage range: 8V to 15V
Output voltage: default 20V for both channels (can be software adjusted from input voltage + 1V to 24V for channel 1 and 9V to 24V for channel 2)
Default output current: 0.2A (can be software adjusted from 0A to 1A)
300 kHz switching frequency
Status report (including errors, input voltage, output voltage and current) via I2C communication
Under voltage lockout (UVLO) and overvoltage lockout (OVLO) with programmable thresholds (via software)
