Microchip Programming Board Power Management for MIC7400/1 for MIC7400/1 Devices

View this category
Unavailable
RS will no longer stock this product.
RS Stock No.:
146-3384
Mfr. Part No.:
ADM00760
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Power Management Function

Power Management

For Use With

MIC7400/1 Devices

Kit Classification

Programming Board

Featured Device

MIC7400/1

Kit Name

Programming Board

Priced to Clear

Yes

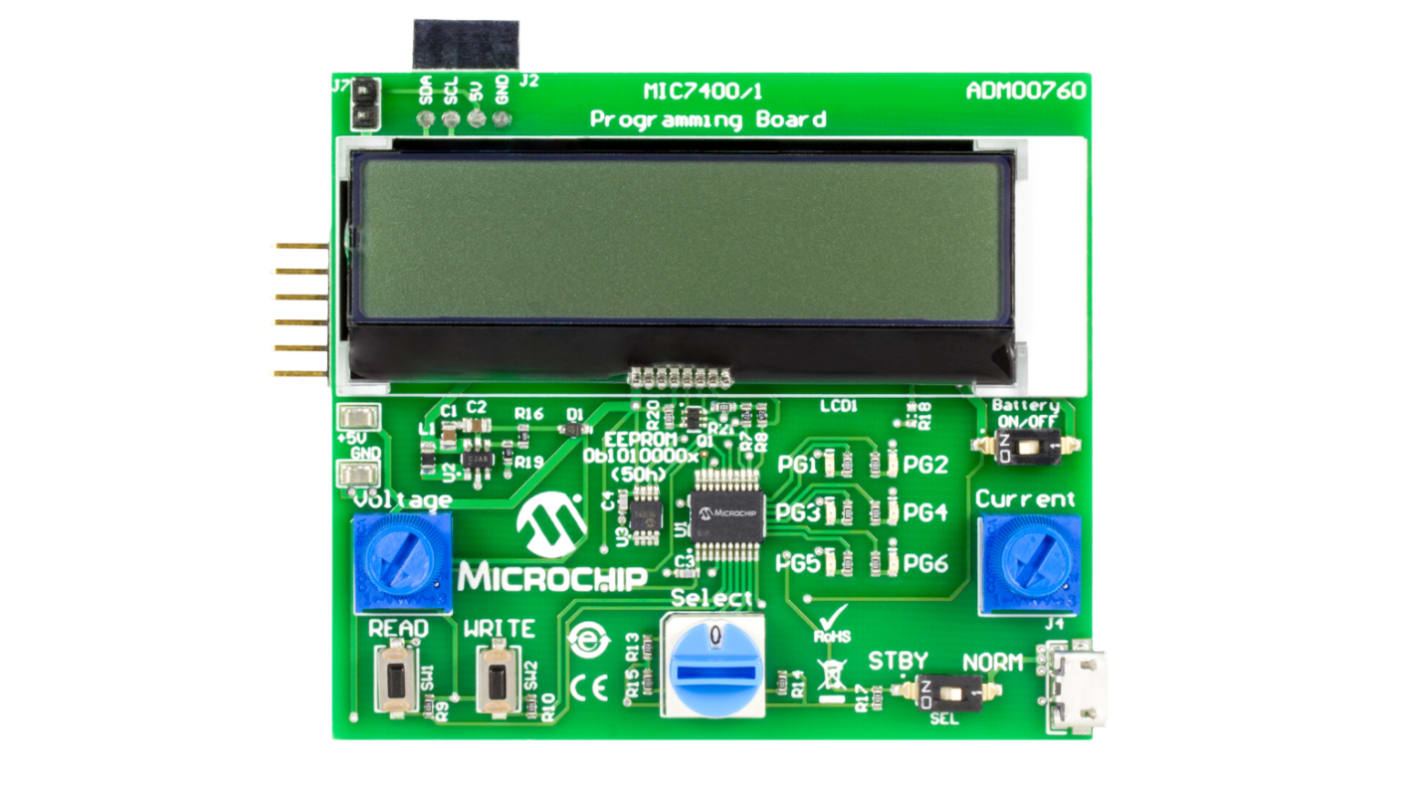

MIC7400/1 Programming Board was designed to demonstrate the MIC7400/1 Power Management IC (PMIC) when programmed by a microcontroller, using an easy-to-understand interface. The board offers increased functionality by the addition of an on-board EEPROM and allows copy, store and also reprogram all the registers in the MIC7400/1 devices.

Power options: stand-alone battery powered by one-coin cell (CR2032), USB or external 5V source
On-board EEPROM(2K) for MIC7400/1’s parameters backup and reprogramming
8 modes of operation for extensive functionality
Power-Good live LED indicators for all 6 outputs
LCD screen with intuitive text for an easy-to-use experience
MIC7400/1 device cloning when interfaced with the MIC7400/1 GUI, using the
MIC2221 integrated on the MIC7400 and MIC7401 Evaluation Boards.
