Microchip MIC4609 Evaluation Board for MIC4609 for MIC4609
- RS Stock No.:
- 123-8521
- Mfr. Part No.:
- ADM00749
- Brand:
- Microchip
Discontinued
- RS Stock No.:
- 123-8521
- Mfr. Part No.:
- ADM00749
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| For Use With | MIC4609 | |
| Kit Classification | Development Board | |
| Featured Device | MIC4609 | |
| Kit Name | MIC4609 Evaluation Board | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
For Use With MIC4609 | ||
Kit Classification Development Board | ||
Featured Device MIC4609 | ||
Kit Name MIC4609 Evaluation Board | ||

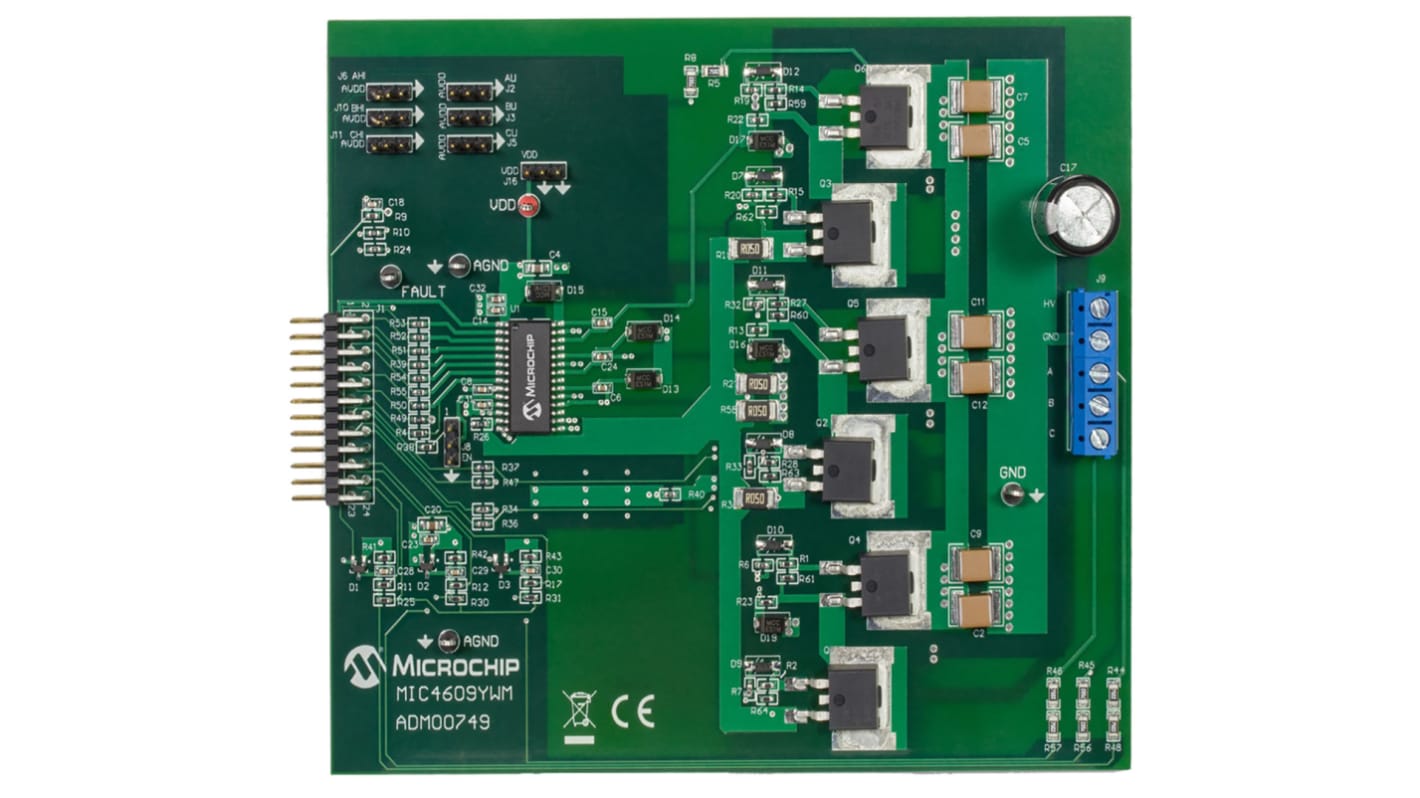

MIC4609 3-Phase Motor Gate Driver Demonstration Board
The Microchip MIC4609 Demonstration Board is a platform to evaluate the capabilities of the MIC4609 600V 3-Phase MOSFET/IGBT Driver. In addition to the featured MIC4609 the board provides 6 IGBTs configured as a 3-phase bridge, an overcurrent protection circuit and current/voltage sensing for closed loop motor control.
Features
MIC4609 600V 3-Phase MOSFET/IGBT Driver
Motor can be Directly Connected to the Board
6 Independent PWM Input Channels
Current Sensing on 2 Phases
Overcurrent Protection
Phase and Bus Voltage Sensing
Motor can be Directly Connected to the Board
6 Independent PWM Input Channels
Current Sensing on 2 Phases
Overcurrent Protection
Phase and Bus Voltage Sensing
Kit Contents
1 x MIC4609 3-Phase Motor Gate Driver Demonstration Board
Note
Motor is not included
