Intersil Buck Regulator for ISL85418
- RS Stock No.:
- 121-5918
- Mfr. Part No.:
- ISL85418DEMO1Z
- Brand:
- Intersil
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 121-5918
- Mfr. Part No.:
- ISL85418DEMO1Z
- Brand:
- Intersil
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Intersil | |
| Power Management Function | Buck Regulator | |
| Kit Classification | Development Board | |
| Featured Device | ISL85418 | |
| Priced to Clear | Yes | |
Select all | ||
|---|---|---|
Brand Intersil | ||
Power Management Function Buck Regulator | ||
Kit Classification Development Board | ||
Featured Device ISL85418 | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- US

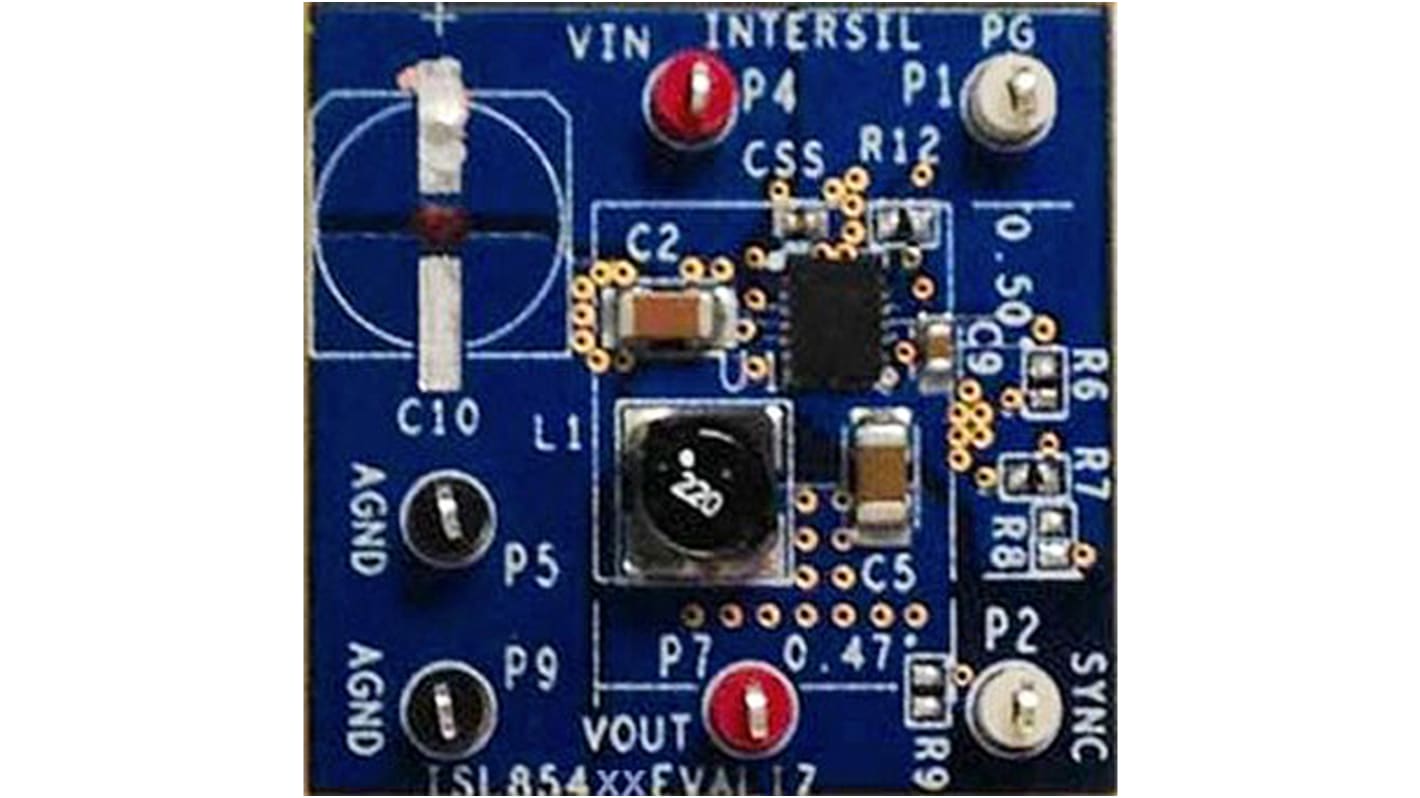

ISL8541x, 1A, 800mA, 500mA, 300mA, 150mA, Synchronous Buck Regulator Demonstration Boards, Intersil
The ISL8541xDEMO1Z Demonstration Boards are based on the ISL8541x, a wide input voltage, low quiescent current, high efficiency synchronous step down regulators. The continuous output current is up to 1 A (ISL85410), 800 mA (ISL85418), 500 mA (ISL85415), 300 mA (ISL85413), and 150 mA (ISL85412). They are intended for point-of-load applications.
Wide input voltage from 3 V to 40 V (ISL85410, ISL85412, ISL85413, ISL85418) and 3 V to 36 V (ISL85415)
Synchronous operation for high efficiency
No compensation required
Integrated high-side and low-side NMOS devices
Selectable PFM (Pulse Frequency Modulation) mode at light loads, or forced PWM (Pulse Width Modulation) mode
Internal fixed (500 kHz) or adjustable switching frequency 300 kHz to 2 MHz (ISL85410, ISL85415, ISL85418)
Internal switching frequency 700 kHz (ISL85412, ISL85413)
Internal or external soft-start (ISL85410, ISL85415, ISL85418)
Minimal external components required
Power-good and enable functions available
Synchronous operation for high efficiency
No compensation required
Integrated high-side and low-side NMOS devices
Selectable PFM (Pulse Frequency Modulation) mode at light loads, or forced PWM (Pulse Width Modulation) mode
Internal fixed (500 kHz) or adjustable switching frequency 300 kHz to 2 MHz (ISL85410, ISL85415, ISL85418)
Internal switching frequency 700 kHz (ISL85412, ISL85413)
Internal or external soft-start (ISL85410, ISL85415, ISL85418)
Minimal external components required
Power-good and enable functions available
Switching Voltage Regulators, Intersil
