Renesas Electronics Buck Regulator for ISL85003A
- RS Stock No.:
- 121-5913
- Mfr. Part No.:
- ISL85003ADEMO1Z
- Brand:
- Renesas Electronics
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price Each
£38.43
(exc. VAT)
£46.12
(inc. VAT)
Units | Per unit |
---|---|
1 - 1 | £38.43 |
2 - 4 | £37.66 |
5 - 9 | £35.36 |
10 - 24 | £33.43 |
25 + | £31.90 |
- RS Stock No.:
- 121-5913
- Mfr. Part No.:
- ISL85003ADEMO1Z
- Brand:
- Renesas Electronics
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

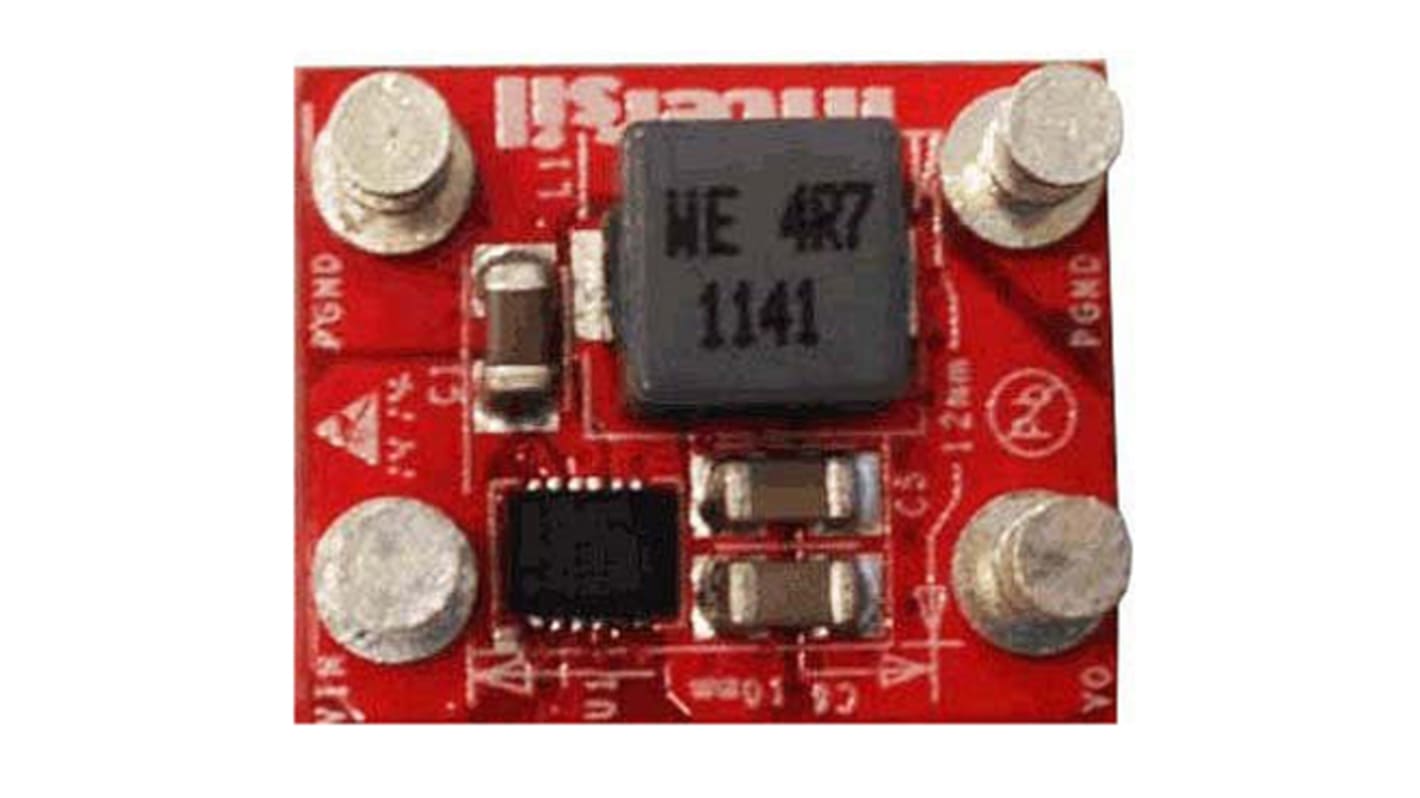

ISL85003(A) Highly Efficient 3A Synchronous Step-Down Regulator Demonstration Boards, Intersil
The ISL85003DEMO1Z and ISL85003ADEMO1Z Demonstration Boards are based on the ISL85003(A), a Highly Efficient 3 A Synchronous Buck Regulators with integrated high-side and low-side FETs. They are intended for point-of-load applications.
Input voltage from 4.5 V to 18 V
Continuous output current up to 3 A
Current mode control
Automatic switch between DCM and CCM mode
Internal or external compensation
Switching frequency 500 kHz
External synchronisation on the ISL85003
Adjustable soft-start time on the ISL85003A
Minimal external components required
Continuous output current up to 3 A
Current mode control
Automatic switch between DCM and CCM mode
Internal or external compensation
Switching frequency 500 kHz
External synchronisation on the ISL85003
Adjustable soft-start time on the ISL85003A
Minimal external components required
Switching Voltage Regulators, Intersil
Specifications
Attribute | Value |
---|---|
Power Management Function | Buck Regulator |
Kit Classification | Development Board |
Featured Device | ISL85003A |
