STMicroelectronics 3-phase Inverter Based On STSPIN32G0602 3-Phase Inverter for STSPIN32G0602 for PMSMs And Brushless

View this category

Subtotal (1 unit)*

£63.83

(exc. VAT)

£76.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£63.83

*price indicative

RS Stock No.:
667-412
Mfr. Part No.:
EVSPIN32G06Q2S1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Power Management Function

3-Phase Inverter

For Use With

PMSMs And Brushless DC Motors

Kit Classification

Evaluation Board

Featured Device

STSPIN32G0602

Kit Name

3-phase Inverter Based On STSPIN32G0602

COO (Country of Origin):
IT

Battery Charging & Monitoring Controllers, Microchip

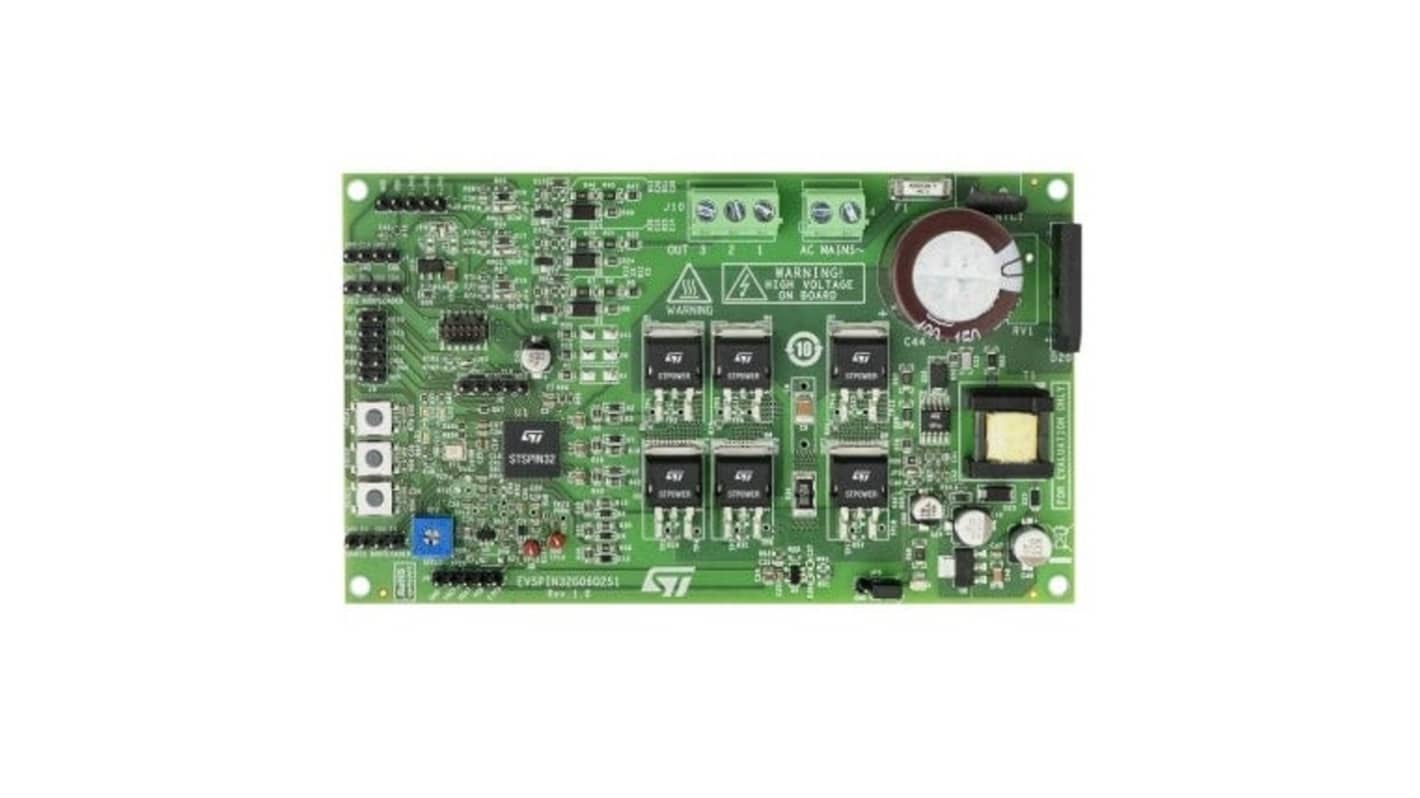

The STMicroelectronics Eval Board is a 3 phase complete inverter based on the STSPIN32G0602 controller, which embeds a 3‑phase 600 V gate driver and a Cortex -M0+ STM32 MCU. The board has a single shunt sensing topology, and both FOC and 6‑step control algorithms in either sensored or sensorless mode can be implemented. This allows driving permanent magnet synchronous motors (PMSMs) and brushless DC (BLDC) motors. Debug and configuration of firmware can be performed with standard STM32 tools through the STLINK debugger.

Smart shutdown overcurrent protection
Digital Hall sensors and encoder input
Bus voltage sensing
External connection through STLINK V3SET
Easy user interface with buttons and trimmer
RoHS compliant
