RS PRO RSPM-8310 Power Meter, 20A ac max, 20A dc max, 600V dc max

View all Power Meters

Subtotal (1 unit)*

£1,609.52

(exc. VAT)

£1,931.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,609.52

*price indicative

RS Stock No.:
273-2612
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Weight

2.9kg

Absolute Maximum AC Current Measurement

20A ac

Absolute Maximum DC Current Measurement

20A dc

Absolute Maximum DC Voltage Measurement

600V dc

Best DC Voltage Accuracy

0.1% (+0.2%)

Communication Protocol

USB

Best DC Current Accuracy

0.1% (+0.2%)

Power Source

Mains

Length

379mm

Model Number p

RSPM-8310

Plug Type

UK

Maximum Operating Temperature

+40°C

Dimensions

379 x 268 x 107mm

Height

107mm

Width

268mm

Minimum Operating Temperature

0°C

COO (Country of Origin):
TW

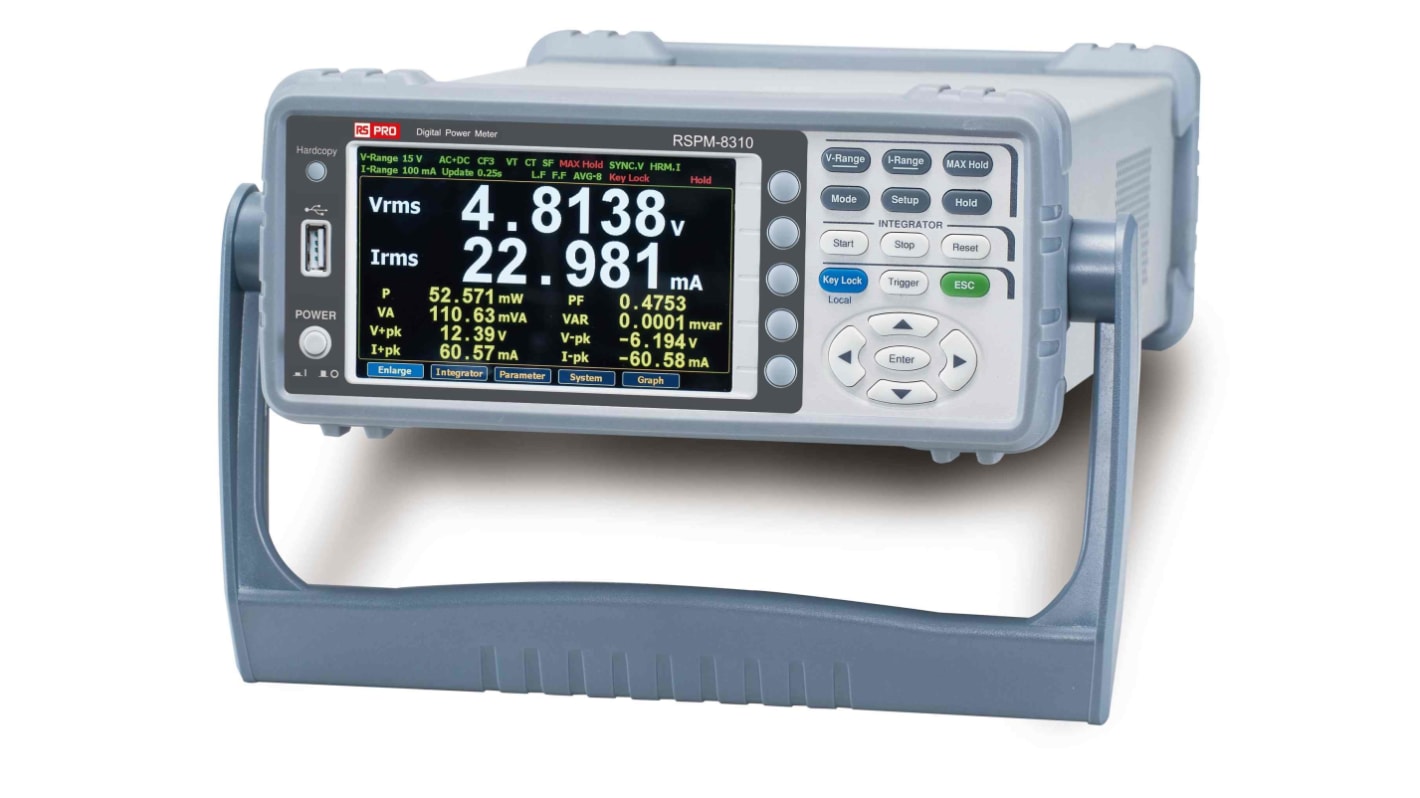

RS PRO RSPM-8310 Single Phase Power Meter


A digital power meter specifically designed for the measurement of single phase AC power supplies.

Highly accurate with a 5in TFT LCD display the AC power meter delivers high precision measurements across 25 measurement parameters.

A comprehensive single phase power meter with the ability to display wave form for current, voltage and power, integration measurement function, harmonic measurement with analysis and external sensor input. The RSPM-8310 comes with a range of interfaces including a RS-232, LAN, GPIB and USB for easy communication and data transfer.

Protected to a CAT II level rated for 600V the AC power meter features a user friendly front end using preset buttons and menu navigation the single phase AC power meter is comprehensive, accurate and simple to operate.

Supplied complete with 2 x VDE/UK power cords and 2 x test leads.

Features and Benefits


AC power meter

Single phase

5in TFT LCD display

25 measurement parameters

CAT II 600V

Test bandwidth 0.1Hz ∼ 100kHz (DC)

Direct current display range 0 – 20A

Voltage display range 0 – 600V

Active Power display range 0 – 7.2kW

Sampling rate of 300 kHz

RS232, LAN, USB interfaces, GPIB

Button navigation

Dimensions 379 x 288 x 107mm

Weight of 2.9kg

Standards and Approvals: EN 61010-1: 2010 & A1:2019, EN IEC 61010-2-030:2021 & A11:2021, EN 61326-1: 2013, EN 61326-2-1: 2013
