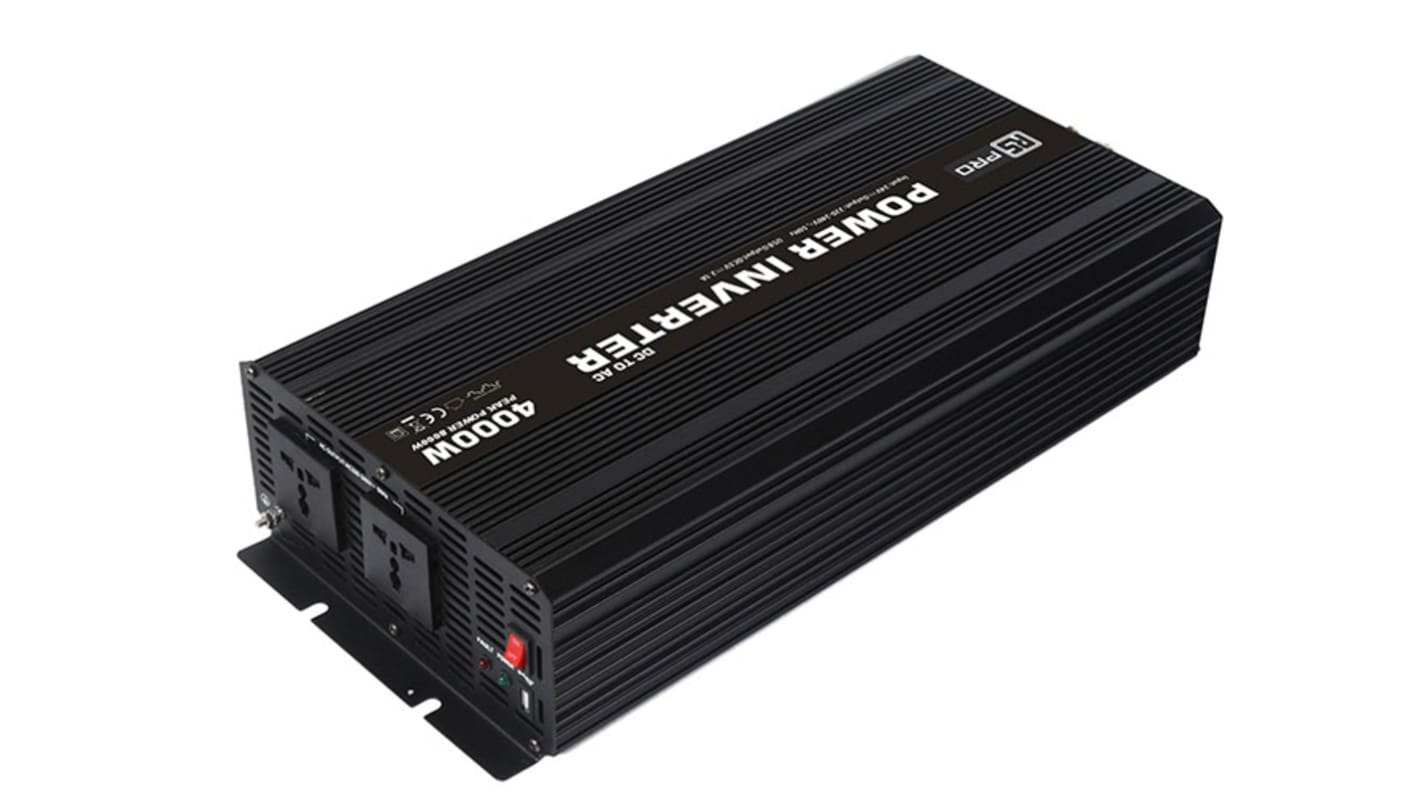

RS PRO Modified Sine Wave 4000W Power Inverter, 24V dc Input, 230V ac Output
- RS Stock No.:
- 816-0087
- Brand:
- RS PRO
Available to back order for despatch 21/10/2024
Price Each
£597.56
(exc. VAT)
£717.07
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £597.56 |
| 5 - 9 | £579.63 |
| 10 - 24 | £561.70 |
| 25 - 49 | £543.78 |
| 50 + | £525.85 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 816-0087
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Modified Sine Wave, 100W to 5000W, Universal UK/Euro Output Sockets with USB
Modified sine wave inverters, with universal UK/Euro output socket and USB socket. These modified sine wave inverters come in an anodized aluminium case for durability and maximum heat dissipation. The car power inverter features 2 indicators showing the working and failure state and an ON/OFF switch to control the inverter manually. These modified sine wave inverters come with protections for over voltage, overload, over temperature, short circuit, reverse polarity and low voltage alarm & shutdown.
Features & Benefits
• Universal UK/Euro output Socket
• ON/OFF switch control the inverter by hand
• Anodized aluminium case provides durability & max heat dissipation
• Two LED indicators on the front panel shows the working and failure state
• The inverter is compact, lightweight and easy to operate
• Over voltage, Overload, over temperature, Short circuit, reverse Polarity protection
• Low voltage alarm & Shutdown
• Auto. Reset after being in protected
• Soft Start
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 24V dc |
| Output Voltage | 230V ac |
| Output Power Continuous | 4000W |
| Output Power Intermittent | 8000W |
| Output Power Waveform | Modified Sine Wave |
| Output Connection Type | Universal |
| Length | 520mm |
| Width | 230mm |
| Depth | 108mm |
| Weight | 8.2kg |
| Minimum Temperature | 0°C |
| Protection Features | Over Temperature Protection, Over Voltage Protection, Overload Protection, Reverse Polarity Protection, Short Circuit Protection |
| Maximum Temperature | +40°C |
| Special Features | Compact, East to Operate, LED Indicators, Lightweight |
| Output Frequency Range | 50/60Hz |
