RS PRO Pure Sine Wave 2400W DC AC Inverter, 24V dc Input, 230V ac Output, Railway Approved
- RS Stock No.:
- 267-5163
- Brand:
- RS PRO
2 In stock - FREE next working day delivery available
Added
Price Each
£3,121.76
(exc. VAT)
£3,746.11
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £3,121.76 |
| 5 - 9 | £3,028.11 |
| 10 - 24 | £2,934.46 |
| 25 - 49 | £2,840.80 |
| 50 + | £2,747.15 |
- RS Stock No.:
- 267-5163
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- ES
Product Details

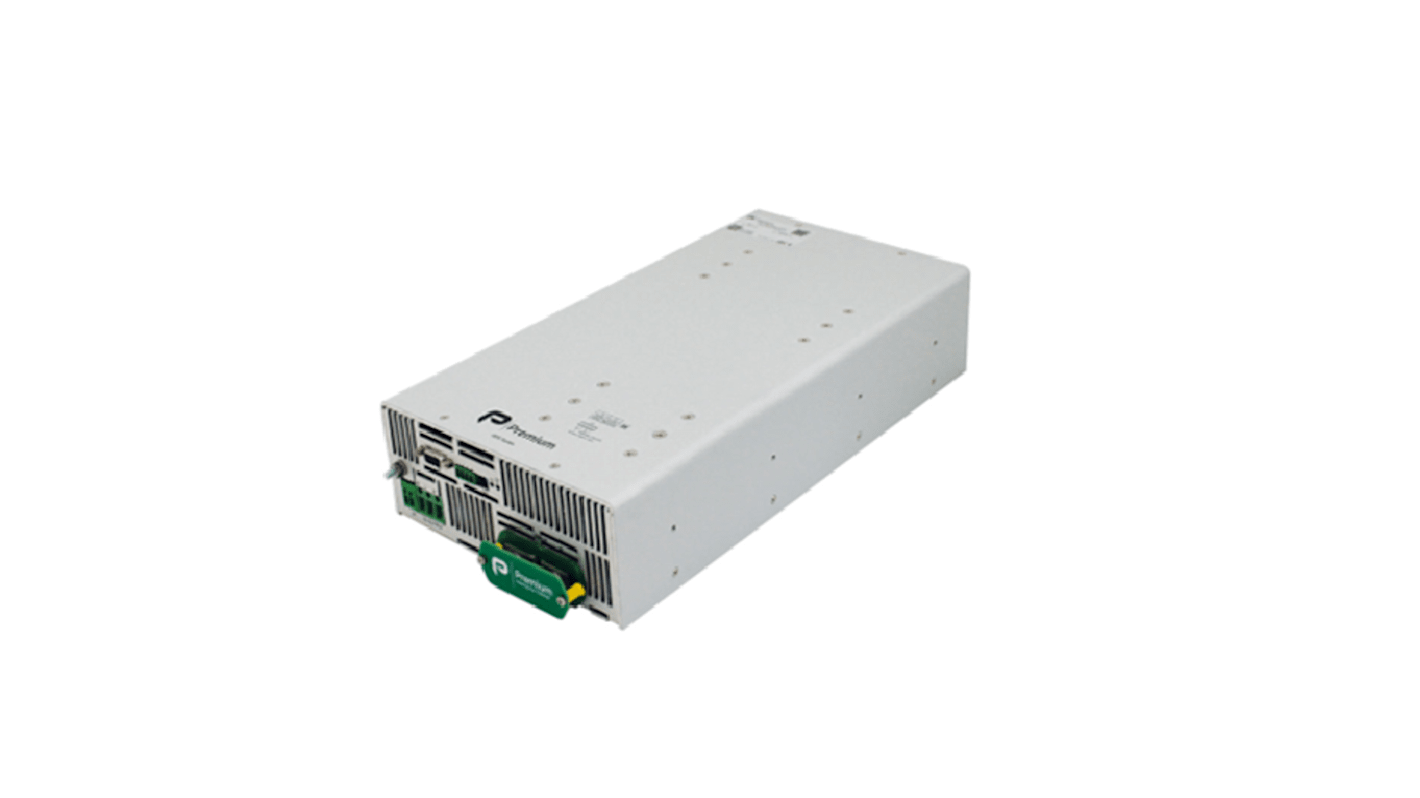

RS PRO 2400W Railway Approved DC-AC Power Inverter (230V Output)
A hardwearing and reliable DC-AC inverter for the conversion of an unregulated (DC) 24V power source (for instance a battery) to a Pure Sinewave 230V AC output. Suitable for use with a wide range of equipment and featuring adjustable output voltage for the operation of sensitive equipment.
The DC-AC power inverter is easy to use and compatible with remote controls using the RS 232 port or to alarms using the isolated relay contacts.
The DC-AC inverter features maximum average power and maximum output peak current protection to protect the unit in cases of output short circuit and a disable function for input under-voltage to protect batteries from discharge. On top of this the DC-AC inverter provides protection to the equipment being powered isolating the device from the power supply with its high input-output isolation of 3000Vrms (voltage regulator modules)
Enclosed in a sturdy metal case with resistance to shock and vibration and suitable for chassis mounting the 230V power inverter is suitable for a wide range of industries including marine, industrial control systems and approval for use in railway applications.
Features and Benefits
DC-AC power inverter
Pure Sinewave
24V dc input voltage
Input voltage range of 16.8 to 30V
230V output voltage (adjustable)
Output current of 10.4A
2400W output power
Output current alarm
Chassis mount
Air cooled
RS-232 port
Input-output Isolation 3000Vrms
Efficiency of 89%
Railway Approved
Maximum average power protection
Maximum output peak current protection
Input under voltage disable function
Chassis mount
Output via a cable size of up to 4mm
Pure Sinewave
24V dc input voltage
Input voltage range of 16.8 to 30V
230V output voltage (adjustable)
Output current of 10.4A
2400W output power
Output current alarm
Chassis mount
Air cooled
RS-232 port
Input-output Isolation 3000Vrms
Efficiency of 89%
Railway Approved
Maximum average power protection
Maximum output peak current protection
Input under voltage disable function
Chassis mount
Output via a cable size of up to 4mm
Standards and Approvals: EN50155, EN45545-2
Why RS PRO?
RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
Specifications
Attribute | Value |
|---|---|
| Input Voltage | 24V dc |
| Output Voltage | 230V ac |
| Output Power Continuous | 2400W |
| Railway Approved | Yes |
| Output Power Intermittent | 2400VA |
| Output Power Waveform | Pure Sine Wave |
| Output Connection Type | Terminal Strip |
| Efficiency | 89% |
| MTBF | 100000h |
| Output Current | 10.4A |
| Length | 395mm |
| Width | 194mm |
| Depth | 78.5mm |
| Weight | 6kg |
| Inverter Directionality | DC to AC |
| Protection Features | Isolated Protection |
| Output Frequency Range | 50/60Hz |
| Maximum Input Current | 161A |
| Mounting Type | Chassis Mount |
| Output Electrical Phase | 1 |
