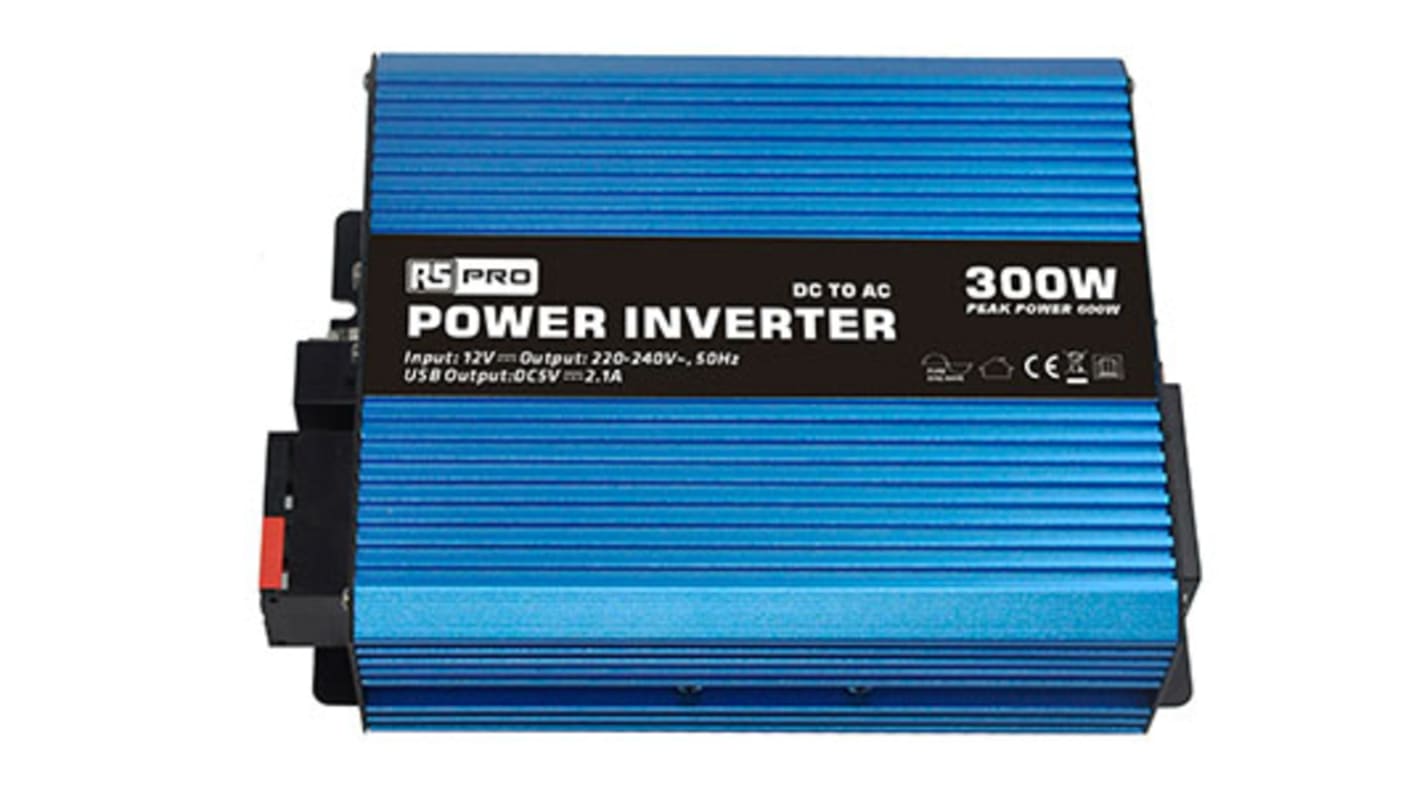

RS PRO Pure Sine Wave 300W Power Inverter, 12V Input, 230V Output

View all Power Inverters
Bulk discount available

Subtotal (1 unit)*

£110.50

(exc. VAT)

£132.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 97 unit(s) ready to ship
  • Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£110.50
5 - 9£107.18
10 - 24£103.87
25 - 49£100.55
50 +£97.24

*price indicative

RS Stock No.:
179-3325
Distrelec Article No.:
304-06-883
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Input Voltage

12V

Output Voltage

230V

Output Power Continuous

300W

Output Power Intermittent

350W

Output Power Waveform

Pure Sine Wave

Output Connection Type

Universal

Efficiency

>90%

MTBF

50000h

Output Current

2.61A

Length

204.2mm

Width

150mm

Depth

58mm

Weight

1.4kg

Minimum Temperature

-20°C

Mounting Type

Chassis Mount

Output Frequency Range

50Hz

Inverter Directionality

DC to AC

Number of Output Connections

1

Maximum Temperature

+50°C

Maximum Input Current

50A

Standards Met

CE, ECE R10.05:2014, EN 60950-1, EN 61000-6-1, EN 61000-6-3

Output Electrical Phase

1

COO (Country of Origin):
CN

RS PRO 300 W Fixed Installation DC-AC Power Inverter, 12 V / 230 V


Part of our trusted RS PRO range, this 300 W fixed installation DC to AC power inverter is a compact electrical device that can be coupled with a car battery and used to charge appliances.

Devices that plug into wall sockets run on alternating current (AC). The other electrical current is direct current (DC), which most car batteries generate. If you need to power your devices on the road, a DC to AC power inverter like this one can be used to bridge the gap.

This inverter produces pure sine wave, which is best suited for laptops and other smart devices that are sensitive to fluctuating currents. Its robust anodised aluminium case provides excellent heat dissipation. The unit is also provided with inbuilt protection against overheating and short-circuiting.

This product conforms to the EN 61000-6-3 standard on electromagnetic compatibility as well as EN 60950-1, which denotes safe-tested information technology equipment.

Features and Benefits


• DC-AC power inverter
• Chassis mounting
• Pure sine wave
• One output connection
• Single-phase electrical output
• Input voltage of 12 V
• Output voltage of 230 V
• Continuous power output of 300 W
• Intermittent power output of 350 W
• Surge power of 600 W
• Universal output connection type
• Efficiency rating over 90%
• Mean time between failures of 50,000 h
• Output current of 2.61 A
• Maximum input of 50 A
• Length of 204.2 mm
• Width of 150 mm
• Depth of 58 mm
• Weight of 1.4 kg
• Operating temperature range of -20°C to +50°C
• Output frequency range of 50 Hz ±3
• Conforms to standards ECE R10.05:201 and EN 61000-6-3 on electromagnetic compatibility
• Meets EN 60950-1 on safe information technology equipment
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS (Restriction of Hazardous Substances) compliant
