Sollatek Refrigeration control 16A Over Voltage and Under Voltage, 3680VA, Chassis
- RS Stock No.:
- 848-4500
- Mfr. Part No.:
- 92344000
- Brand:
- Sollatek
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 848-4500
- Mfr. Part No.:
- 92344000
- Brand:
- Sollatek
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sollatek | |
| Input Voltage | 230V ac | |
| Output Power | 3680VA | |
| Output Current | 16A | |
| Number of Outlets | 1 | |
| Mounting Type | Chassis | |
| Maximum Operating Frequency | 75Hz | |
| Maximum Temperature | +55°C | |
| Minimum Operating Frequency | 45Hz | |
| Minimum Temperature | 0°C | |
| Voltage Protection Mode | Under and Over Voltage | |
| Protection Type | Over Voltage and Under Voltage | |
| Standards Met | ISO9001:2008 | |
| Wiring Configuration | L N E | |
| Electrical Phase | 1 | |
Select all | ||
|---|---|---|
Brand Sollatek | ||
Input Voltage 230V ac | ||
Output Power 3680VA | ||
Output Current 16A | ||
Number of Outlets 1 | ||
Mounting Type Chassis | ||
Maximum Operating Frequency 75Hz | ||
Maximum Temperature +55°C | ||
Minimum Operating Frequency 45Hz | ||
Minimum Temperature 0°C | ||
Voltage Protection Mode Under and Over Voltage | ||
Protection Type Over Voltage and Under Voltage | ||
Standards Met ISO9001:2008 | ||
Wiring Configuration L N E | ||
Electrical Phase 1 | ||
- COO (Country of Origin):
- CN

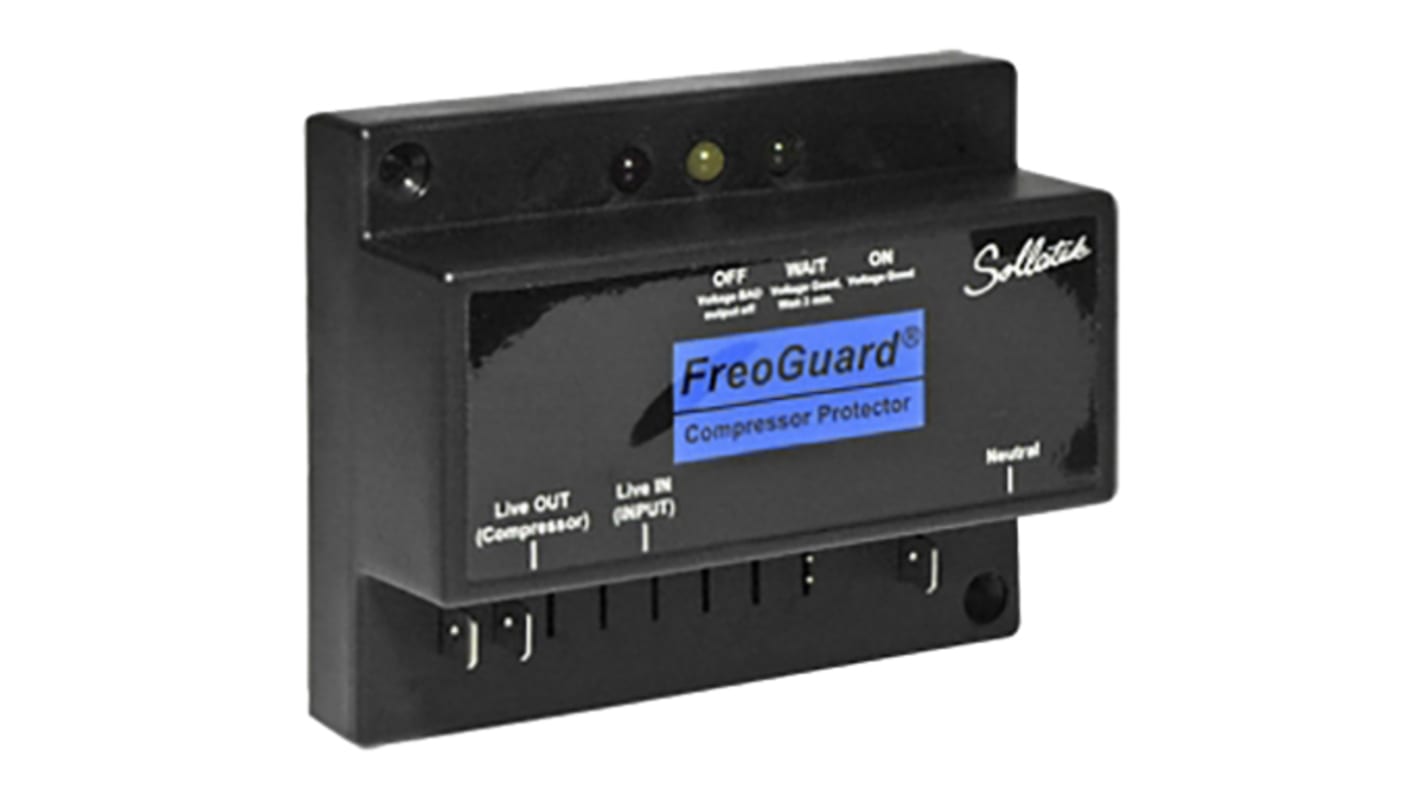

Sollatek Refrigeration Control
The FreoGuard protect equipment by disconnecting the mains supply when it goes either below or above pre-set acceptable limits. It also has an Intelligent time delay* providing added protection against frequent stops and starts
• High-voltage protection
• Low voltage protection
• Spike / surge protection
• Water splash resistance for rugged applications
• Suitable for air conditioners up to 30A or 24000
• Low voltage protection
• Spike / surge protection
• Water splash resistance for rugged applications
• Suitable for air conditioners up to 30A or 24000
Features and Benefits:
Temperature control, energy saving, voltage protection and stabilisation for:
• Fridges and freezers
• Coolers
• Drinks dispensers
• Chiller cabinets
• Refrigerated displays
• Vending machines
• Coolers
• Drinks dispensers
• Chiller cabinets
• Refrigerated displays
• Vending machines
Transient Voltage Suppressors (Mains, Domestic)
Voltage surges, often referred to as spikes or transient overvoltages are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. For protecting mains power systems, categories A, B and C (mains) devices are used. All mains style products in this section are location category B and exceed the requirements of location category A making them suitable for use in both locations.
