RS PRO 1 mm² 5 Core Power Cable, White Polyvinyl Chloride PVC, 100m
- RS Stock No.:
- 811-4403
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 811-4403
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | White | |
| Length | 100m | |
| Current Rating | 10 A | |
| Outer Diameter | 9.26mm | |
| Sheath Material | Polyvinyl Chloride PVC | |
| Voltage Rating | 300/500 V | |
| Conductor Strand Type | Stranded | |
| Insulation Material | PVC Type TI1 to BS7655 | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +70°C | |
| Size of Strands | 0.2 mm | |
| Core Strands | 32/0.2 mm | |
| Minimum Operating Temperature | -15°C | |
| Conductor Resistance | 19.5 Ω/km | |
| American Wire Gauge | 17 AWG | |
| Number of Strands | 32 | |
| Standards Met | BS EN 50525 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1 mm² | ||
Number of Cores 5 | ||
Sheath Colour White | ||
Length 100m | ||
Current Rating 10 A | ||
Outer Diameter 9.26mm | ||
Sheath Material Polyvinyl Chloride PVC | ||
Voltage Rating 300/500 V | ||
Conductor Strand Type Stranded | ||
Insulation Material PVC Type TI1 to BS7655 | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
Size of Strands 0.2 mm | ||
Core Strands 32/0.2 mm | ||
Minimum Operating Temperature -15°C | ||
Conductor Resistance 19.5 Ω/km | ||
American Wire Gauge 17 AWG | ||
Number of Strands 32 | ||
Standards Met BS EN 50525 | ||
- COO (Country of Origin):
- GB

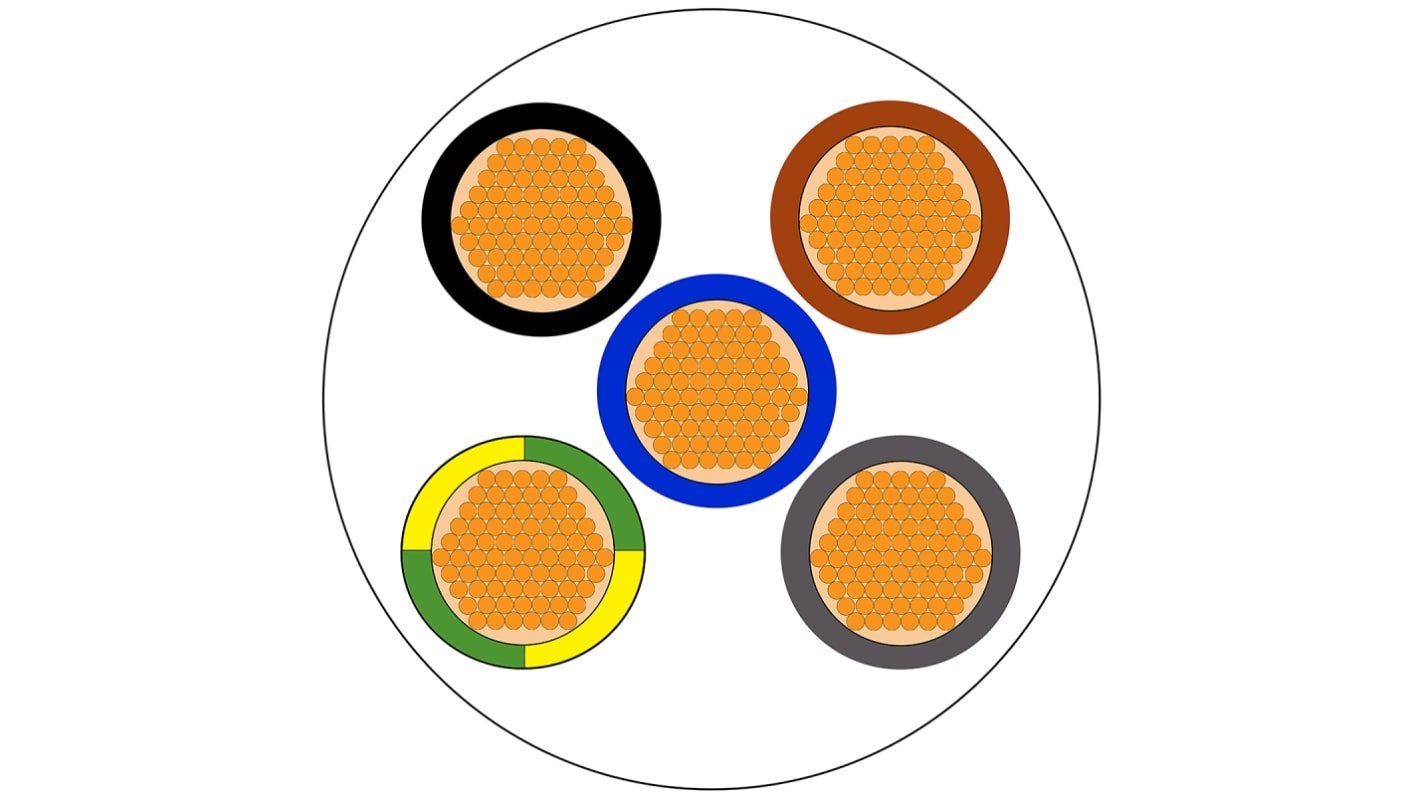

BASEC approved H05VVF/3185Y 5 Core Cable
A light duty mains power cable that is ideal use in domestic appliances, kitchens and offices. They are also designed for use with light portable appliances such as radios, table lamps and office equipment.
Features and Benefits
• PVC insulation and sheath
• Flexible copper conductor - EN 60228 Class 5
• Available in a range of sizes
• BASEC certified
Note
Cable is not suitable for outdoor use or industrial applications
