RS PRO Arctic Grade 0.75 mm² 3 Core Power Cable, Blue PVC, 100m
- RS Stock No.:
- 776-1967
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£150.43
(exc. VAT)
£180.52
(inc. VAT)
- RS Stock No.:
- 776-1967
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.75 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Blue | |
| Length | 100m | |
| Cable Type | Arctic Grade | |
| Sheath Material | PVC | |
| Outer Diameter | 6.7mm | |
| Voltage Rating | 300 V, 500 V | |
| Conductor Strand Type | Stranded | |
| Standards Met | BS 3183Y AG | |
| Insulation Material | Arctic Grade PVC | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Maximum Operating Temperature | +70°C | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | -20°C | |
| Conductor Resistance | 26 W/km | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75 mm² | ||
Number of Cores 3 | ||
Sheath Colour Blue | ||
Length 100m | ||
Cable Type Arctic Grade | ||
Sheath Material PVC | ||
Outer Diameter 6.7mm | ||
Voltage Rating 300 V, 500 V | ||
Conductor Strand Type Stranded | ||
Standards Met BS 3183Y AG | ||
Insulation Material Arctic Grade PVC | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Maximum Operating Temperature +70°C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -20°C | ||
Conductor Resistance 26 W/km | ||
- COO (Country of Origin):
- CN
Arctic Grade Cable
Features and Benefits
3 core 300/500V

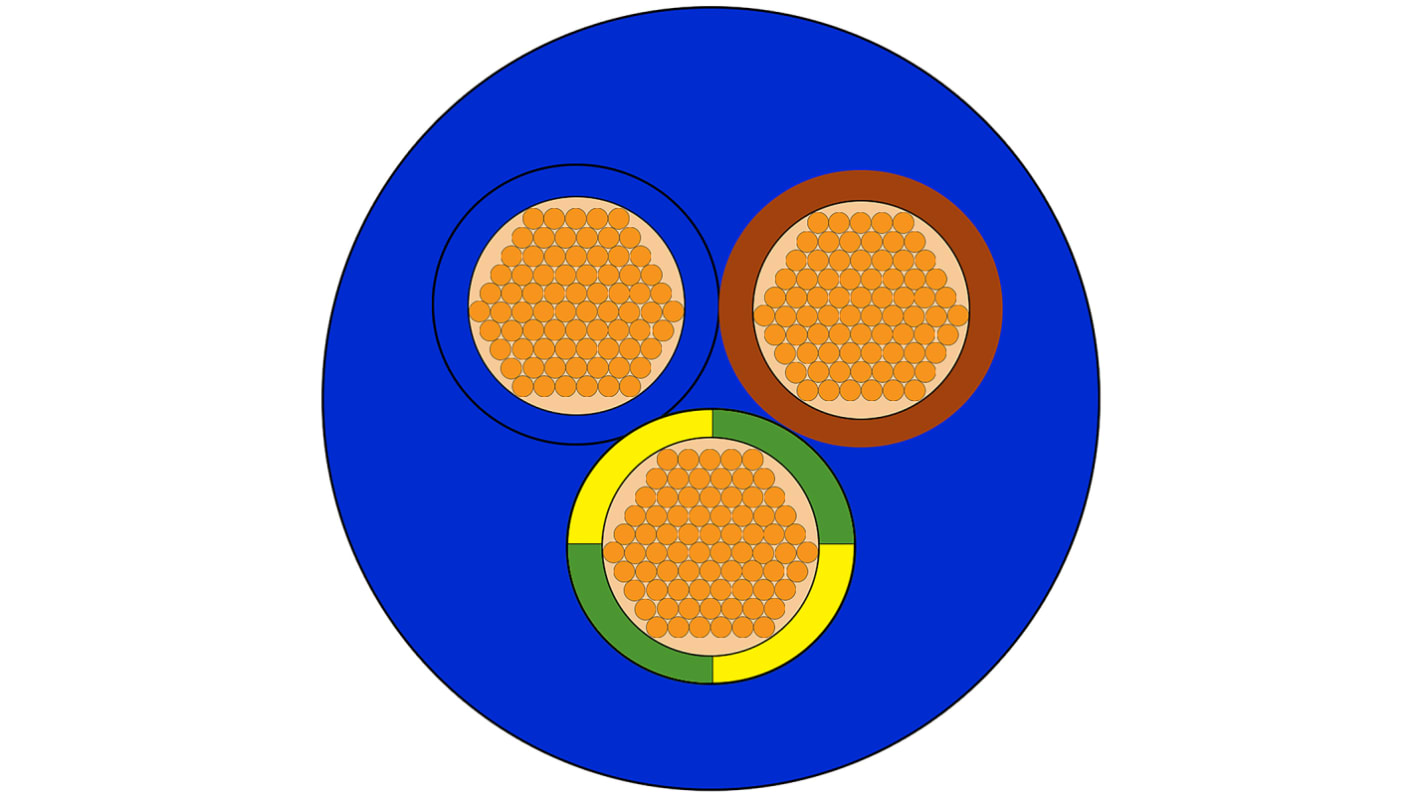

Cores: Blue/brown/green-yellow
Complies fully with the requirements of BS6500
Temperature Range: -20°C to 70°C
Note
The number of strands used in the construction of the cores is nominal and may vary.
