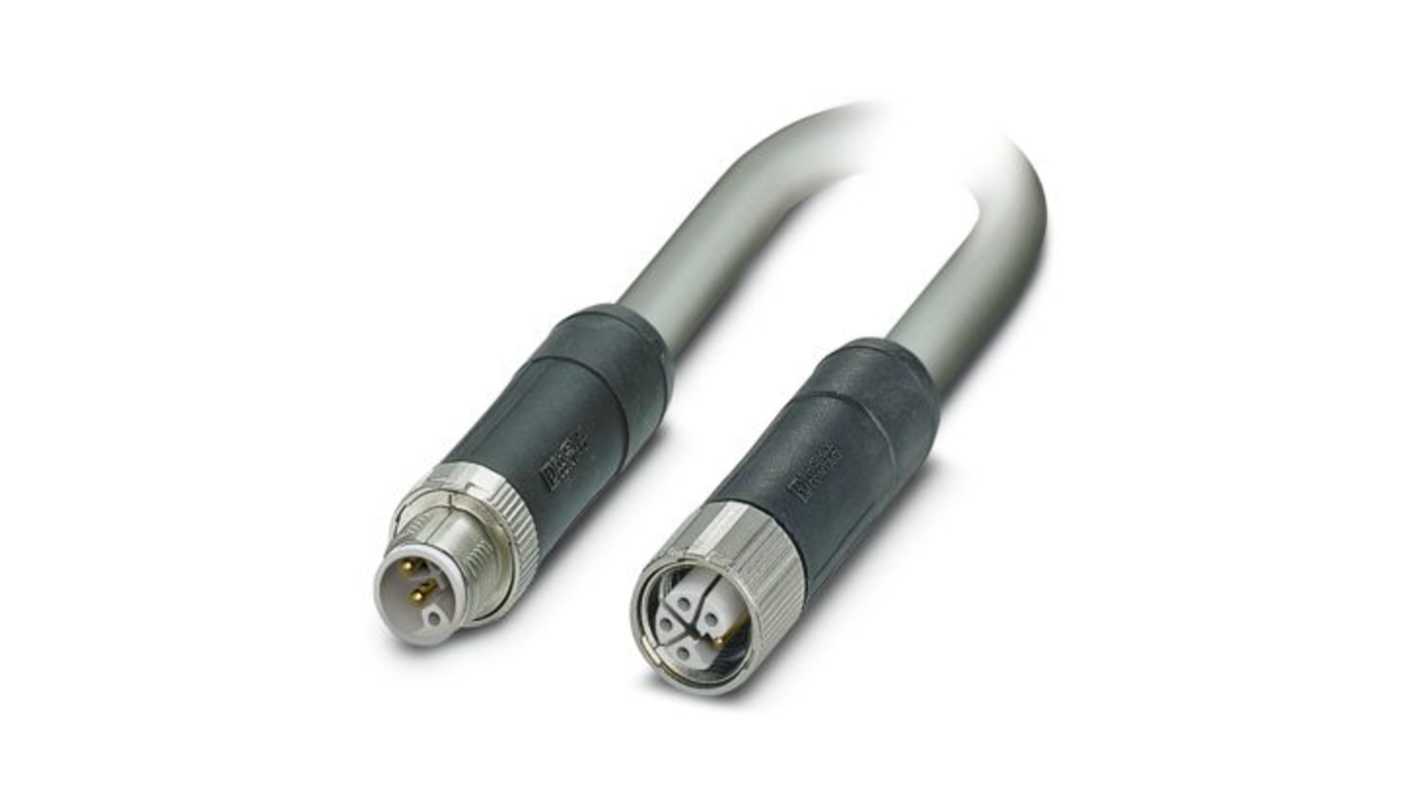

Phoenix Contact SAC Unshielded 2.5 mm² 5 Core Power Cable, Grey Polyurethane PUR, 300mm
- RS Stock No.:
- 519-234
- Mfr. Part No.:
- 1425009
- Brand:
- Phoenix Contact
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 519-234
- Mfr. Part No.:
- 1425009
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Cross Sectional Area | 2.5 mm² | |
Number of Cores | 5 | |
Sheath Colour | Grey | |
Length | 300mm | |
Armoured | No | |
Cable Type | Unshielded | |
Sheath Material | Polyurethane PUR | |
Series | SAC | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 2.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Grey | ||
Length 300mm | ||
Armoured No | ||
Cable Type Unshielded | ||
Sheath Material Polyurethane PUR | ||
Series SAC | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- PL
The Phoenix Contact Power Cable from phoenix contact is engineered to provide reliable performance in demanding applications. Designed for power supply, it boasts a robust construction that ensures durability and safety. The cable features five positions and is halogen-free, complying with stringent safety standards. Its straight M12 connectors come with L-coding, enabling fool proof connections for efficient energy transfer. With a cable length of 0.3 metres, it is ideally suited for configurations where space is at a premium, ensuring versatility across various industrial settings. The product's materials and electrical properties guarantee a long service life, making it a go-to choice for professionals seeking dependable connectivity in challenging environments.
Robust halogen-free PUR cable enhances safety and environmental compliance
Fool proof L-coding prevents mismatching during installation
High-quality connectors ensure secure connections under various conditions
Designed for direct current applications up to 16 A for effective power supply
Manufactured to withstand extreme ambient temperatures from -50 °C to 80 °C
Resistant to hydrolysis microbiological factors and oil ensuring reliability
Dynamic load capacities accommodate bending and torsion cycles for flexibility
Degree of protection IP65 and IP67 provides additional resistance against dust and water ingress
Complies with international standards equivalent to IEC 61076-2-111 for connector safety
Environmental product compliance meeting EU RoHS requirements for hazardous substances
Fool proof L-coding prevents mismatching during installation
High-quality connectors ensure secure connections under various conditions
Designed for direct current applications up to 16 A for effective power supply
Manufactured to withstand extreme ambient temperatures from -50 °C to 80 °C
Resistant to hydrolysis microbiological factors and oil ensuring reliability
Dynamic load capacities accommodate bending and torsion cycles for flexibility
Degree of protection IP65 and IP67 provides additional resistance against dust and water ingress
Complies with international standards equivalent to IEC 61076-2-111 for connector safety
Environmental product compliance meeting EU RoHS requirements for hazardous substances
