Phoenix Contact SAC, 5 m 5 Core Power Cable, Grey Polyurethane 80 °C
- RS Stock No.:
- 519-007
- Mfr. Part No.:
- 1424603
- Brand:
- Phoenix Contact
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 519-007
- Mfr. Part No.:
- 1424603
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Power Cable | |
| Number of Cores | 5 | |
| Jacket Colour | Grey | |
| Cable Length | 5m | |
| Jacket Material | Polyurethane | |
| Outside Diameter | 9.1 mm | |
| Voltage | 63 V | |
| Minimum Operating Temperature | 80°C | |
| Standards/Approvals | DIN EN 50267-2-1, cUL Listed, UL Listed, UL 758/1581 FT1, UL 758/1581, RoHS, IEC 61076-2-111, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-1-2 | |
| Cable CSA | 5 x 1.5 mm² | |
| Conductor Material | Bare Copper Wire | |
| Maximum Operating Temperature | 80°C | |
| Series | SAC | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Power Cable | ||
Number of Cores 5 | ||
Jacket Colour Grey | ||
Cable Length 5m | ||
Jacket Material Polyurethane | ||
Outside Diameter 9.1 mm | ||
Voltage 63 V | ||
Minimum Operating Temperature 80°C | ||
Standards/Approvals DIN EN 50267-2-1, cUL Listed, UL Listed, UL 758/1581 FT1, UL 758/1581, RoHS, IEC 61076-2-111, EAC, DIN VDE 0472, DIN EN 60811-404, DIN EN 60332-1-2 | ||
Cable CSA 5 x 1.5 mm² | ||
Conductor Material Bare Copper Wire | ||
Maximum Operating Temperature 80°C | ||
Series SAC | ||
- COO (Country of Origin):
- PL

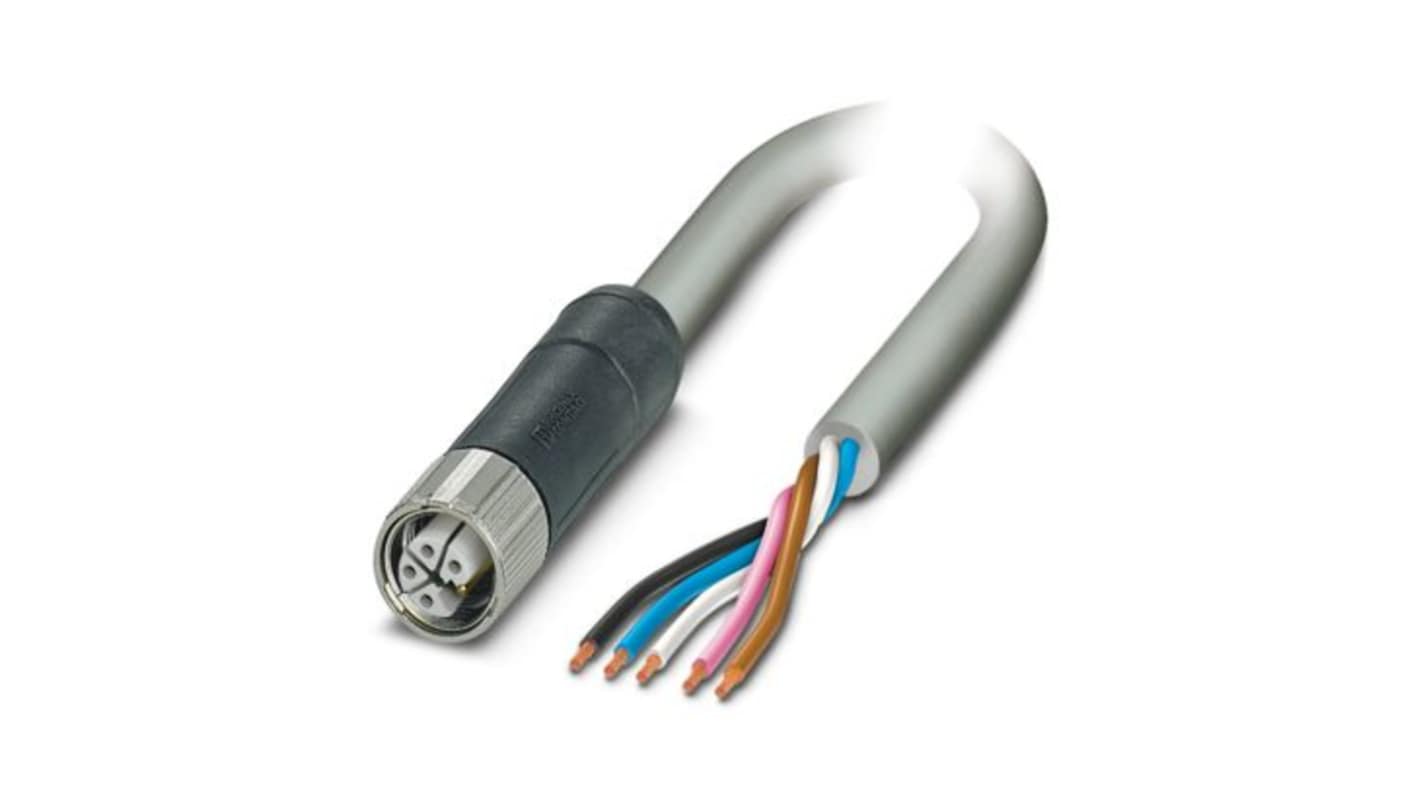

The Phoenix Contact Power Cable is an innovative solution designed to ensure reliable power supply in various industrial applications. With its 5-position configuration and halogen-free PUR construction, this cable combines flexibility with safety, making it ideal for environments where robust performance is crucial. The cable is engineered to support direct current up to 12 A and 63 V, ensuring it can meet the demands of modern automation systems. Its straight M12 socket connection, with L-coding, prevents mismatching and simplifies installation. This exceptional product is suitable for both fixed and flexible installations, showcasing adaptability across diverse operational settings.
Constructed with halogen free materials for enhanced safety
Offers a high degree of flexibility to accommodate various installation scenarios
Features an IP65 and IP67 rating for protection against dust and water ingress
Designed for high durability with a dynamic load capacity for extensive bending cycles
Includes multiple conductor colours for easy identification during installations
Complies with stringent environmental standards including RoHS and REACH regulations
Utilises PUR outer sheath providing superior resistance to abrasion and oils
