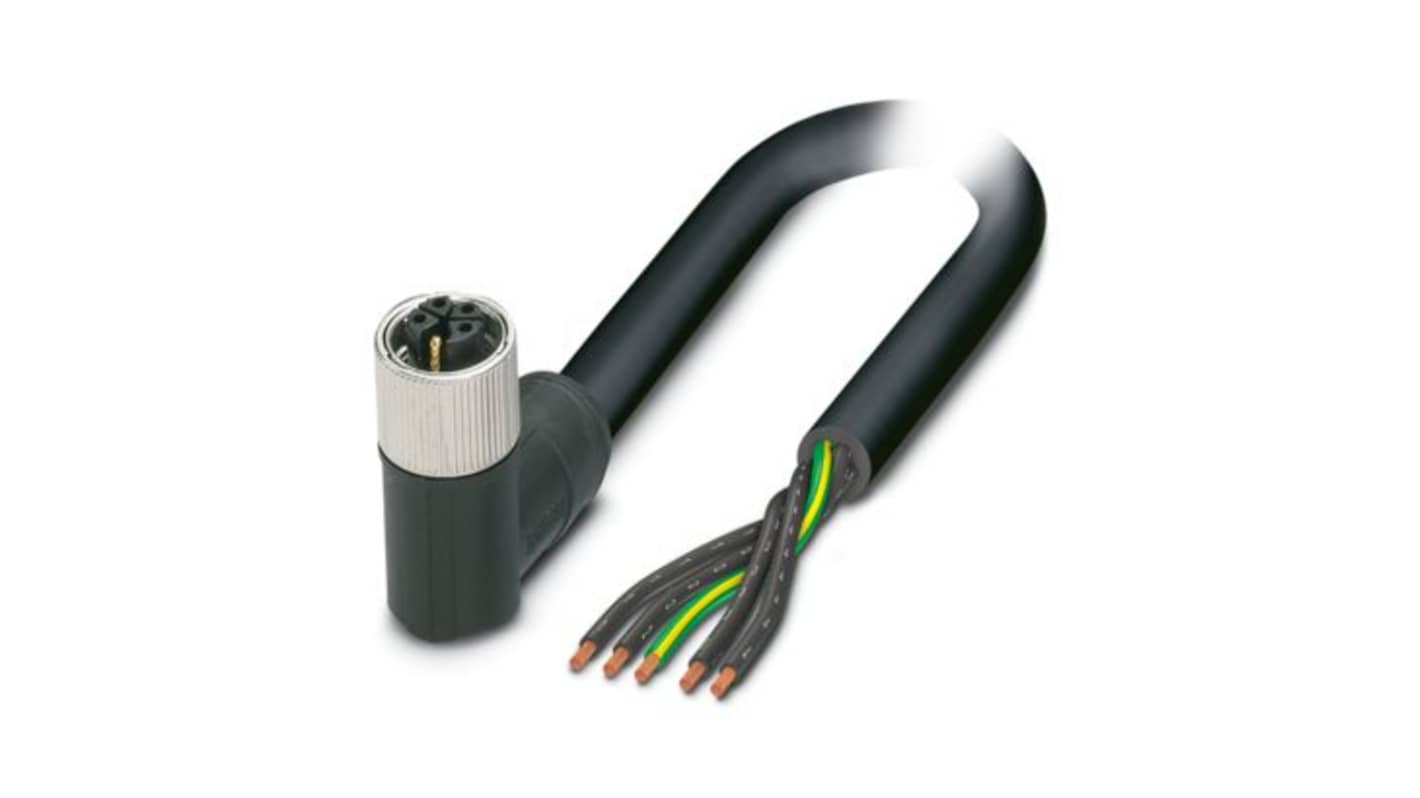

Phoenix Contact SAC Unshielded 2.5 mm² 5 Core Power Cable, Black, Grey Polyurethane PUR, 5m
- RS Stock No.:
- 488-585
- Mfr. Part No.:
- 1414800
- Brand:
- Phoenix Contact
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 488-585
- Mfr. Part No.:
- 1414800
- Brand:
- Phoenix Contact
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Cross Sectional Area | 2.5 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Black, Grey | |
| Length | 5m | |
| Armoured | No | |
| Cable Type | Unshielded | |
| Sheath Material | Polyurethane PUR | |
| Series | SAC | |
| Maximum Operating Temperature | +90°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Cross Sectional Area 2.5 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black, Grey | ||
Length 5m | ||
Armoured No | ||
Cable Type Unshielded | ||
Sheath Material Polyurethane PUR | ||
Series SAC | ||
Maximum Operating Temperature +90°C | ||
- COO (Country of Origin):
- PL
The Phoenix Contact power cable is designed to meet the rigorous demands of modern industrial applications. Engineered with a 5-position configuration, it utilises halogen-free PUR materials, ensuring both flexibility and protection against harmful substances. With a specially designed angled M12 connector, it promises reliable connectivity for AC currents up to 16 A and voltages of 690 V. Its robust construction is complemented by an impressive operating temperature range, making it suitable for various environments. Furthermore, the product has been extensively tested to provide peak performance, ensuring peace of mind in critical situations.
Features a free cable end for easy installation
Boasts IP65 and IP67 ratings for high durability in challenging conditions
Constructed from flame retardant materials to enhance safety
Includes a weight per piece specification for logistical efficiency
Designed to withstand mechanical stress with over 4 million bending cycles
Provides superior insulation resistance, ensuring long lasting operation
Contains materials compliant with EU RoHS standards for environmental safety
Supported by a comprehensive range of compatible accessories
Boasts IP65 and IP67 ratings for high durability in challenging conditions
Constructed from flame retardant materials to enhance safety
Includes a weight per piece specification for logistical efficiency
Designed to withstand mechanical stress with over 4 million bending cycles
Provides superior insulation resistance, ensuring long lasting operation
Contains materials compliant with EU RoHS standards for environmental safety
Supported by a comprehensive range of compatible accessories
