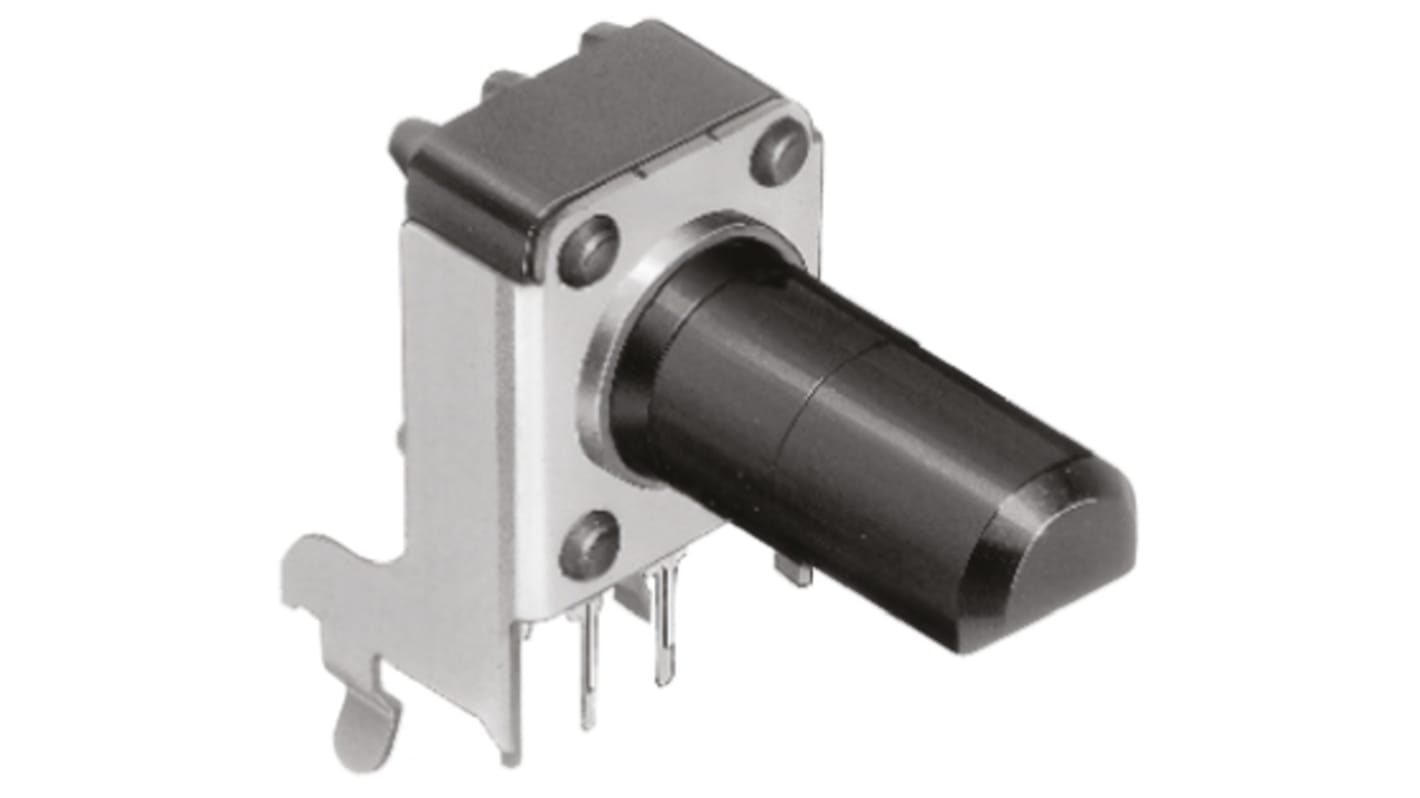

Alps 10kΩ Linear Potentiometer Through Hole, RK09K1110B26
- RS Stock No.:
- 729-3638
- Mfr. Part No.:
- RK09K1110B26
- Brand:
- Alps
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 729-3638
- Mfr. Part No.:
- RK09K1110B26
- Brand:
- Alps
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alps | |
Potentiometer Type | Linear | |
Maximum Resistance | 10kΩ | |
Number of Turns | 1 | |
Mounting Type | Through Hole | |
Termination Style | Pin | |
Shaft Diameter | 6 mm | |
Tolerance | ±20% | |
Series | RK09K | |
Select all | ||
---|---|---|
Brand Alps | ||
Potentiometer Type Linear | ||
Maximum Resistance 10kΩ | ||
Number of Turns 1 | ||
Mounting Type Through Hole | ||
Termination Style Pin | ||
Shaft Diameter 6 mm | ||
Tolerance ±20% | ||
Series RK09K | ||
- COO (Country of Origin):
- CN
9mm Snap-In Insulated Shaft Potentiometers RK09K/RK09D Series
Brought to you by Alps, the RK09K and RK09D series of potentiometers features convenient snap in mounting and an insulated shaft. These compact type potentiometers are ideal for designing high density sets, and are available in a vertical or horizontal mounting direction. The RK09K and RK09D series are commonly used in audio applications.
Features and Benefits:
• Compact type potentiometer with 9.8mm width is ideal for designing high density sets
• Vertical and Horizontal mounting direction
• Total rotation angle 280° (RK09K) and 300° (RK09D)
• Flat, knob, and driver shaft types
• Compact type potentiometer with 9.8mm width is ideal for designing high density sets
• Vertical and Horizontal mounting direction
• Total rotation angle 280° (RK09K) and 300° (RK09D)
• Flat, knob, and driver shaft types
Note
For vertical type Shaft Length shown in heading is measured from the PCB surface to the tip of the shaft, for horizontal type Shaft Length is measured from the mounting tag to the end of the shaft, see datasheet for dimensions.
