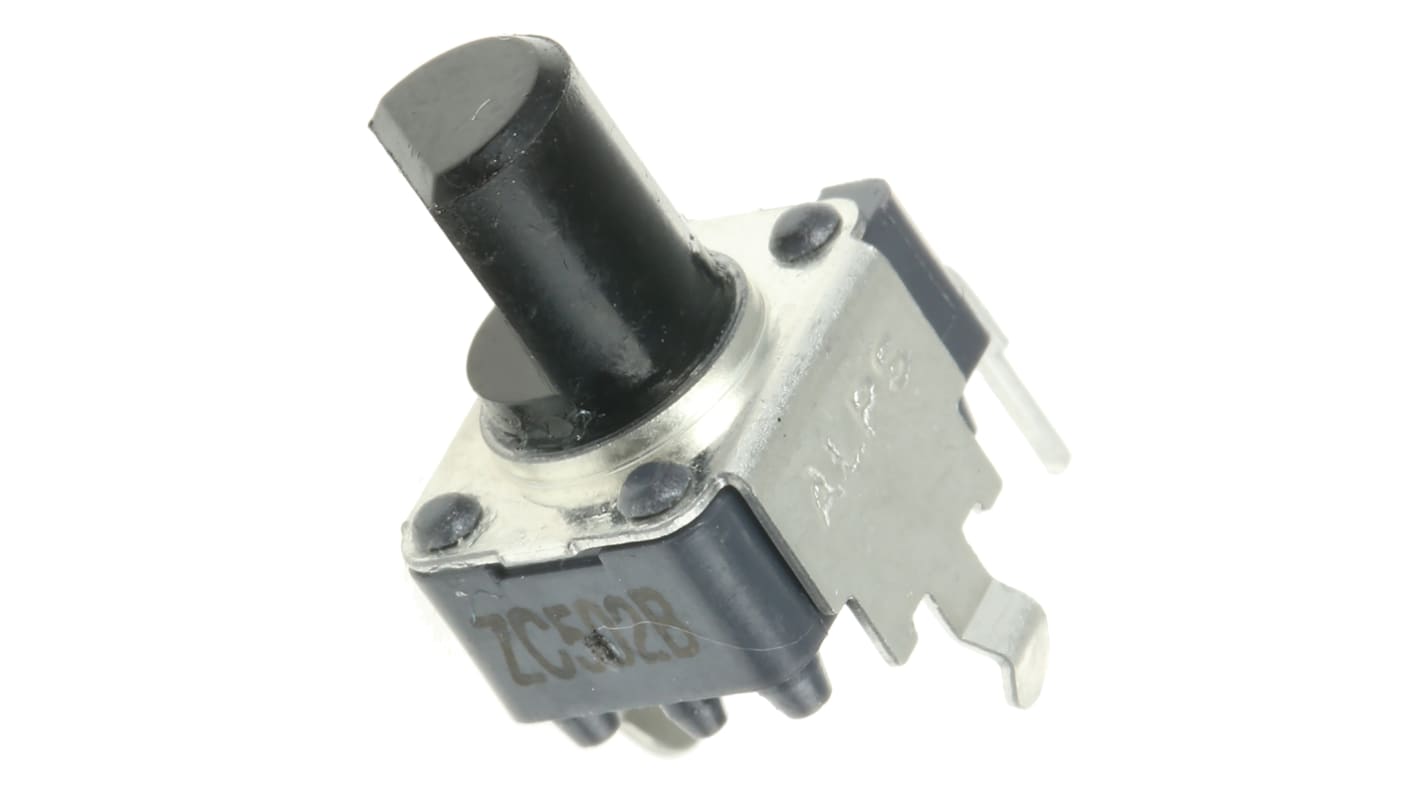

Alps Alpine 5kΩ Rotary Potentiometer 1-Gang Through Hole, RK09K1130AU2
- RS Stock No.:
- 729-3565
- Mfr. Part No.:
- RK09K1130AU2
- Brand:
- Alps Alpine
162 In stock - FREE next working day delivery available
1 available from Europe for delivery within 1 working day(s).
Price Each
£1.12
(exc. VAT)
£1.34
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £1.12 |
| 25 - 99 | £1.05 |
| 100 - 249 | £0.97 |
| 250 - 499 | £0.93 |
| 500 + | £0.85 |
- RS Stock No.:
- 729-3565
- Mfr. Part No.:
- RK09K1130AU2
- Brand:
- Alps Alpine
Legislation and Compliance
Product Details
9mm Snap-In Insulated Shaft Potentiometers RK09K/RK09D Series
Brought to you by Alps, the RK09K and RK09D series of potentiometers features convenient snap in mounting and an insulated shaft. These compact type potentiometers are ideal for designing high density sets, and are available in a vertical or horizontal mounting direction. The RK09K and RK09D series are commonly used in audio applications.
Features and Benefits:
• Compact type potentiometer with 9.8mm width is ideal for designing high density sets
• Vertical and Horizontal mounting direction
• Total rotation angle 280° (RK09K) and 300° (RK09D)
• Flat, knob, and driver shaft types
• Compact type potentiometer with 9.8mm width is ideal for designing high density sets
• Vertical and Horizontal mounting direction
• Total rotation angle 280° (RK09K) and 300° (RK09D)
• Flat, knob, and driver shaft types
Note
For vertical type Shaft Length shown in heading is measured from the PCB surface to the tip of the shaft, for horizontal type Shaft Length is measured from the mounting tag to the end of the shaft, see datasheet for dimensions.
Specifications
Attribute | Value |
|---|---|
| Potentiometer Type | Rotary |
| Maximum Resistance | 5kΩ |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power Rating | 0.05W |
| Electrical Taper | Linear |
| Mounting Type | Panel Mount, Through Hole |
| Termination Style | Pin |
| Shaft Length | 15mm |
| Shaft Diameter | 6 mm |
| Actuator Type | Flatted Shaft |
| Series | RK09K |
| Tolerance | ±20% |
