ProMinent Electric Operated Positive Displacement Pump, 11.3L/h, 16 bar, 100 to 230 V


Discontinued product
RS Stock No.:
121-8595
Mfr. Part No.:
DLTA1612PVT2000U11131EN0
Brand:
ProMinent
COO (Country of Origin):
DE

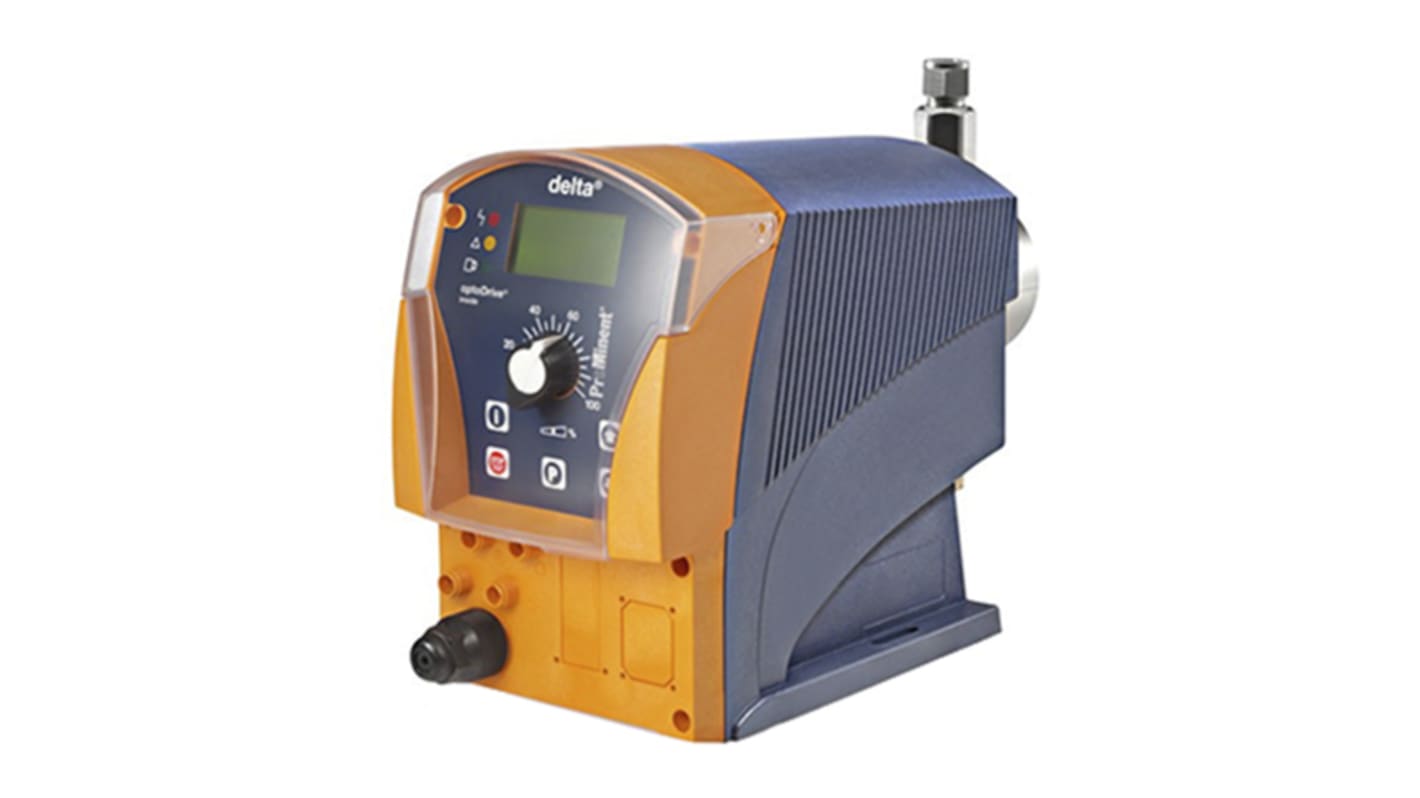

Delta® 4 Solenoid Diaphragm Metering Pump


Solenoid diaphragm metering pump with optoDrive® drive technology. Complete control of the suction and pressure stroke for optimal adaptation to the metering task and monitoring of the peripheral hydraulic instruments via optoGuard®. The suction and pressure strokes are fully monitored and can be adapted to the individual application. The delta pump is equipped for almost any application thanks to numerous drive options and connection via Profibus® or CANbus to the central control station. The pump is equipped with the option “Process Timer" and can be used as a control centre where programmable logic controllers would normally be required.


Features and Benefits


PVDF liquid end with PTFE seals, resistant to most chemicals
Programmable suction and delivery stroke duration
Continuous or pulsation dosing
Integrated injection control optoGaurd detects blocked dosing points, broken dosing lines and air or gas bubbles
Pump can be adapted to the dosed media
Foot valve and injection valve
Two-stage, float-type level switch input
Fault indicating relay
External control via 0/4-20 mA and volt free contact
Universal control cable 5m
Suction lift: 3mWG
2m suction tube, 5m discharge tube
Integral bleed function
IP65 housing
Supply voltage 100 - 230 V ±10 %, 50 / 60 Hz


Applications


The Delta arange of dosing pumps are suitable for use in a broad range of aplications including,
Laboratory chemical monitoring
Cooling water circuits
Metering disinfectants
Paper industry de-foamers
General water treatments
Metering for PH correction dosing
Metering of chemicals and disinfectants


Metering/Dosing Pumps

For use in the chemical, pharmaceutical and food/drinks industries. All have IP65 glass fibre reinforced housings, solenoid drive mechanisms and LCD displays. A comprehensive user manual is supplied with each model.

AttributeValue
Drive TypeElectric
Maximum Flow Rate11.3L/h
Maximum Working Pressure16 bar
Input Connection3/4 in G
Output Connection3/4 in G
IP RatingIP65
SeriesDLTa
Maximum Fluid Temperature+20°C
Body MaterialPVDF
Supply Voltage100 to 230 V
Input Power78 (Consumption)W
Wetted MaterialsPVDF
Input Thread Standard or Connection TypeG
Output Connection Size3/4in
Input Connection Size3/4in
Output Thread Standard or Connection TypeG
