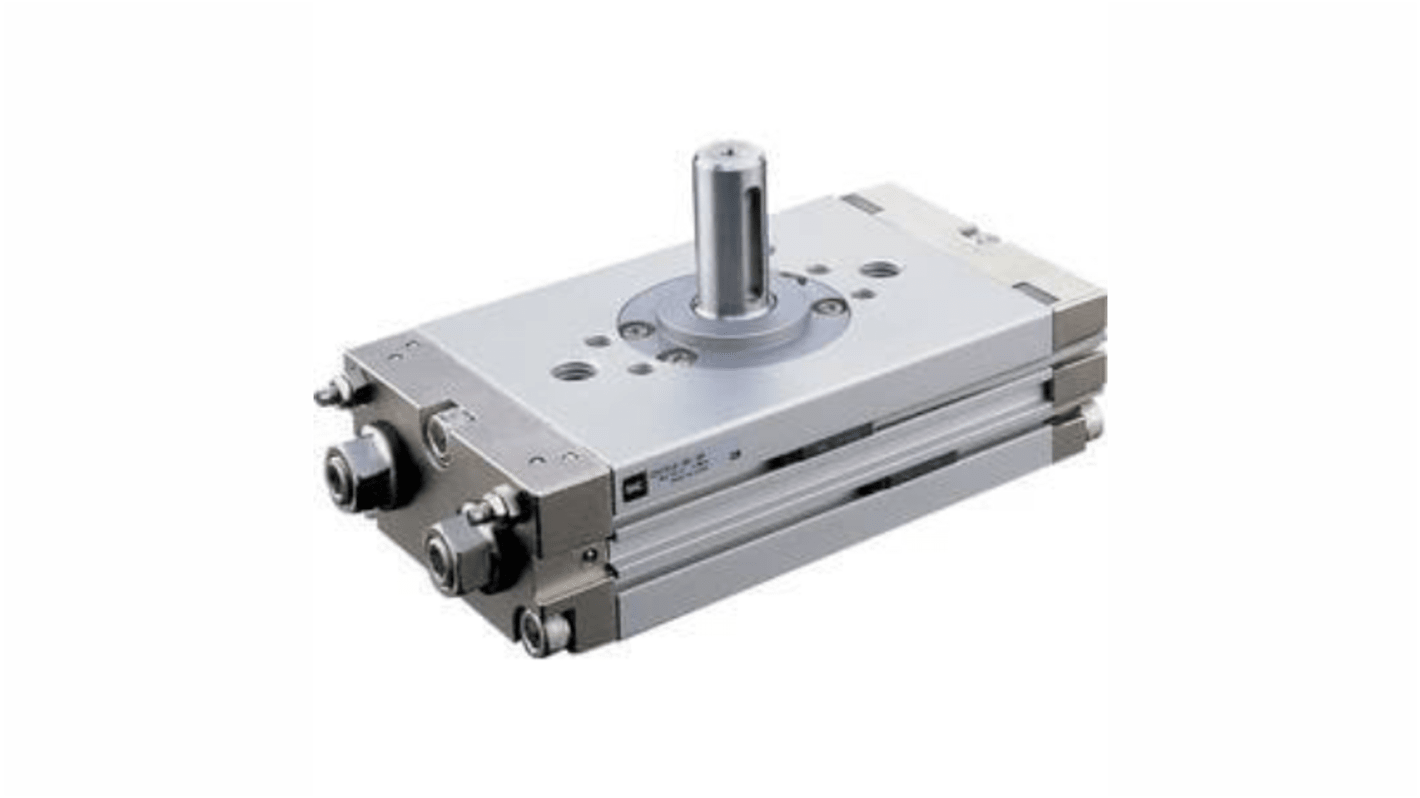

SMC CRQ2 Series 10 bar Single Action Rotary Actuator, 90° Rotary Angle, 30mm Bore
- RS Stock No.:
- 254-6169
- Mfr. Part No.:
- CDRQ2BS30-90C
- Brand:
- SMC
Subtotal (1 unit)*
£342.34
(exc. VAT)
£410.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £342.34 |
*price indicative
- RS Stock No.:
- 254-6169
- Mfr. Part No.:
- CDRQ2BS30-90C
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Rotary Angle | 90° | |
Action | Single | |
Bore | 30mm | |
Manufacturer Series | CRQ2 | |
Maximum Input Pressure | 10bar | |
Maximum Operating Pressure | 10 bar | |
Select all | ||
---|---|---|
Brand SMC | ||
Rotary Angle 90° | ||
Action Single | ||
Bore 30mm | ||
Manufacturer Series CRQ2 | ||
Maximum Input Pressure 10bar | ||
Maximum Operating Pressure 10 bar | ||
- COO (Country of Origin):
- JP
The SMC compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes. This product uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are
Low profile
Both single shaft and double shaft are available in all sizes
2 auto switches are mountable on the same side
Rotating angle adjusting range 350° to 370°
Both single shaft and double shaft are available in all sizes
2 auto switches are mountable on the same side
Rotating angle adjusting range 350° to 370°
