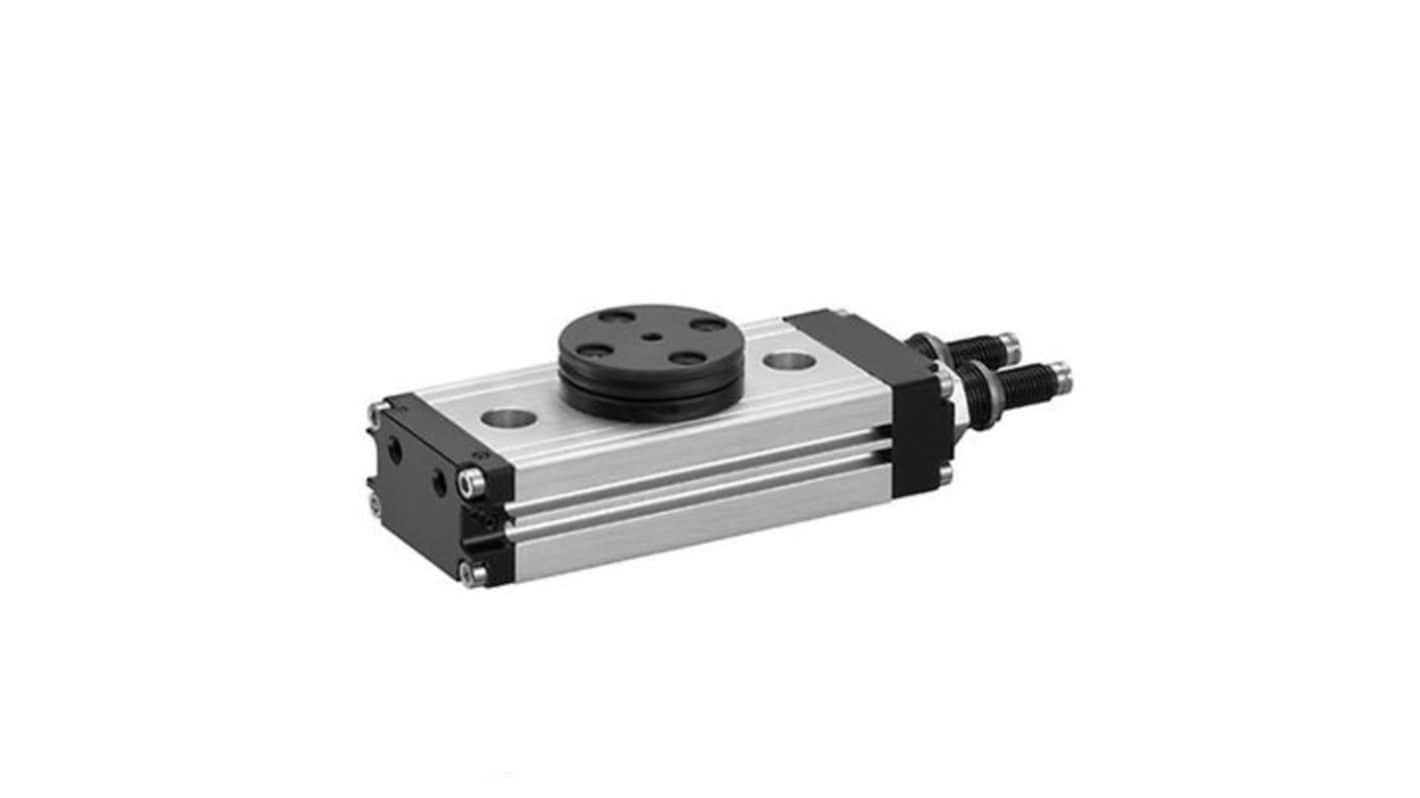

EMERSON – AVENTICS RCM Series 8 bar Double Action Pneumatic Rotary Actuator, 180° Rotary Angle, 25mm Bore
- RS Stock No.:
- 272-762
- Mfr. Part No.:
- R412000376
- Brand:
- EMERSON ? AVENTICS
Subtotal (1 unit)*
£1,789.44
(exc. VAT)
£2,147.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,789.44 |
*price indicative
- RS Stock No.:
- 272-762
- Mfr. Part No.:
- R412000376
- Brand:
- EMERSON ? AVENTICS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? AVENTICS | |
Rotary Angle | 180° | |
Action | Double | |
Bore | 25mm | |
Manufacturer Series | RCM | |
Maximum Operating Pressure | 8 bar | |
Cushioning Type | Hydraulic | |
Port Connection | M5 | |
Size Type | Compact | |
Series | RCM | |
Select all | ||
---|---|---|
Brand EMERSON ? AVENTICS | ||
Rotary Angle 180° | ||
Action Double | ||
Bore 25mm | ||
Manufacturer Series RCM | ||
Maximum Operating Pressure 8 bar | ||
Cushioning Type Hydraulic | ||
Port Connection M5 | ||
Size Type Compact | ||
Series RCM | ||
- COO (Country of Origin):
- DE
The Aventics RCM-SH Series Rotary Compact Module features a compact design which offers high torque and functionality in the minimum amount of space. High power density through optimum ratio of torque and space and absorption of outer transverse force and torque on the rotary flange. A combination of an opposed pneumatic double piston drive and a precise rotary flange guided without play.
With magnetic piston
Double piston with rack
Easy2Combine capable
Cushioning hydraulic non adjustable
Double piston with rack
Easy2Combine capable
Cushioning hydraulic non adjustable
