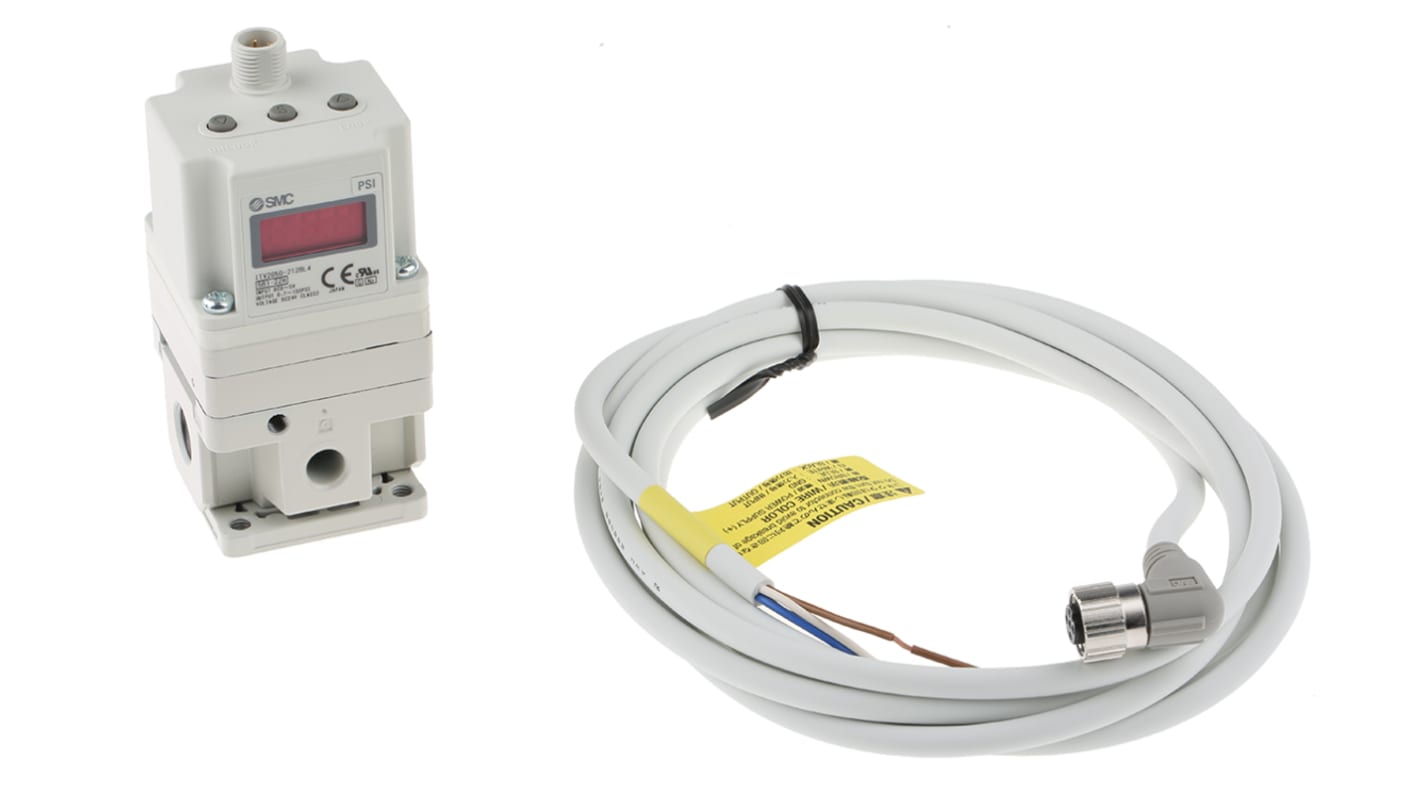

SMC Rc 1/4 Pneumatic Regulator - 0.005MPa to 0.9MPa, 1/4in, 1MPa max. input
- RS Stock No.:
- 797-5591
- Mfr. Part No.:
- ITV2050-212BL4
- Brand:
- SMC
4 In stock - FREE next working day delivery available
Added
Price Each
£517.67
(exc. VAT)
£621.20
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £517.67 |
| 5 - 9 | £487.22 |
| 10 + | £466.92 |
- RS Stock No.:
- 797-5591
- Mfr. Part No.:
- ITV2050-212BL4
- Brand:
- SMC
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
ITV series
Electro-pneumatic pressure regulator range from SMC.
ITV series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.
ITV series regulators allow proportional control of the regulators output pressure with an electrical input signal. Increasing the input signal will increase the pilot pressure operating a diaphragm controlling air between the supply and output pressure ports. The pressure at the output port will continue to rise until the feedback from the pressure sensor shows the output pressure to be proportional to the input signal.
Near zero air consumption at set pressure
Temperature range +5°C to +50°C
Analogue output 1 to 5 Vdc
LED three digit pressure display
IP65 rated enclosure
Energy consumption of 4w or less
Zero and span can be set without supply pressure present
Without cable
Temperature range +5°C to +50°C
Analogue output 1 to 5 Vdc
LED three digit pressure display
IP65 rated enclosure
Energy consumption of 4w or less
Zero and span can be set without supply pressure present
Without cable
Note
Specifications
Attribute | Value |
|---|---|
| Port Connection | Rc 1/4 |
| Maximum Outlet Pressure | 0.9MPa |
| Minimum Outlet Pressure | 0.005MPa |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | ITV2000 |
| Pressure Gauge Port Size | Rc 1/4 |
| Port Connection Thread Size | 1/4in |
| Pressure Gauge Port Thread Size | 1/4in |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | Rc |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Pressure Gauge Port Thread Standard | Rc |
