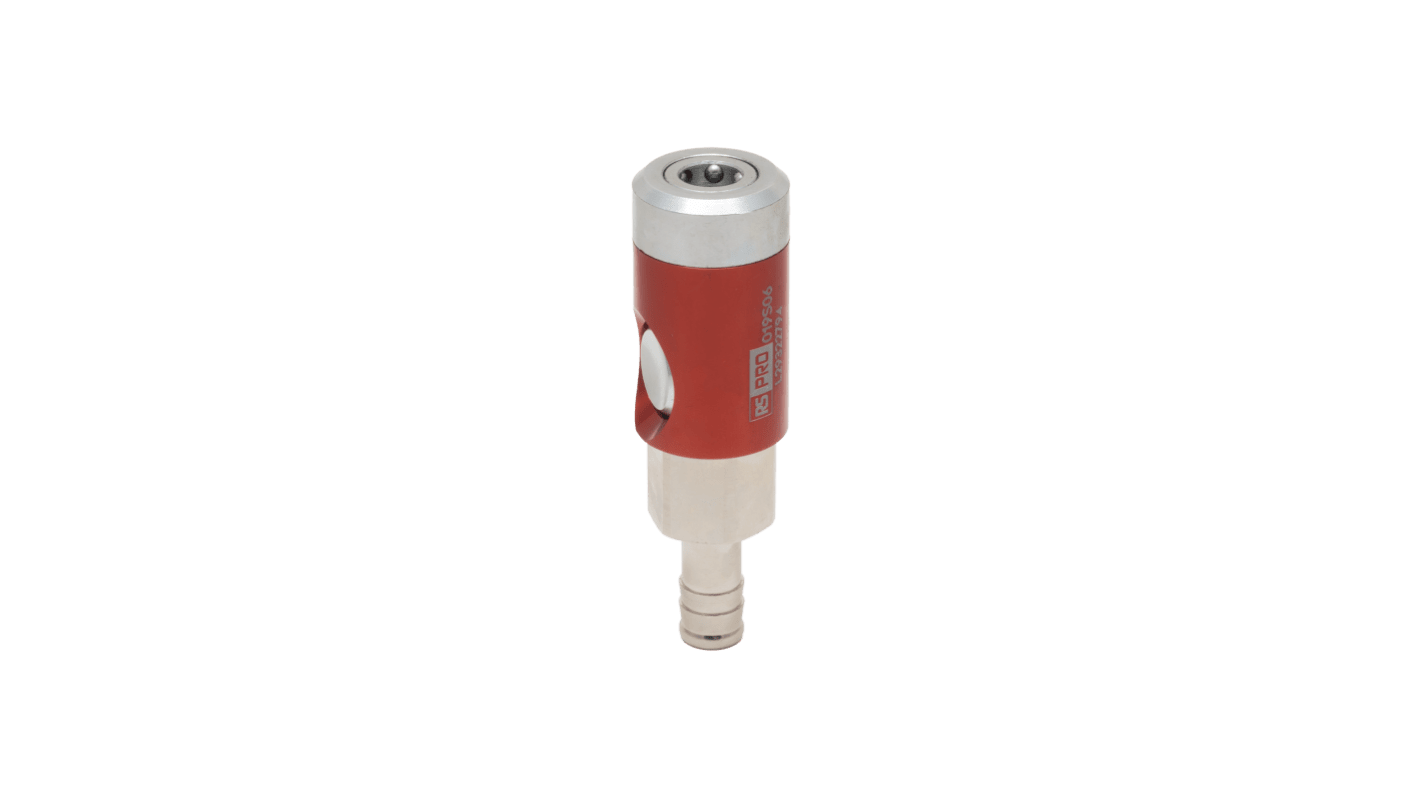

RS PRO Aluminium, Brass, Steel Female Pneumatic Quick Connect Coupling, 10mm Hose Barb
- RS Stock No.:
- 325-516
- Brand:
- RS PRO
Subtotal (1 unit)*
£15.00
(exc. VAT)
£18.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.00 |
*price indicative
- RS Stock No.:
- 325-516
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Coupling Gender | Female | |
| Connection Standard | British, ISO 4414 | |
| Coupling Type | Quick Connect Coupling Socket | |
| Connection Type | Hose Barb | |
| Hose Barb Connection | 10mm | |
| Material | Aluminium, Brass, Steel | |
| Maximum Operating Pressure | 12bar | |
| Finish | Nickel Plated | |
| Minimum Operating Temperature | -20°C | |
| Seal Material | NBR | |
| Maximum Operating Temperature | 100°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Coupling Gender Female | ||
Connection Standard British, ISO 4414 | ||
Coupling Type Quick Connect Coupling Socket | ||
Connection Type Hose Barb | ||
Hose Barb Connection 10mm | ||
Material Aluminium, Brass, Steel | ||
Maximum Operating Pressure 12bar | ||
Finish Nickel Plated | ||
Minimum Operating Temperature -20°C | ||
Seal Material NBR | ||
Maximum Operating Temperature 100°C | ||
- COO (Country of Origin):
- TR
RS PRO Pneumatic Quick Connect Coupling, 12 bar Maximum Operating Pressure
The RS PRO Pneumatic Quick Connect Coupling Socket is designed for efficient and secure connections in pneumatic systems. Ideal for use in robotic assembly lines and various industrial equipment, it ensures durability and effective sealing with its nitrile rubber seal material.
Features and Benefits
Maximum operating pressure of 12 bar ensures reliable performance in demanding applications
Operating temperature range from -20°C to +100°C allows for versatile use in different environments
Constructed from brass, steel, and aluminium with a nickel-plated finish for enhanced durability and corrosion resistance
2 Stage Security feature provides additional safety by requiring a double action for disconnection
Complies with ISO 4414 standards, ensuring compatibility and safety
British Profile DN5.5 for standardised connections
Compatible with PCL 60 and PARKER - RECTUS 19 for versatile integration
Operating temperature range from -20°C to +100°C allows for versatile use in different environments
Constructed from brass, steel, and aluminium with a nickel-plated finish for enhanced durability and corrosion resistance
2 Stage Security feature provides additional safety by requiring a double action for disconnection
Complies with ISO 4414 standards, ensuring compatibility and safety
British Profile DN5.5 for standardised connections
Compatible with PCL 60 and PARKER - RECTUS 19 for versatile integration
Applications
Robotic assembly lines
Industrial equipment
Pneumatic systems
Industrial equipment
Pneumatic systems
Additional Information
Seal material: Nitrile rubber (NBR)
Connection type: Hose Barb, 10 mm
Coupling gender: Female and Male
Connection type: Hose Barb, 10 mm
Coupling gender: Female and Male
