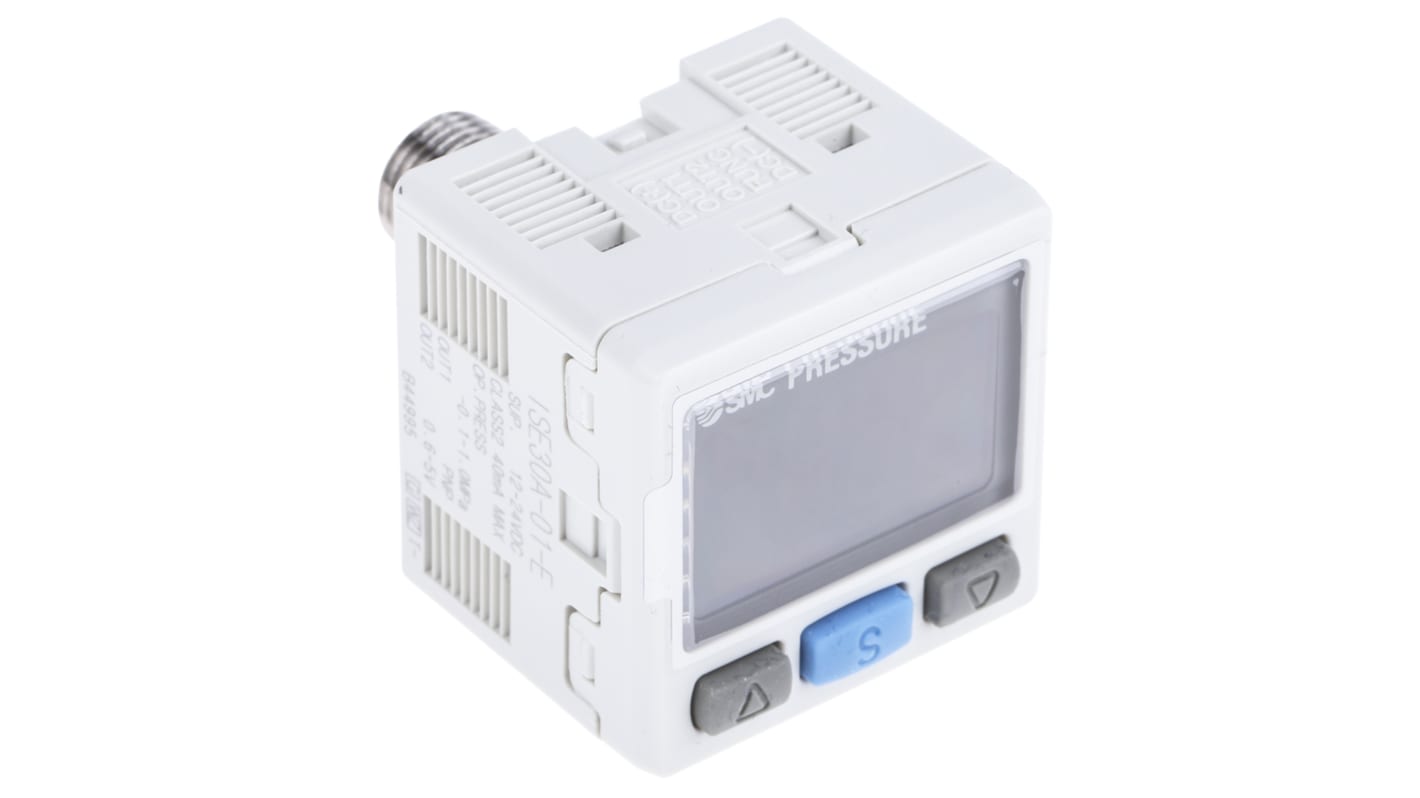

SMC Pressure Sensor, IP40 1 MPa
- RS Stock No.:
- 740-6391
- Mfr. Part No.:
- ISE30A-01-E-G
- Brand:
- SMC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 740-6391
- Mfr. Part No.:
- ISE30A-01-E-G
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Suitable Media | Air, Gas | |
| Maximum Operating Pressure | 1 MPa | |
| Minimum Operating Pressure | -0.1MPa | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +50°C | |
Select all | ||
|---|---|---|
Brand SMC | ||
Suitable Media Air, Gas | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Pressure -0.1MPa | ||
IP Rating IP40 | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- FR
SMC Digital Pressure Switch
The SMC ISE30A series digital pressure switch has a maximum operating pressure of 1MPa. It has an output of PNP open collector and analogue voltage. This switch is available with 2m length lead wire with connector and connector cover.
Note:
Part number ZS-27-A is a 3-core cable assembly and suits all the now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L
Part number ZS-38-3L is a 3 core cable assembly and suits the new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P
Note:
Part number ZS-27-A is a 3-core cable assembly and suits all the now obsolete ZSE/ISE30-#-#-# and when supplied with the unit has the suffix code letter -L
Part number ZS-38-3L is a 3 core cable assembly and suits the new ZSE30A/ZSE30F/ISE30A-#-N or P and is shown when supplied with the item as an additional suffix -L after the N or P
Features and Benefits
R1/8 female M5 thread connection
2-colour digital display for fast "abnormal condition" identification
Display calibration capability allowing uniformity of display
High precision resolution, typically 1/1000
User selectable pressure unit display
User-friendly, raised rubber button control
2-colour digital display for fast "abnormal condition" identification
Display calibration capability allowing uniformity of display
High precision resolution, typically 1/1000
User selectable pressure unit display
User-friendly, raised rubber button control
Certifications
CE certified
CSA certified
IP40 rated
UL listed
CSA certified
IP40 rated
UL listed
