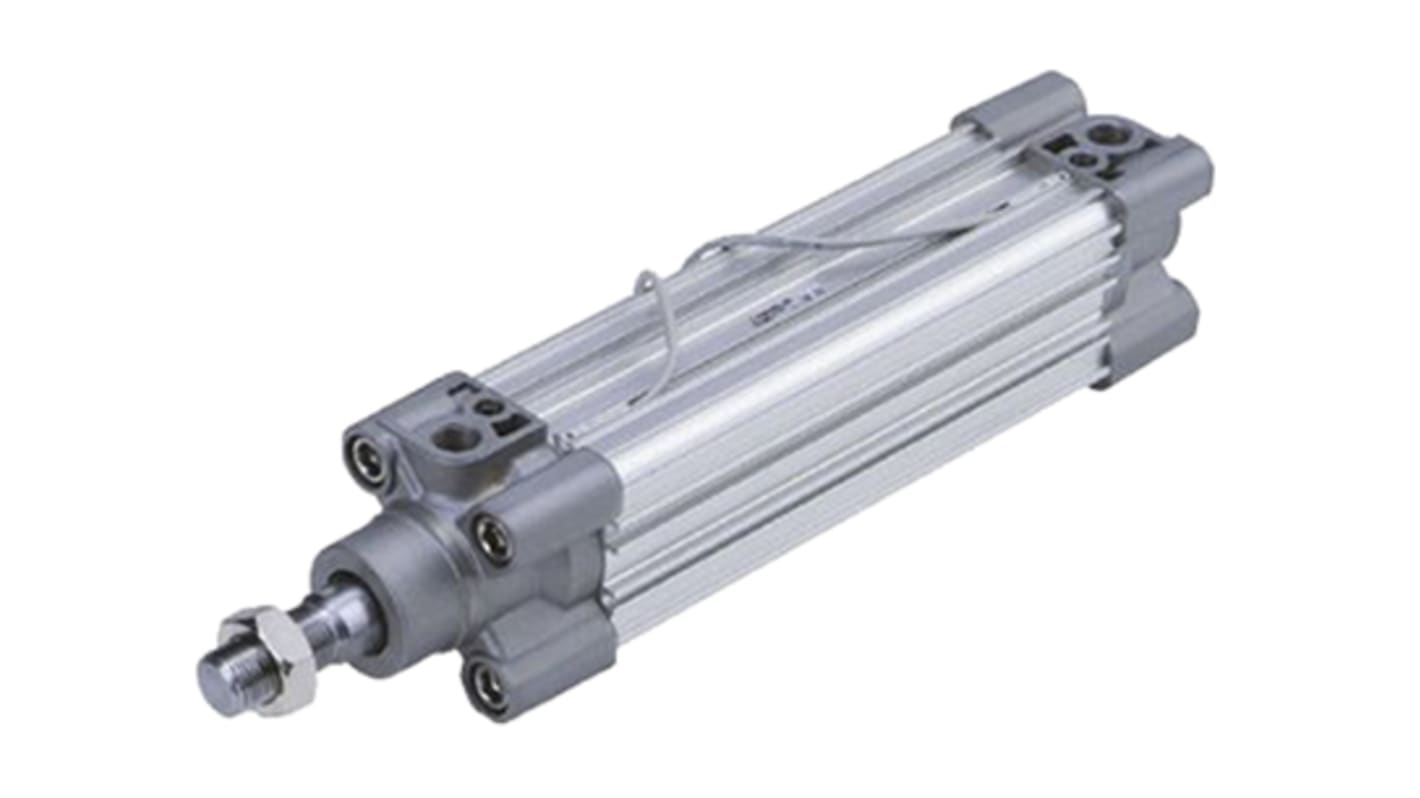

SMC Pneumatic Piston Rod Cylinder - 80mm Bore, 80mm Stroke, CP96 Series, Double Acting

View this category

Subtotal (1 unit)*

£169.95

(exc. VAT)

£203.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£169.95

*price indicative

RS Stock No.:
917-8789
Mfr. Part No.:
CP96SDB80-80C
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Manufacturer Series

CP96

Action

Double

Stroke

80mm

Bore

80mm

Port Connection

G 3/8

Cushioning Type

Air

Dimensions

298 x 99 x 99mm

Height

99mm

Width

99mm

Length

298mm

Maximum Operating Pressure

1 MPa

Absolute Maximum Pressure

1.5MPa

ISO Standard

4414

Stroke Interval Weight

0.49 kg @ 50 mm Stroke

Weight

3.6kg

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

Non Compliant

COO (Country of Origin):
CN

CP96-C Double Acting Cylinder


The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.
