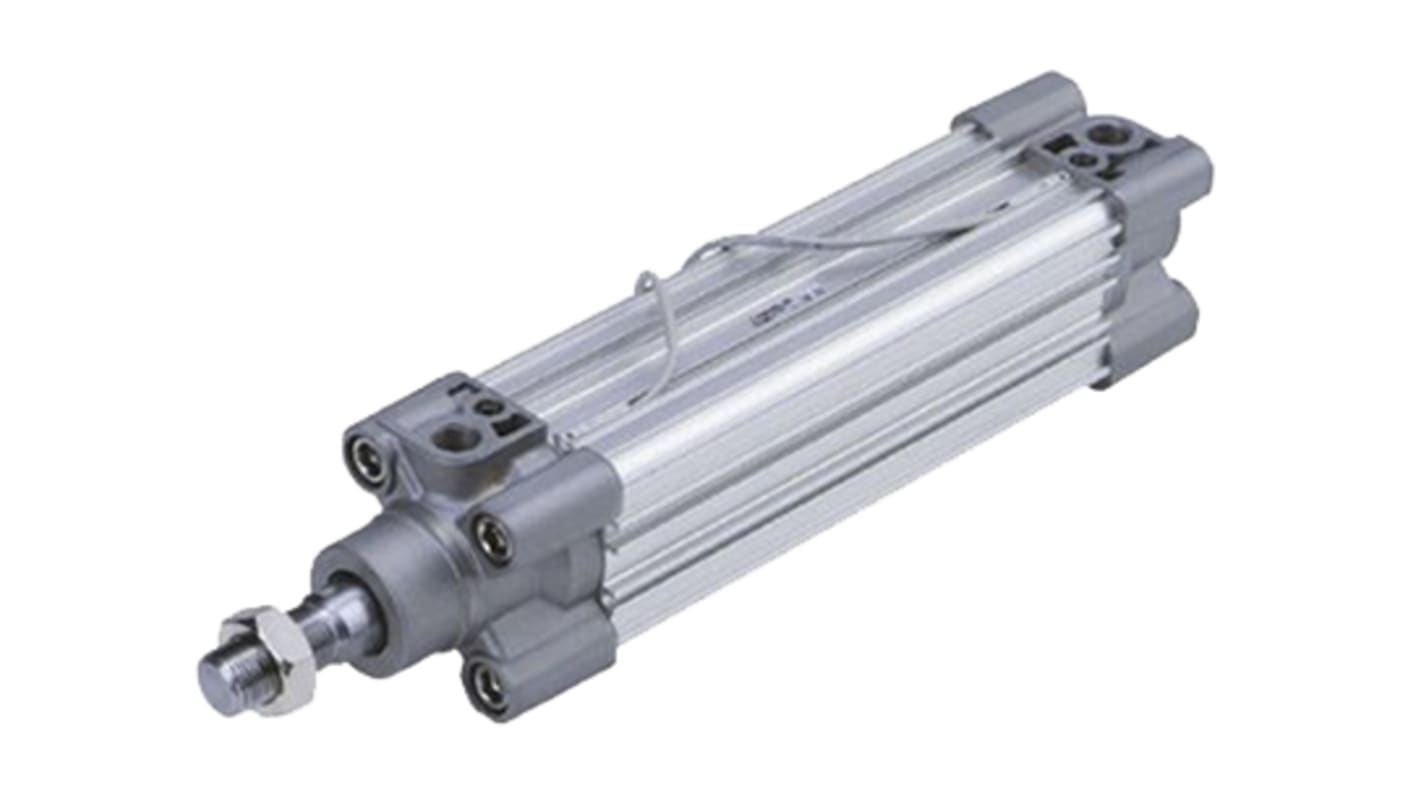

SMC Pneumatic Piston Rod Cylinder - 50mm Bore, 125mm Stroke, CP96 Series, Double Acting

RS Stock No.:: 916-6806
Mfr. Part No.:: CP96SDB50-125C
Brand:: SMC

SMC Pneumatic Piston Rod Cylinder - 50mm Bore, 125mm Stroke, CP96 Series, Double Acting

View this category

1 In stock - FREE next working day delivery available

Price Each

£109.03

(exc. VAT)

£130.84

(inc. VAT)

Units	Per unit
1 +	£109.03

RS Stock No.:: 916-6806
Mfr. Part No.:: CP96SDB50-125C
Brand:: SMC

Technical Reference

Legislation and Compliance

Non Compliant

Product Details

CP96-C Double Acting Cylinder

The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.

CP96 Series

Specifications

Attribute	Value
Stroke	125mm
Bore	50mm
Action	Double
Manufacturer Series	CP96
Length	304mm
Cushioning Type	Air
Dimensions	304 x 66 x 66mm
Width	66mm
Absolute Maximum Pressure	1.5MPa
Maximum Operating Pressure	1 MPa
Height	66mm
Stroke Interval Weight	0.3 kg @ 50 mm Stroke
Maximum Operating Temperature	+70°C
Weight	2.9kg
Minimum Operating Temperature	-20°C
ISO Standard	4414
