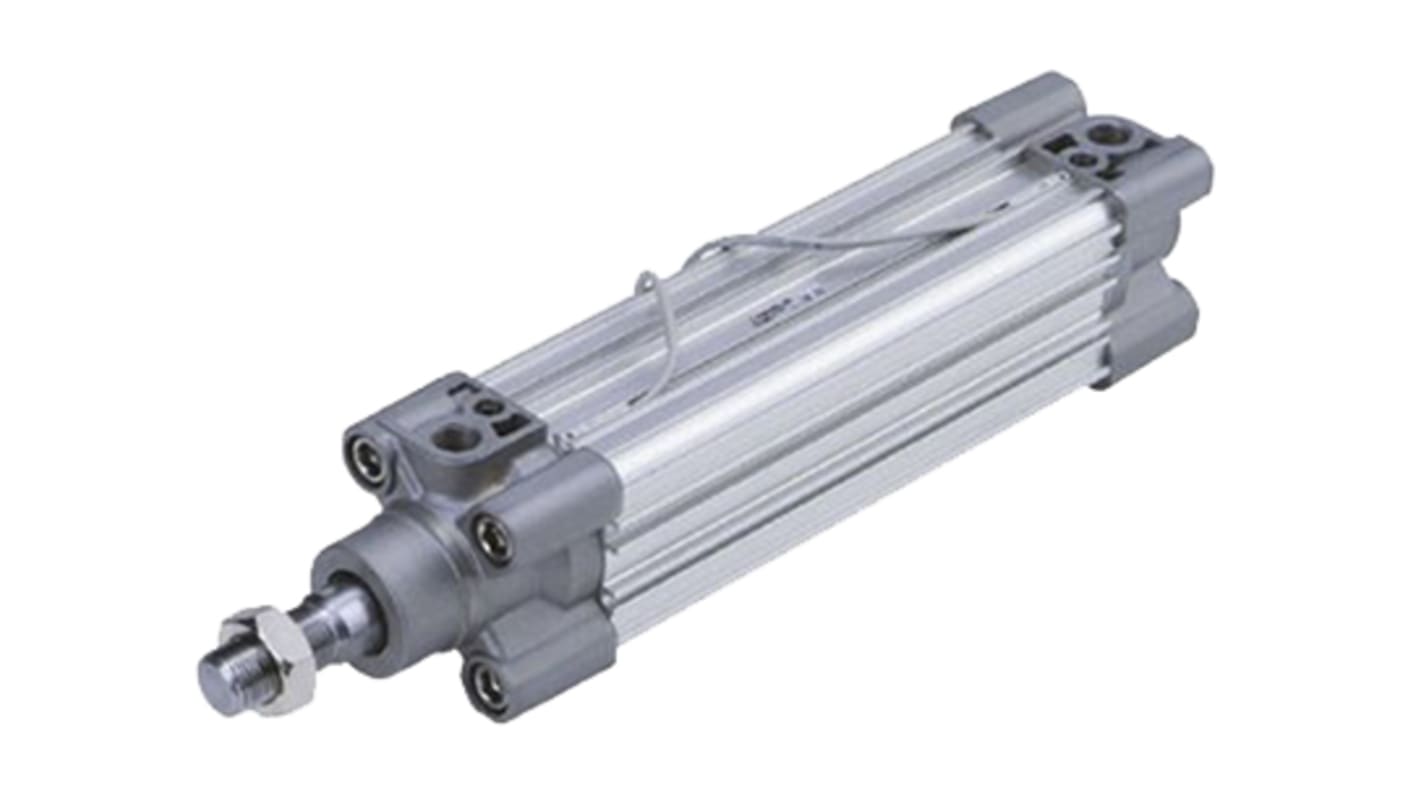

SMC Pneumatic Piston Rod Cylinder - 32mm Bore, 500mm Stroke, CP96 Series, Double Acting

View this category

Subtotal (1 unit)*

£97.59

(exc. VAT)

£117.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 4 unit(s) shipping from 27 October 2025
  • Plus 1 unit(s) shipping from 27 October 2025
  • Plus 8 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£97.59

*price indicative

RS Stock No.:
916-6755
Mfr. Part No.:
CP96SDB32-500C
Brand:
SMC
Find similar products by selecting one or more attributes.
Select all

Brand

SMC

Manufacturer Series

CP96

Bore

32mm

Action

Double

Stroke

500mm

Port Connection

G 1/8

Cushioning Type

Air

Dimensions

646 x 47 x 47mm

Height

47mm

Length

646mm

Width

47mm

Maximum Operating Pressure

1 MPa

Absolute Maximum Pressure

1.5MPa

ISO Standard

4414

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

Weight

2.2kg

Stroke Interval Weight

0.14 kg @ 50 mm Stroke

Non Compliant

CP96-C Double Acting Cylinder


The SMC CP96-C series double-acting pneumatic cylinders feature both air and bumper cushioning. Using both air and bumper cushioning reduces the length of the cushion stroke reducing cycle time and the noise at the end of the stroke. CP96-C cylinder bodies are grooved on four sides to allow the easy fitting of CNOMO or SMC M9 and A9 position sensors. Sensors can simply be slid into position from either end of the profile actuator body.


CP96 Series
