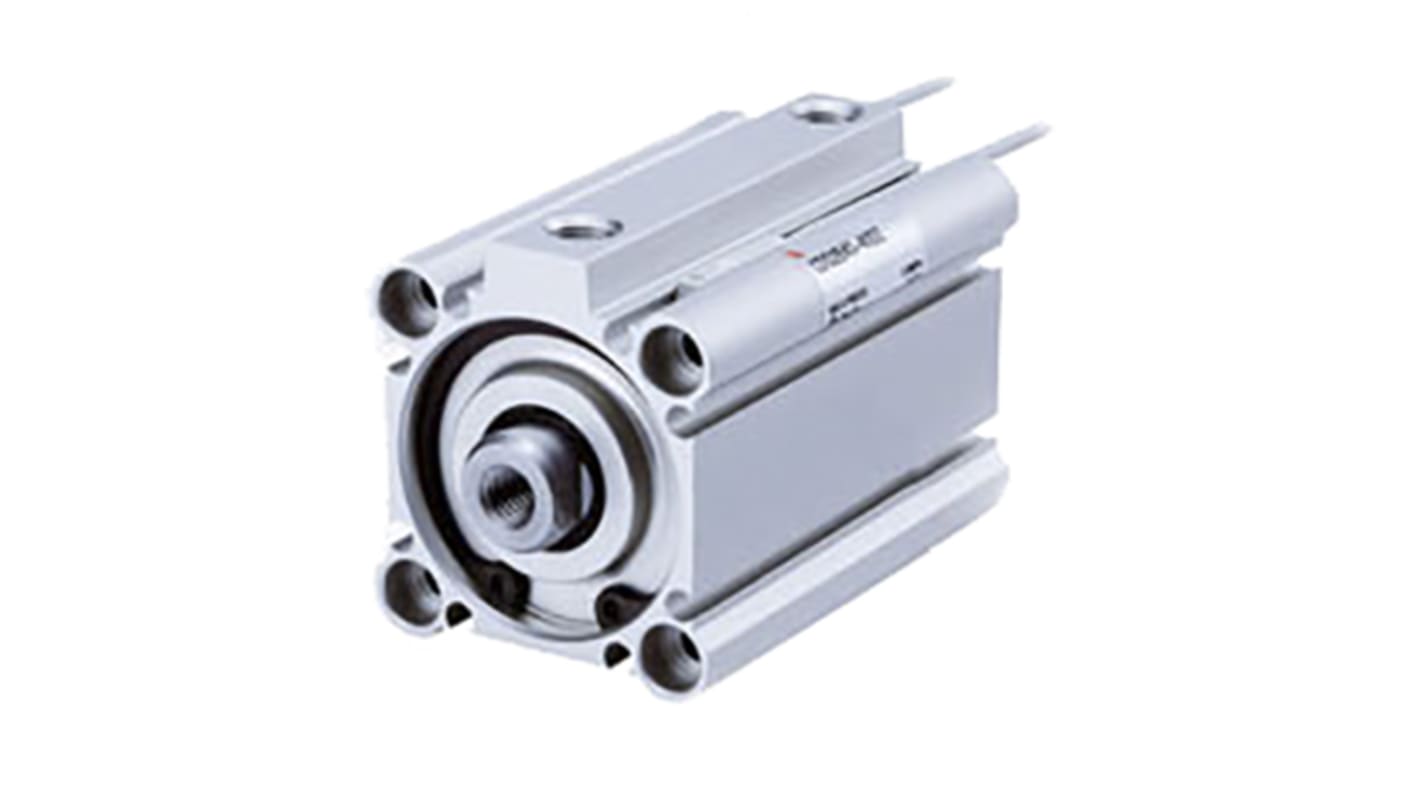

SMC Pneumatic Compact Cylinder - 32mm Bore, 5mm Stroke, Double Acting
- RS Stock No.:
- 885-2193
- Mfr. Part No.:
- CDQ2B32TF-5DZ
- Brand:
- SMC
Bulk discount available
Subtotal (1 unit)*
£46.12
(exc. VAT)
£55.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £46.12 |
5 + | £43.40 |
*price indicative
- RS Stock No.:
- 885-2193
- Mfr. Part No.:
- CDQ2B32TF-5DZ
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Action | Double | |
Stroke | 5mm | |
Bore | 32mm | |
Port Connection | G 1/8 | |
Cushioning Type | Not Cushioned | |
Dimensions | 35 x 49.5 x 45mm | |
Height | 45mm | |
Width | 49.5mm | |
Length | 35mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Minimum Operating Temperature | -10°C | |
Weight | 182g | |
Maximum Operating Temperature | +60°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Action Double | ||
Stroke 5mm | ||
Bore 32mm | ||
Port Connection G 1/8 | ||
Cushioning Type Not Cushioned | ||
Dimensions 35 x 49.5 x 45mm | ||
Height 45mm | ||
Width 49.5mm | ||
Length 35mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Minimum Operating Temperature -10°C | ||
Weight 182g | ||
Maximum Operating Temperature +60°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
SMC CDQ-Z Compact Cylinder
SMC have improved there already excellent CQ2 range of compact pneumatic cylinders. The CQ2-Z series of this popular range of compact actuators has an entirely redesigned body that is 5-13% lighter than the original and increased auto switch mounting options. Integrated auto switch channels designed for the dual colour solid state switches reduces the risk of damage during installation and maintenance. Available in bore sizes 32 to 63mm and 5, 10, 15 and 75mm stroke options.
SMC CDQ Series
