SMC Pneumatic Piston Rod Cylinder - 50mm Bore, 50mm Stroke, CDG1 Series, Double Acting
- RS Stock No.:
- 863-3998
- Mfr. Part No.:
- CDG1BN50-50Z
- Brand:
- SMC
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 863-3998
- Mfr. Part No.:
- CDG1BN50-50Z
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CDG1 | |
Stroke | 50mm | |
Bore | 50mm | |
Action | Double | |
Port Connection | R 1/4 | |
Cushioning Type | Rubber Bumper | |
Dimensions | 55 (Dia.) x 200mm | |
Height | 200mm | |
Diameter | 55mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 1 MPa | |
Maximum Operating Temperature | 60°C | |
Minimum Operating Temperature | -10°C | |
Weight | 1.8kg | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CDG1 | ||
Stroke 50mm | ||
Bore 50mm | ||
Action Double | ||
Port Connection R 1/4 | ||
Cushioning Type Rubber Bumper | ||
Dimensions 55 (Dia.) x 200mm | ||
Height 200mm | ||
Diameter 55mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 1 MPa | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -10°C | ||
Weight 1.8kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

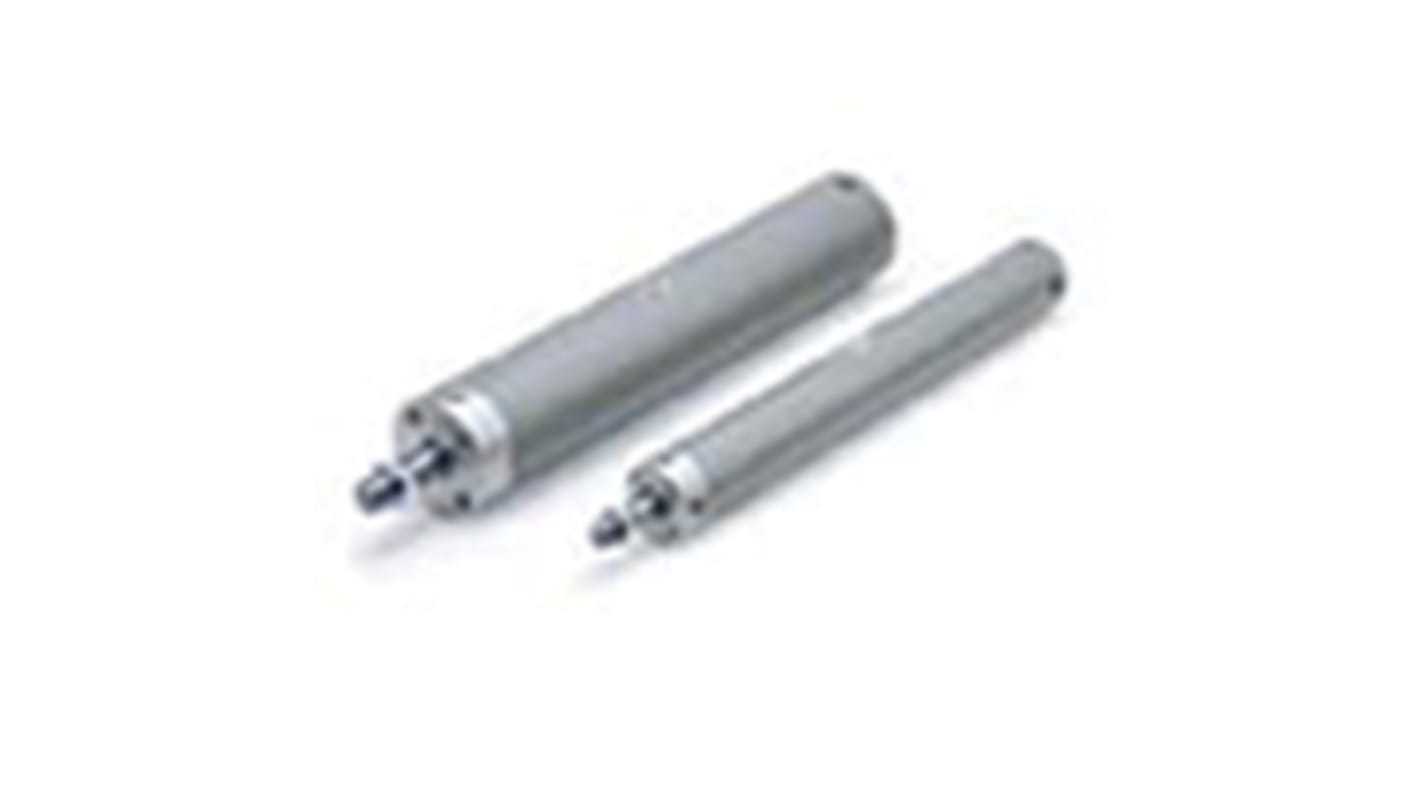

CG1 Air Cylinder
The CG1 series from SMC are precision air cylinders which have various bore sizes to meet the any application need. These cylinders allow low break away pressure, smooth stroke action, has auto switch capability and multiple mounting options.
Air Cylinder, Double Acting, Single Rod
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
Built-in magnet
Proof pressure: 1.5 MPa
Maximum operating pressure: 1.0 MPa
Minimum operating pressure: 0.05 MPa
Cushion: Rubber bumper
