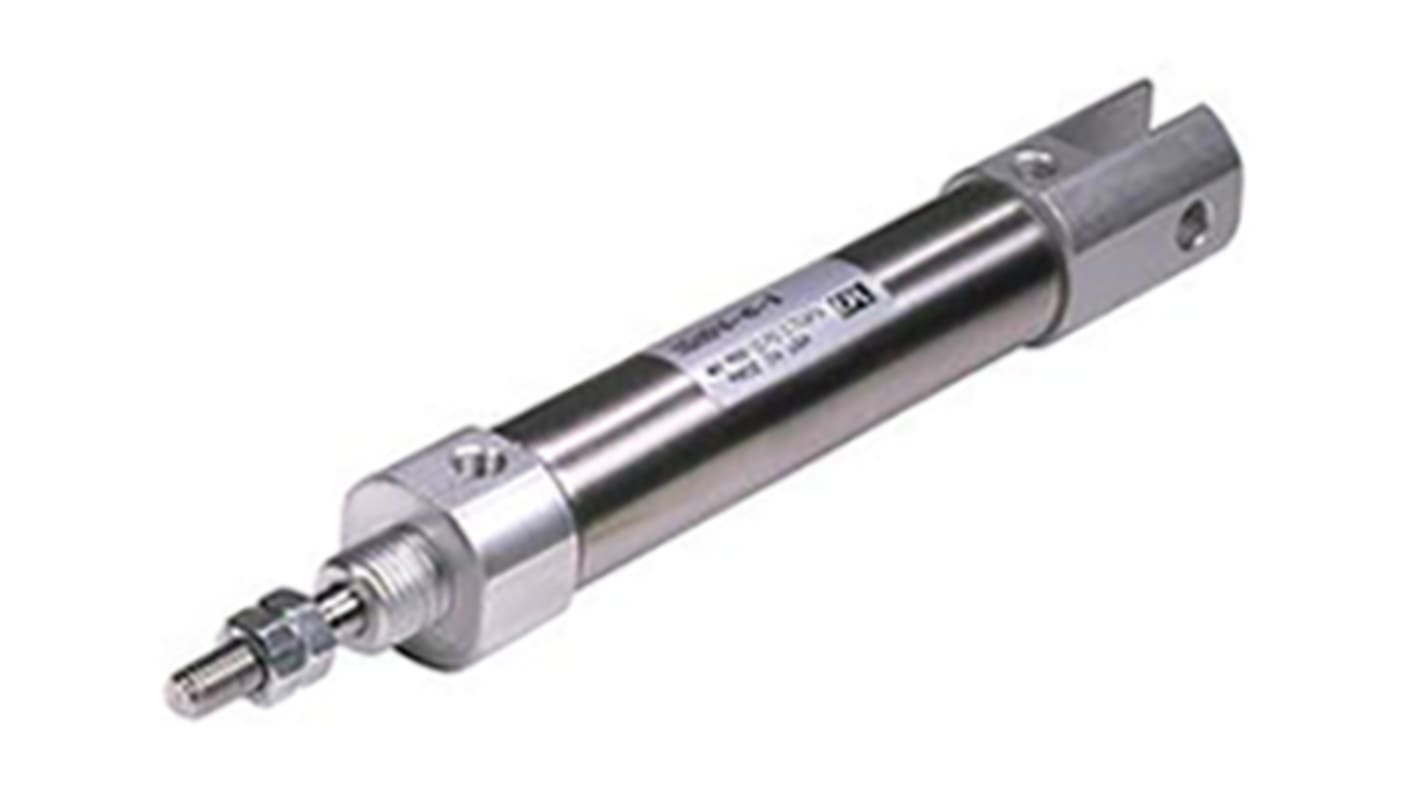

SMC Pneumatic Piston Rod Cylinder - 16mm Bore, 45mm Stroke, CJ2 Series, Double Acting
- RS Stock No.:
- 849-7461
- Mfr. Part No.:
- CJ2B16-45Z
- Brand:
- SMC
3 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Price Each
£36.22
(exc. VAT)
£43.46
(inc. VAT)
Units | Per unit |
|---|---|
| 1 - 4 | £36.22 |
| 5 - 9 | £34.76 |
| 10 + | £33.33 |
- RS Stock No.:
- 849-7461
- Mfr. Part No.:
- CJ2B16-45Z
- Brand:
- SMC
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- CN
Product Details
SMC CJ2B Series Double Acting Cylinder
SMC CJ2B Double Acting Cylinder range are robust & reliable and provide the user with a comprehensive range of options to ensure your application is covered.
Spring return options available
High speed and accuracy mounting
Compact and lightweight suiting for more space-restricted applications
Auto switching option available
Non-rotational piston rod variant available
High speed and accuracy mounting
Compact and lightweight suiting for more space-restricted applications
Auto switching option available
Non-rotational piston rod variant available
SMC CJ2B Series Double Acting Cylinder
Specifications
Attribute | Value |
|---|---|
| Stroke | 45mm |
| Bore | 16mm |
| Action | Double |
| Manufacturer Series | CJ2 |
| Length | 120mm |
| Cushioning Type | Rubber Bumper |
| Dimensions | 120 x 18.3 x 18.3mm |
| Width | 18.3mm |
| Absolute Maximum Pressure | 1MPa |
| Maximum Operating Pressure | 0.7 MPa |
| Height | 18.3mm |
| Stroke Interval Weight | 6.5 g |
| Minimum Operating Temperature | -10°C |
| Weight | 92.1g |
| Diameter | 20mm |
| Maximum Operating Temperature | +70°C |
